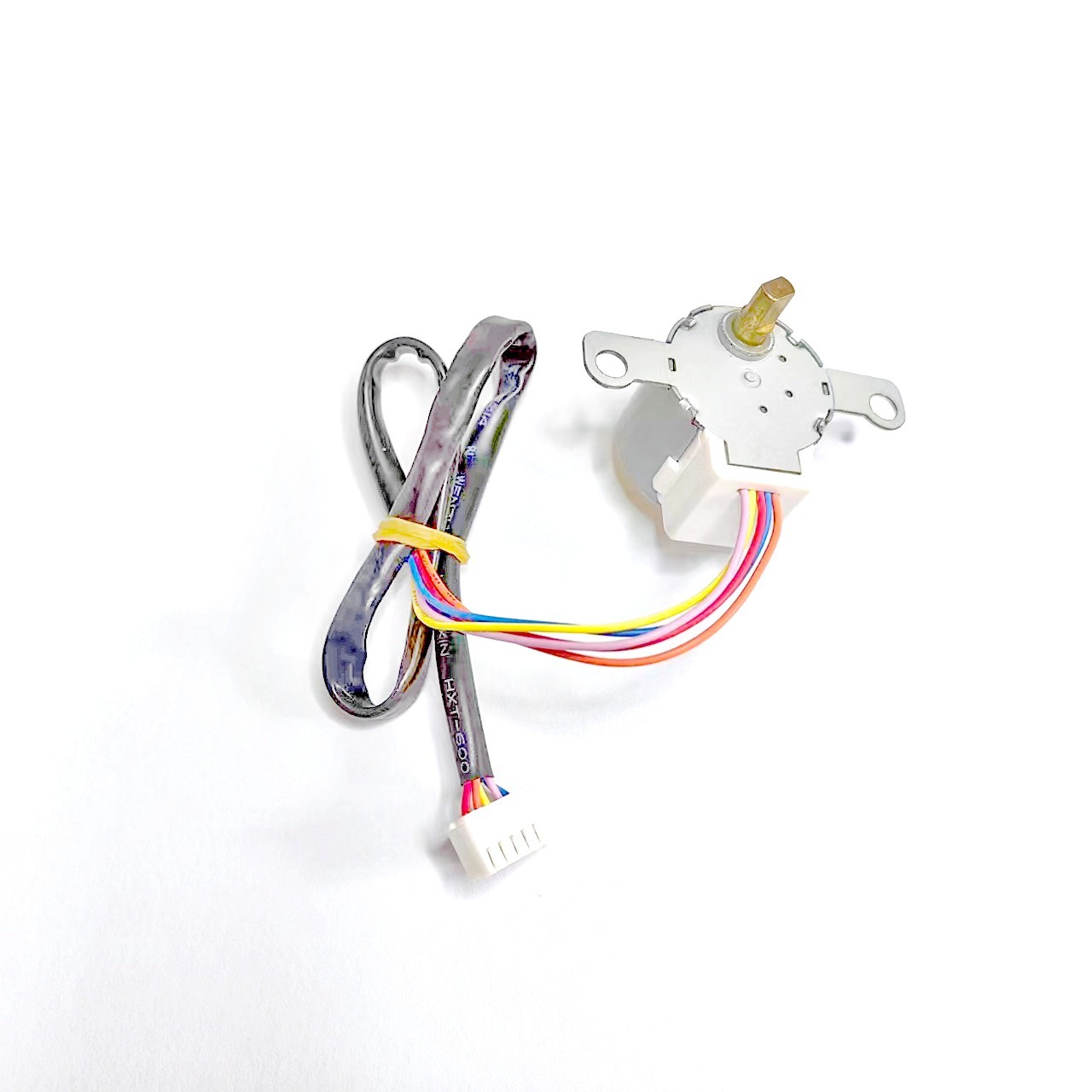

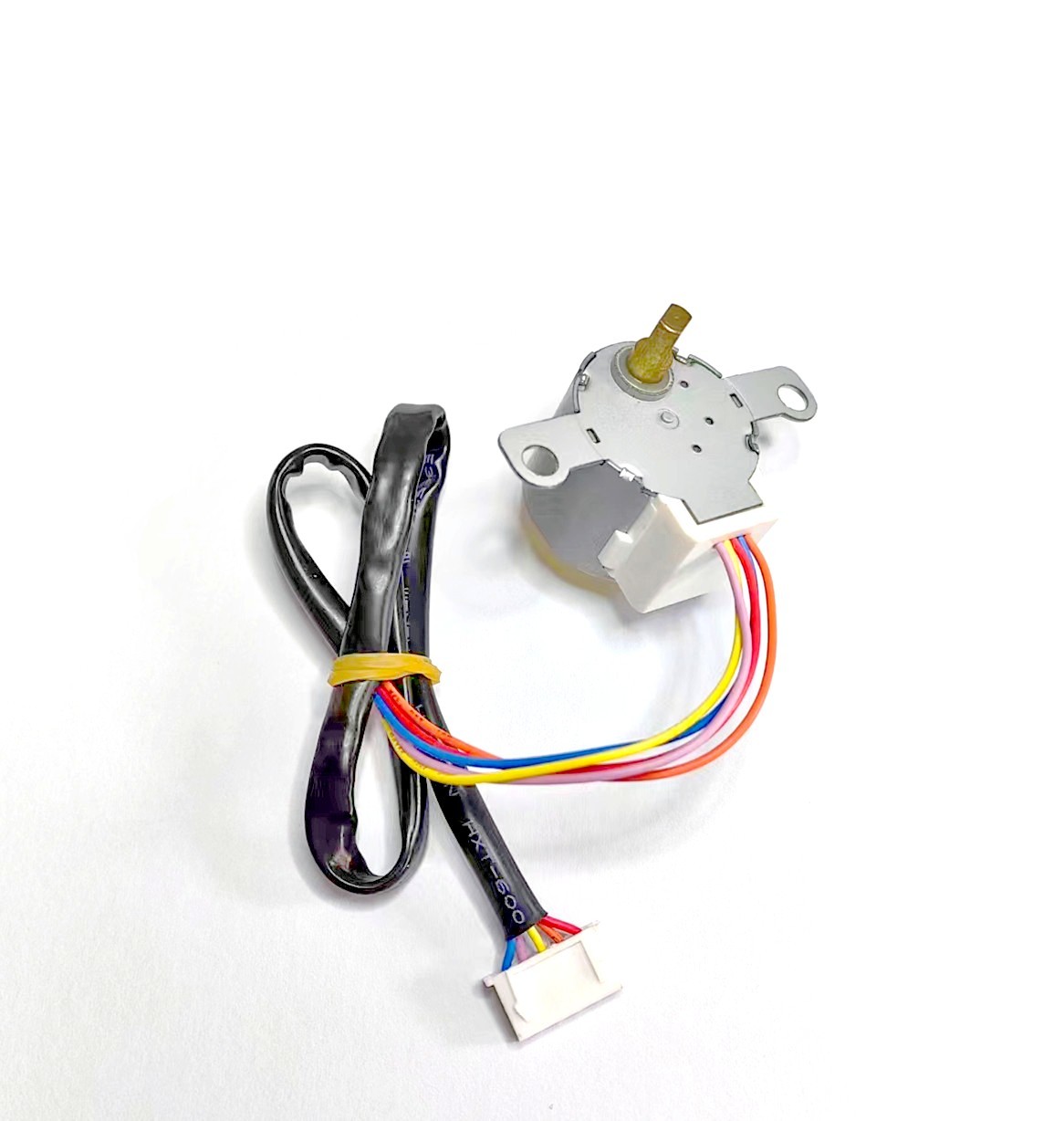

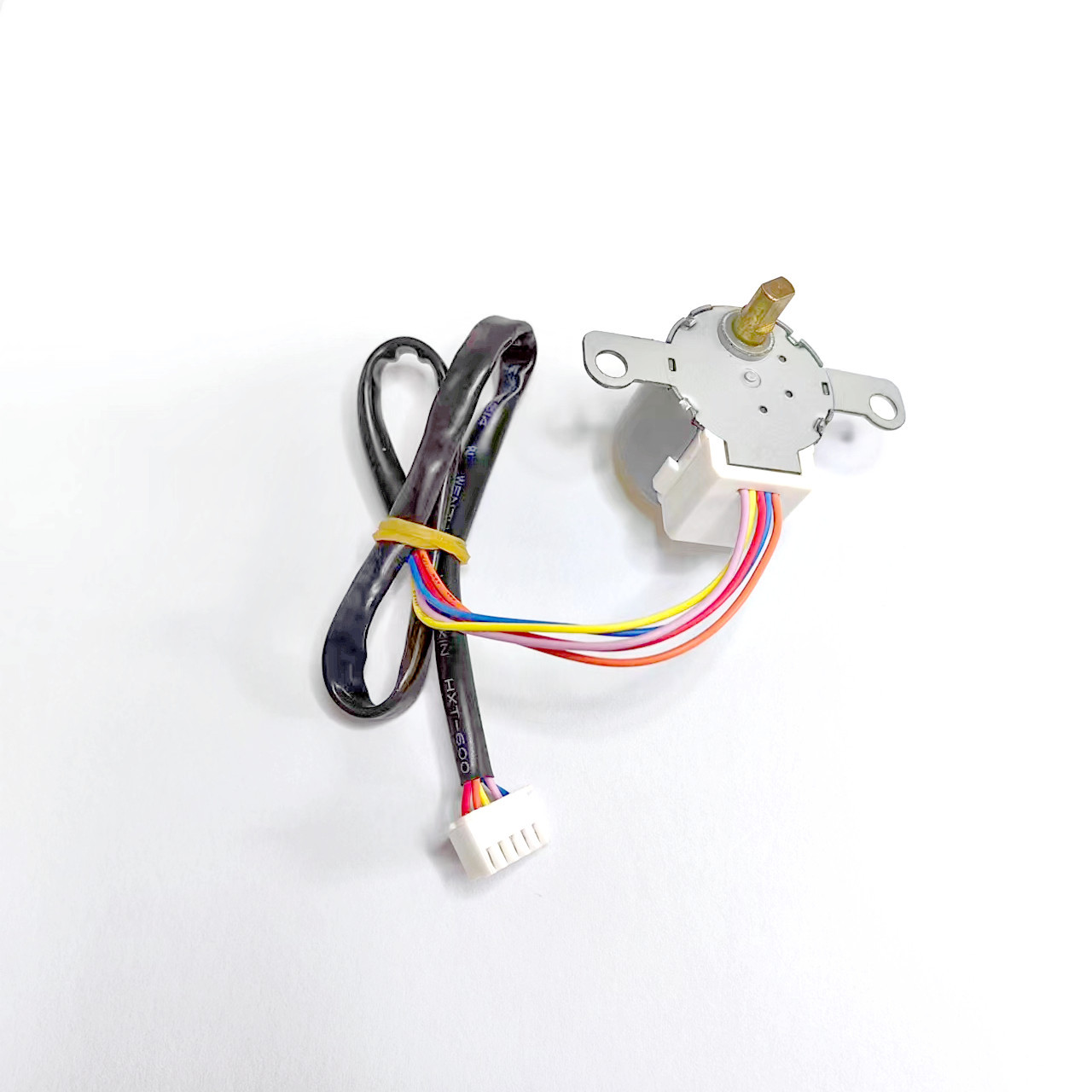

24mm 5 Wire Stepper Motor 24BYJ48 12V For Air Conditioner Reduction Ratio
24mm 5 Wire Stepper Motor 24BYJ48 12V For Air Conditioner Reduction Ratio
24mm 5 Wire Stepper Motor 24BYJ48 12V For Air Conditioner Reduction Ratio
24mm 5 Wire Stepper Motor 24BYJ48 12V For Air Conditioner Reduction Ratio
24mm 5 Wire Stepper Motor 24BYJ48 12V For Air Conditioner Reduction Ratio
24mm 5 Wire Stepper Motor 24BYJ48 12V For Air Conditioner Reduction Ratio
Specifications
Brand Name :
WEIGU
Model Number :
24BYJ48
Certification :
RoHS
Place of Origin :
China
MOQ :
1
Price :
$0.75~2/unit
Payment Terms :
T/T,D/P,Western Union,MoneyGram
Supply Ability :
100000Units/month
Delivery Time :
7-30 work days
Packaging Details :
Standard export package, or can be customized
Type :
Stepper Reduction Motor
Phase No. :
4 Phases
Rated Voltage :
12V
Gear Ratio :
1/64
Step Angle :
5.625
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

24mm 24BYJ48 12V geared reducer stepping motor for Air conditioner 1:64 Reduction ratio

This 24mm permanent magnet stepper motor includes a gearbox with adjustable ratios. As a unipolar 4-phase, 5-wire motor, it delivers reliable precision.​
Key : extensive customization. Choose gear ratios (16:1 to 64:1), coil resistance, phase number, or connectors to fit your needs. It integrates easily into DIY projects or industrial setups.​
Compact at 24mm, its permanent magnet design ensures consistent torque and smooth operation. Ideal for standard or custom configurations.

Customization options:

Model No.: 24BYJ48

Step angle:(1-2phase driving) 5.625°/64; (2-2 phase driving) 11.25°/step

Gear ratio: 64:1

Customizable items:

Voltage:12V; gear ratio, gear material, output shaft, motor’s cap design customizable

Voltage

(V)

Resistance

(Ω)

Pull-in torque

100PPS

(mN*m)

Detent Torque

(mN*m)

Unload pull-in

Frequency

(PPS)
12 60 ≥117 ≥29.4 ≥500
12 70 ≥68.7 ≥29.4 ≥500
12 200 ≥68.7 ≥29.4 ≥500

Design drawing(Unit:mm)

24mm 5 Wire Stepper Motor 24BYJ48 12V For Air Conditioner Reduction Ratio

Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.

Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
