Specifications
Brand Name :
WEIGU
Model Number :
24BYJ48
Certification :
RoHS
Place of Origin :
China
MOQ :
1
Price :
$0.75~2/unit
Payment Terms :
T/T,D/P,Western Union,MoneyGram
Supply Ability :
100000Units/month
Delivery Time :
7-30 work days
Packaging Details :
Standard export package, or can be customized
Type :
Gearbox Stepper Motor
Phase No. :
4 Phases
Rated Voltage :
12V
Gear Ratio :
1/64
Step Angle :
5.625
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

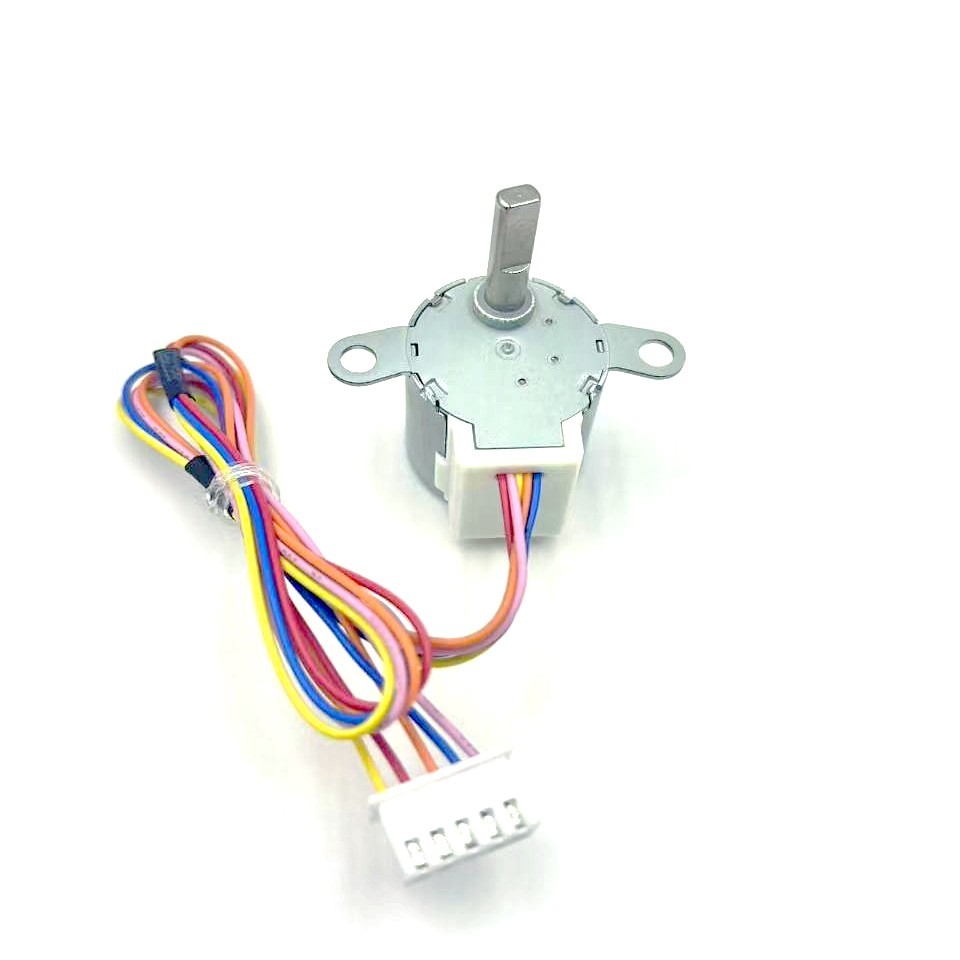

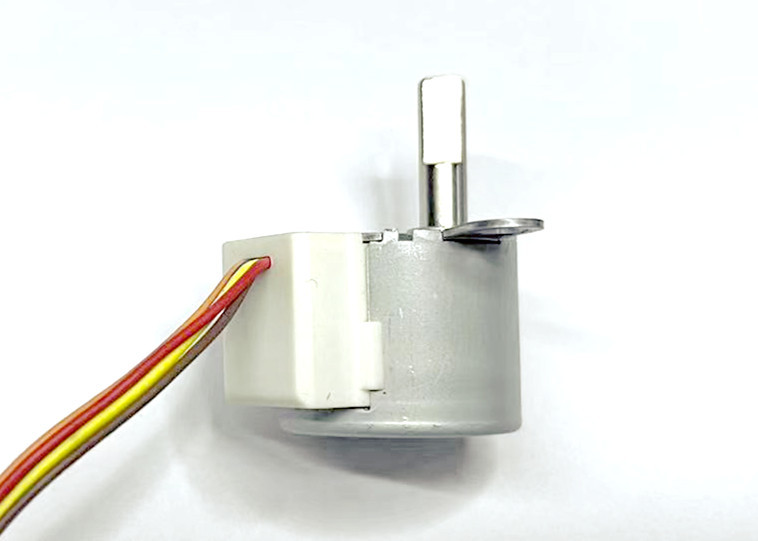

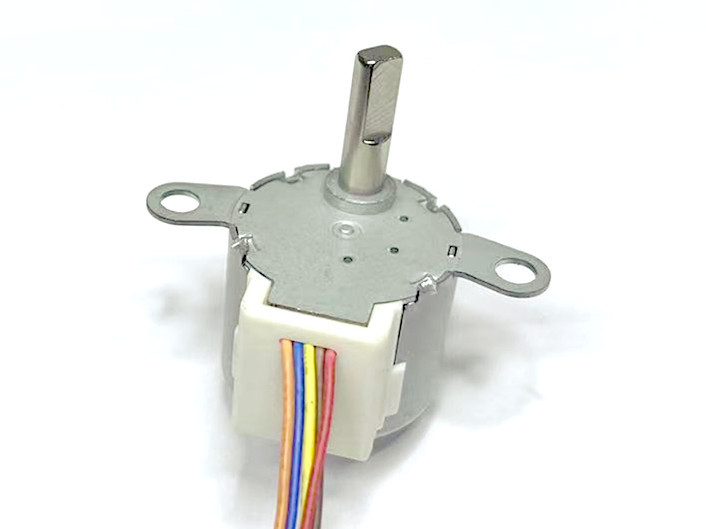

24mm High-Torque 24BYJ48 12V 4 phases 5 wires geared reducer stepping motor for Smart bathroom

This is a 24mm diameter permanent magnet stepper motor with gear ratio gearbox.

This is an uni-polar motor with 4 phases 5wires.

We provide customization service on gear ratio, coil resistance, phase number, and connector types.

Customers can customize motor’s parameter based on specific requirement, we have 16:1 to64:1 gear ratio for option.

Customization options:

Model No.: 24BYJ48

Step angle:(1-2phase driving) 5.625°/64; (2-2 phase driving) 11.25°/step

Gear ratio: 64:1

Customizable items:

Voltage:12V; gear ratio, gear material, output shaft, motor’s cap design customizable

Voltage

(V)

Resistance

(Ω)

Pull-in torque

100PPS

(mN*m)

Detent Torque

(mN*m)

Unload pull-in

Frequency

(PPS)
12 60 ≥117 ≥29.4 ≥500
12 70 ≥68.7 ≥29.4 ≥500
12 200 ≥68.7 ≥29.4 ≥500

Design drawing(Unit:mm)

Coil Resistance 24mm High Torque Stepper Motor 24BYJ48 12V Customization For Smart Bathroom

Technical Features

Application Highlights

HVAC/R Valve Actuation Winding possibilities – Bipolar

Office Automation Printers, Copiers, Data storage Maintenance free - motor is brushless

Medical Applications Pill dispensing Analysers Cost effective - compact design, lower integration cost

Telecommunication Antennae positioning Switching lines Open loop control - No encoders necessary

Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.

Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
