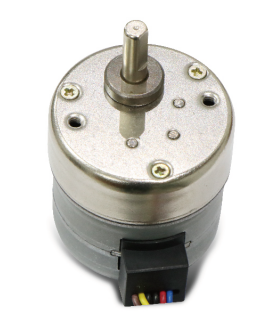

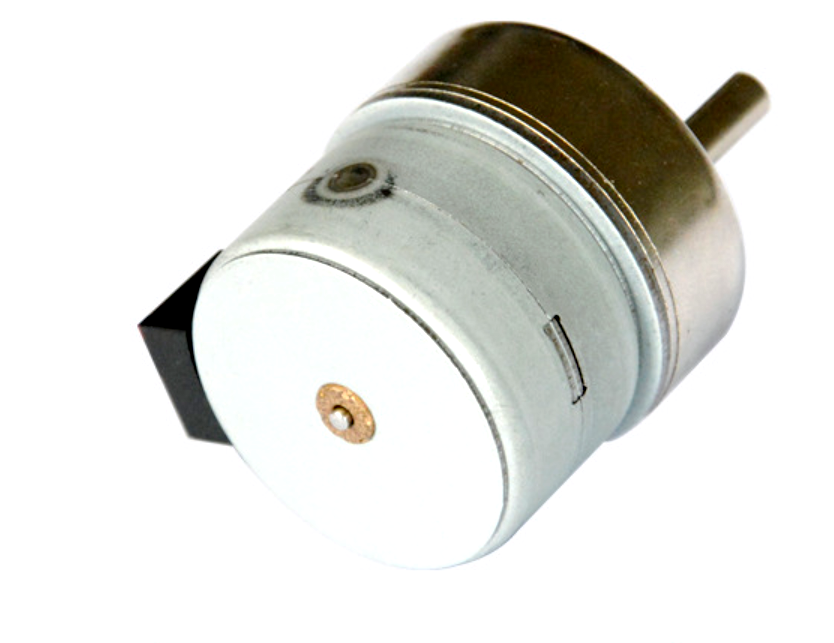

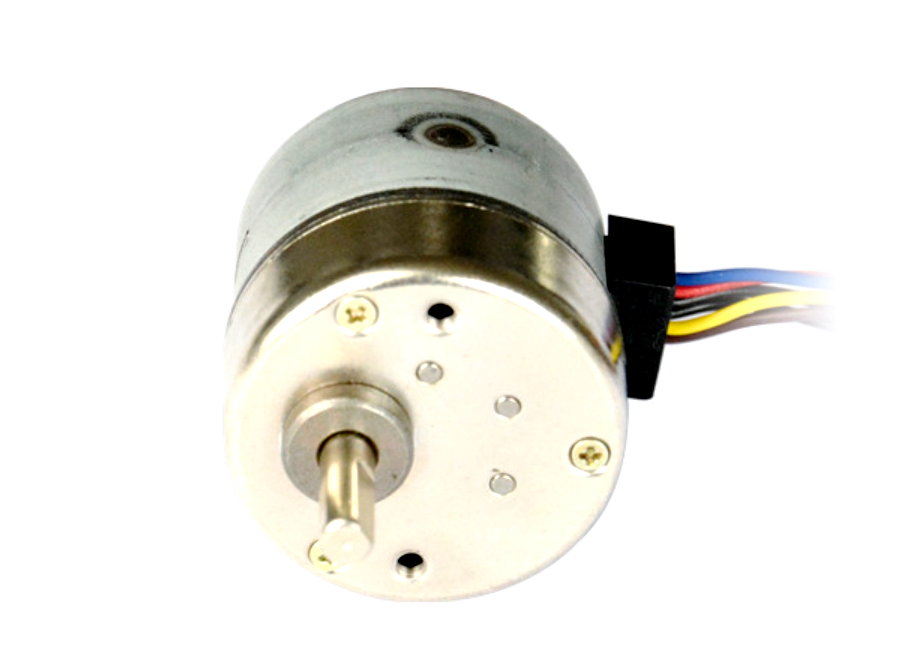

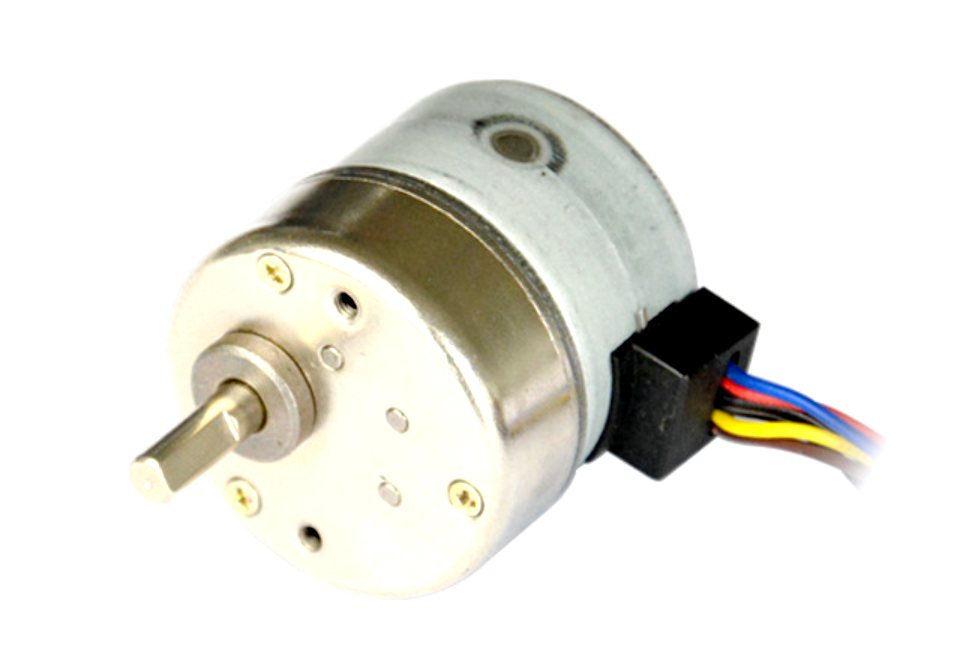

35mm Geared Stepper Motor Low Noise Permanent Magnet Stepper Motor For Precision Automation
35mm Geared Stepper Motor Low Noise Permanent Magnet Stepper Motor For Precision Automation
35mm Geared Stepper Motor Low Noise Permanent Magnet Stepper Motor For Precision Automation
35mm Geared Stepper Motor Low Noise Permanent Magnet Stepper Motor For Precision Automation
35mm Geared Stepper Motor Low Noise Permanent Magnet Stepper Motor For Precision Automation
35mm Geared Stepper Motor Low Noise Permanent Magnet Stepper Motor For Precision Automation
35mm Geared Stepper Motor Low Noise Permanent Magnet Stepper Motor For Precision Automation
35mm Geared Stepper Motor Low Noise Permanent Magnet Stepper Motor For Precision Automation
Specifications
Brand Name :
WEIGU
Model Number :
35BY-11G
Certification :
RoHS
Place of Origin :
China
MOQ :
1unit
Price :
$6~9/unit
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000Units/month
Delivery Time :
7-30 work days
Packaging Details :
Standard export package, or can be customized
Type :
Geared Stepper Motor
Rated Voltage :
12V
Step Angle :
7.5°
Gear Ratio :
1/30
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

35mm Geared Stepper Motor 1:30 Ratio - Low Noise Permanent Magnet for Precision Automation

35mm Geared Stepper Motor with a 1:30 reduction ratio – a high-performance permanent magnet solution engineered for precision automation. Measuring 35mm in frame diameter, this compact yet robust motor fits seamlessly into mid-sized equipment setups, from automated workstations to intricate machinery. The 1:30 gear reduction ratio enhances torque output significantly, ensuring steady, vibration-free motion even when handling moderate loads, while its permanent magnet design delivers consistent power efficiency.​
Designed with low-noise operation as a key feature, it minimizes acoustic interference – critical for environments like laboratory automation, medical device assembly, or office-based precision conveyors. Whether integrated into robotic arms for precise part placement, automated assembly lines requiring tight positional control, or small-scale manufacturing equipment needing reliable speed regulation, this motor stands out. Its ability to maintain accurate step movements and stable stop positions under varying loads makes it a top choice for applications where precision and quiet performance are non-negotiable.​

Specifications

Product Name

Geared stepper motor

Model

35BY-11G

Resistance

100Ω ± 10%/ phase (25℃)

Current Per Phase

100 mA/phase(800PPS)

Max Starting Frequency

500 pps

Max Response Frequency

700 pps

Excitation Method

2-2 phase excitation

Drive Mode

Bipolar drive

Pull-out Thrust

More than 1000g at 100 pps

Insulation Class

Class F for one second

Insulation Strength

100 V AC for one second

Insulation Resistance

50 mΩ DC 500 V

Operating Temperature Range

-0~+ 55 ℃

Mechanical Dimension:MM

35mm Geared Stepper Motor Low Noise Permanent Magnet Stepper Motor For Precision Automation
