15mm Gear Reducer Stepper Motor 15BY45-G Precision Metal Gearbox For Compact Devices
15mm Gear Reducer Stepper Motor 15BY45-G Precision Metal Gearbox For Compact Devices
15mm Gear Reducer Stepper Motor 15BY45-G Precision Metal Gearbox For Compact Devices
15mm Gear Reducer Stepper Motor 15BY45-G Precision Metal Gearbox For Compact Devices
Specifications
Brand Name :
WEIGU
Model Number :
15BY45-G
Certification :
RoHS
Place of Origin :
China
MOQ :
1Unit
Price :
$2.5~5/unit
Payment Terms :
T/T,Western Union,MoneyGram,D/P
Supply Ability :
100000\ Units/year
Delivery Time :
10~30 work days
Packaging Details :
The product is packed with pearl cotton, and the outside is in a carton
Motor Type :
Geared Stepper Motor
Motor Size :
15mm Diameter
Step Angle :
18°/gear Ratio
Driving Voltage :
5V DC
Gear Ratio :
2:1 To 1000:1
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

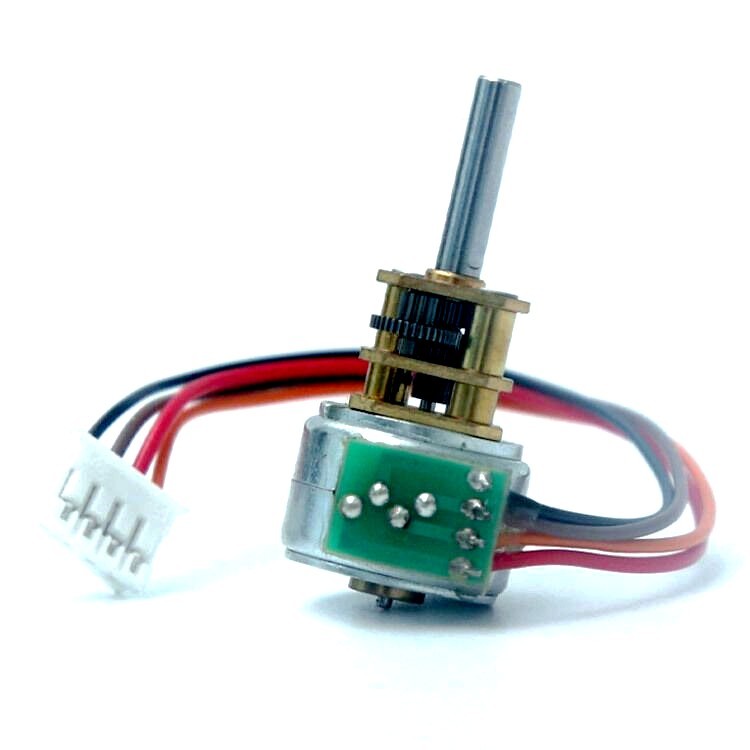

Gear Reduced 15BY45-G Stepper Motor - 15mm, Precision Metal Gearbox for Compact Devices

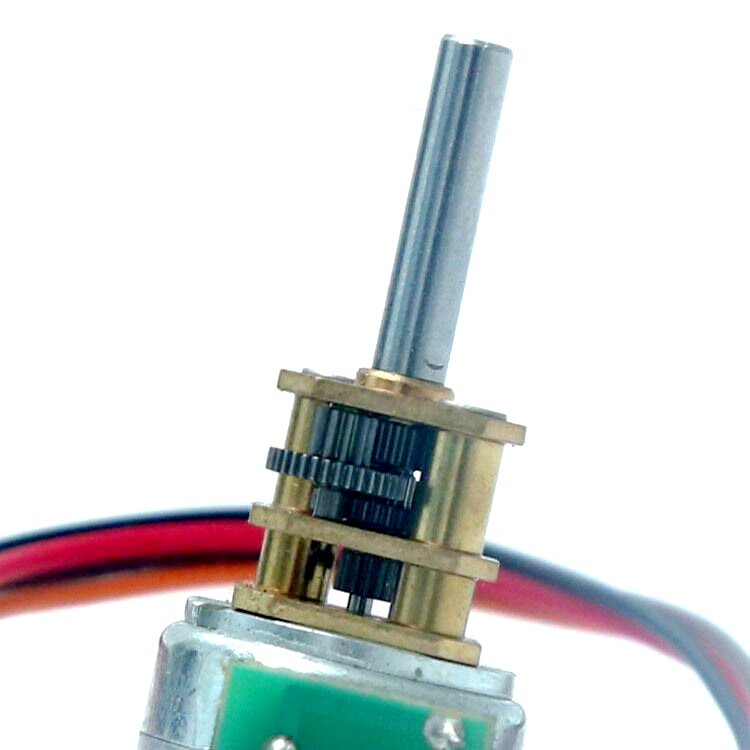

Our 15mm motor, combined with a 12mm×10mm (Length×Width) gearbox, stands out with gear ratios spanning 2:1 to 1000:1—tailored to your speed and torque demands. Opt for higher ratios to get slower output speeds paired with boosted torque, making it a flexible fit for projects of all scales.​
Equipped with a standard plastic case for dust-proofing the gearbox, this motor also offers a case-free option for those needing a sleeker profile. Its compact build, customizable ratios, and adaptable design shine in small robotics, medical devices, and precision tools, ensuring it aligns perfectly with your unique application needs.
Motor Parameters:

Motor type PM stepper motor
Gearbox type 10*12mm gearbox
Phase No. 2 phases
Resistance 10Ω/phase
Rated voltage 5V DC
Step angle 18°/gear ratio
Output shaft 3mm D2.5 D shaft
Connector type Molex 51021-0400 (1.25mm pitch)

Gearbox Parameters:

Gear ratio 2:1 5:1 10:1 15:1 20:1 30:1 36:1 50:1 63:1 67:1 89:1 100:1
Precise ratio 2.002 4.995 9.677 14.754 20.501 29.120 36.122 51.103 63.071 66.801 89.227 99.002
Tooth number 23 20 13 18 15 12 20 20 14 17 14 13
Gear levels 2 2 2 3 3 3 4 4 4 4 4 4
Efficiency 80% 80% 80% 72% 72% 72% 65% 65% 65% 65% 65% 65%
Gear ratio 110:1 150:1 172:1 210:1 250:1 275:1 298:1 380:1 420:1 500:1 600:1 1000:1
Precise ratio 110.407 150.948 171.883 210.591 250.111 274.403 297.924 387.689 421.296 506.155 599.394 986.406
Tooth number 12 18 13 12 13 12 12 12 12 18 16 12
Gear levels 5 5 5 5 5 5 5 5 5 7 7 7
Efficiency 59% 59% 59% 59% 59% 59% 59% 59% 59% 47% 47% 47%

Design drawing

15mm Gear Reducer Stepper Motor 15BY45-G Precision Metal Gearbox For Compact Devices
