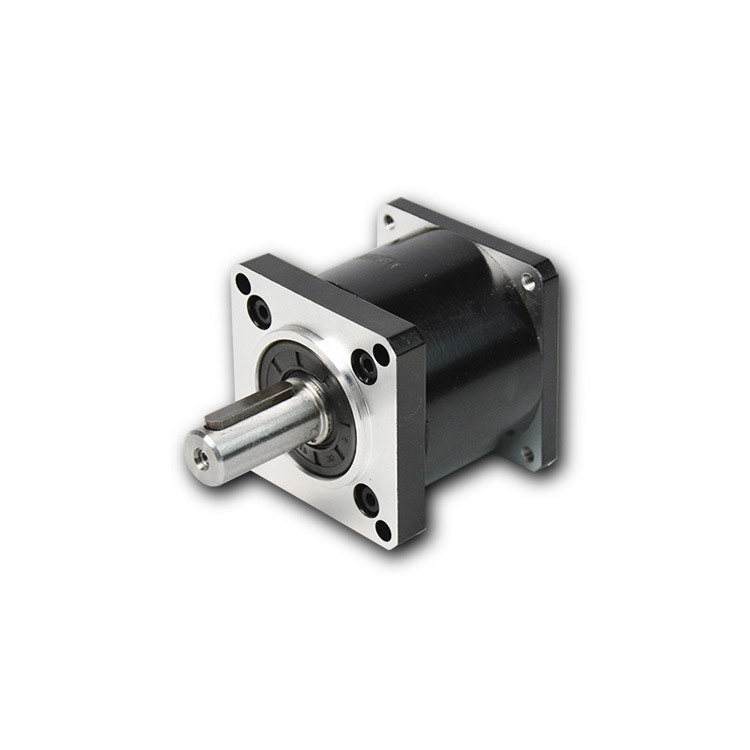

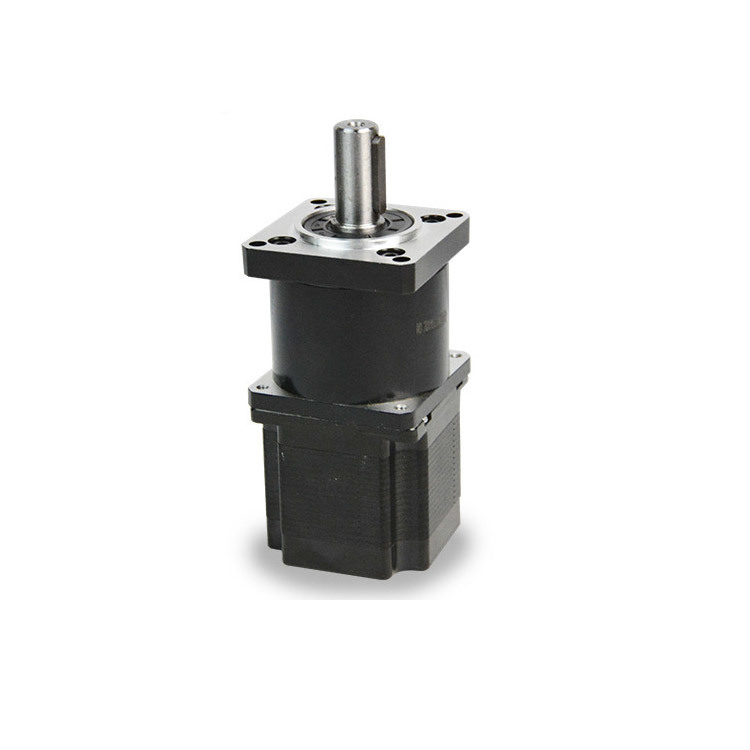

Nema23 57mm Geared Servo Motor High Torque 1.8° Step Angle 2 Phase Planetary Gearbox
Nema23 57mm Geared Servo Motor High Torque 1.8° Step Angle 2 Phase Planetary Gearbox
Nema23 57mm Geared Servo Motor High Torque 1.8° Step Angle 2 Phase Planetary Gearbox
Nema23 57mm Geared Servo Motor High Torque 1.8° Step Angle 2 Phase Planetary Gearbox
Specifications
Brand Name :
WEIGU
Model Number :
57BYGH-G
Certification :
RoHS
Place of Origin :
China
MOQ :
1unit
Price :
$50~110/unit
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000Units/month
Delivery Time :
7-30 work days
Packaging Details :
Standard export package, or can be customized
Type :
Gearbox Stepper Motor
Rated Voltage :
5-24V
Step Angle :
1.8°
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

57BYGH product is a hybrid stepping motor with a square size of 57*41. The length may be adjusted according to the requirements of power, etc., and the range is generally between 41~112mm. The length of the planetary gear reducer is between 37.8~71.9mm. The gear reduction ratio can be customized according to customer requirements.It can be re-evaluated after special request.
Hybrid stepping motor has the advantages of high control precision, high transmission resolution and large output torque. It is widely used in engraving machines, medical equipment, stage lighting, precision instruments and other fields.
The necessary driving device or control device for the customer can cooperate with the customer for development.
The basic step angle of the motor is 1.8 degrees.
At the same time, we can provide the same size products with a step angle of 0.9 degrees!

Electrical specifications of 2phase step motor:

Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

 Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH N.m No. g.cm g.cm Kg
57BYGH41-2804 1.8 41 2.8 0.7 1.4 0.55 4 250 150 0.47
57BYGH51-2804 1.8 51 2.8 0.83 2.2 1.01 4 300 230 0.59
57BYGH56-2804 1.8 56 2.8 0.9 2.5 1.2 4 350 280 0.68
57BYGH64-2804 1.8 64 2.8 0.8 2.3 1 4 400 300 0.75
57BYGH76-2804 1.8 76 2.8 1.1 3.6 1.89 4 600 440 1.1
57BYGH82-3004 1.8 82 3 1.2 4 2.1 4 1000 600 1.2
57BYGH100-4204 1.8 100 4.2 0.75 3 3 4 1100 700 1.3
57BYGH112-3004 1.8 112 3 1.6 7.5 3 4 1200 800 1.4
57BYGH112-4204 1.8 112 4.2 0.9 3.8 3.1 4 1200 800 1.4

NEMA23 Stepper motor with High Precision Planetary Gearbox Specifications:

Stage one stage two stage three stage
Ratio 3 4 5 8 10 12 16 16 20 25 32 40 64 100 64 80 100 120 125 160 200 256 320 512 1000
Max.input rpm(rpm)6 6000 6000 6000
Max.radial load(N) 550 550 550
Max.shaft axial load(N) 500 500 500
efficiency(%) 96 94 90
Backlash arcmin(arcmin) ≤8 ≤10 ≤12
Noise(dB) ≤60 ≤60 ≤60
Weight(kg) 3.2 3.9 4.8
Average useful life(h) ＞10000 ＞10000 ＞10000
Lubricating system long-term long-term long-term
Rotation direct input/output syntropy input/output syntropy input/output syntropy

Mechanical Dimension:MM
