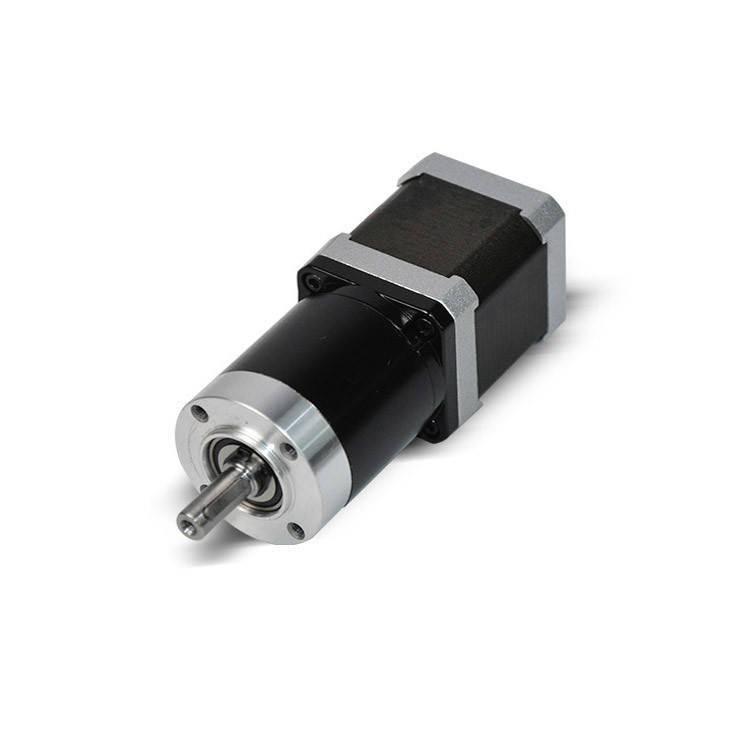

Nema17 42mm Geared Stepper Motor 1.8° Step Angle High Torque Stepper Motor 2 Phase
Nema17 42mm Geared Stepper Motor 1.8° Step Angle High Torque Stepper Motor 2 Phase
Specifications
Brand Name :
WEIGU
Model Number :
42BYGH-G
Certification :
RoHS
Place of Origin :
China
MOQ :
1unit
Price :
$18~28/unit
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000Units/month
Delivery Time :
7-30 work days
Packaging Details :
Standard export package, or can be customized
Type :
Gearbox Stepper Motor
Rated Voltage :
5-24V
Gear Ratio :
1:3.7~139
Step Angle :
1.8°
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

Nema17 42mm Geared Stepper Motor High Torque 1.8° Step Angle 2 Phase Planetary Gearbox

42BYGH product is a hybrid stepping motor with a square size of 42*34. The length may be adjusted according to the requirements of power, etc., and the range is generally between 34~60mm. The length of the planetary gear reducer is between 27~45mm. The gear reduction ratio can be customized according to customer requirements.It can be re-evaluated after special request.
Hybrid stepping motor has the advantages of high control precision, high transmission resolution and large output torque. It is widely used in engraving machines, medical equipment, stage lighting, precision instruments and other fields.
The necessary driving device or control device for the customer can cooperate with the customer for development.
The basic step angle of the motor is 1.8 degrees.
At the same time, we can provide the same size products with a step angle of 0.9 degrees!

Genaral Specification:

PRODUCT NAME

NEMA 17 gearbox stepper motor

MODEL

42BYGH34-G

GEAR RATIO

1:3.7~139

NO.OF PHASES

2 PHASES

STEP ANGLE

18°/STEP

COIL RESISTANCE

10Ω±10%

PHASE INDUCTANCE

12±20% mH

HOLDING TORQUE

1.2 Kg.cm

INSULATION CLASS

B

WEIGHE

0.25KG

OEM & ODM SERVICE

AVAILABLE

Electrical Specification:

Model No.
Step Angle
Motor Length
Current/Phase
Resistance/Phase
Inductance/Phase
Holding Torque
Number of leads
Detent Torque
Rotor Inertia
(°)
(mm)
(A)
(Ω)
(mH)
(kg.cm)
(No.)
(g.cm)
g.cm2
42BYGH25-0404
1.8
25
0.4
24
36
1.8
4
75
20
42BYGH28-0504
1.8
28
0.5
20
21
1.5
4
85
24
42BYGH34-1334
1.8
34
1.33
2.1
2.5
2.2
4
120
34
42BYGH34-0406
1.8
34
0.4
24
15
1.6
6
120
34
42BYGH34-0956
1.8
34
0.95
4.2
2.5
1.6
6
120
34
42BYGH40-0406
1.8
40
0.4
30
30
2.6
6
150
54
42BYGH40-1684
1.8
40
1.68
1.65
3.2
3.6
4
150
54
42BYGH40-1206
1.8
40
1.2
3
2.7
2.9
6
150
54
42BYGH48-0406
1.8
48
0.4
30
25
3.1
6
260
68
42BYGH48-1684
1.8
48
1.68
1.65
2.8
4.4
4
260
68
42BYGH48-1206
1.8
48
1.2
3.3
2.8
3.17
6
260
68
42BYGH60-0406
1.8
60
0.4
30
39
6.5
6
280
102
42BYGH60-1704
1.8
60
1.7
3
6.2
7.3
4
280
102
42BYGH60-1206
1.8
60
1.2
6
7
5.6
6
280
102

Gearbox Ratio Datasheet

Reduction ratio

3.71

5.18

13.76

19.2

26.8

51

71

99.5

139

Number of gear trains

1

2

3

Length(L2) mm

27.3

35

42.7

Max.rated torque kg.cm

20

30

40

Short time permissible torque kg.cm

40

60

80

Weight g

350

450

550

Mechanical Dimension:MM

Nema17 42mm Geared Stepper Motor 1.8° Step Angle High Torque Stepper Motor 2 Phase

Typical Applications:

  • ​Textile Equipment
  • Automatic Control
  • Packing Machine
  • Engineering Vehicle
  • 3D Printer
  • New Energy
  • Gate Openers
  • Vending Machine
  • Conveyor System
  • Medical Equipment
  • Fluid Control
  • OA Financial Equipment
