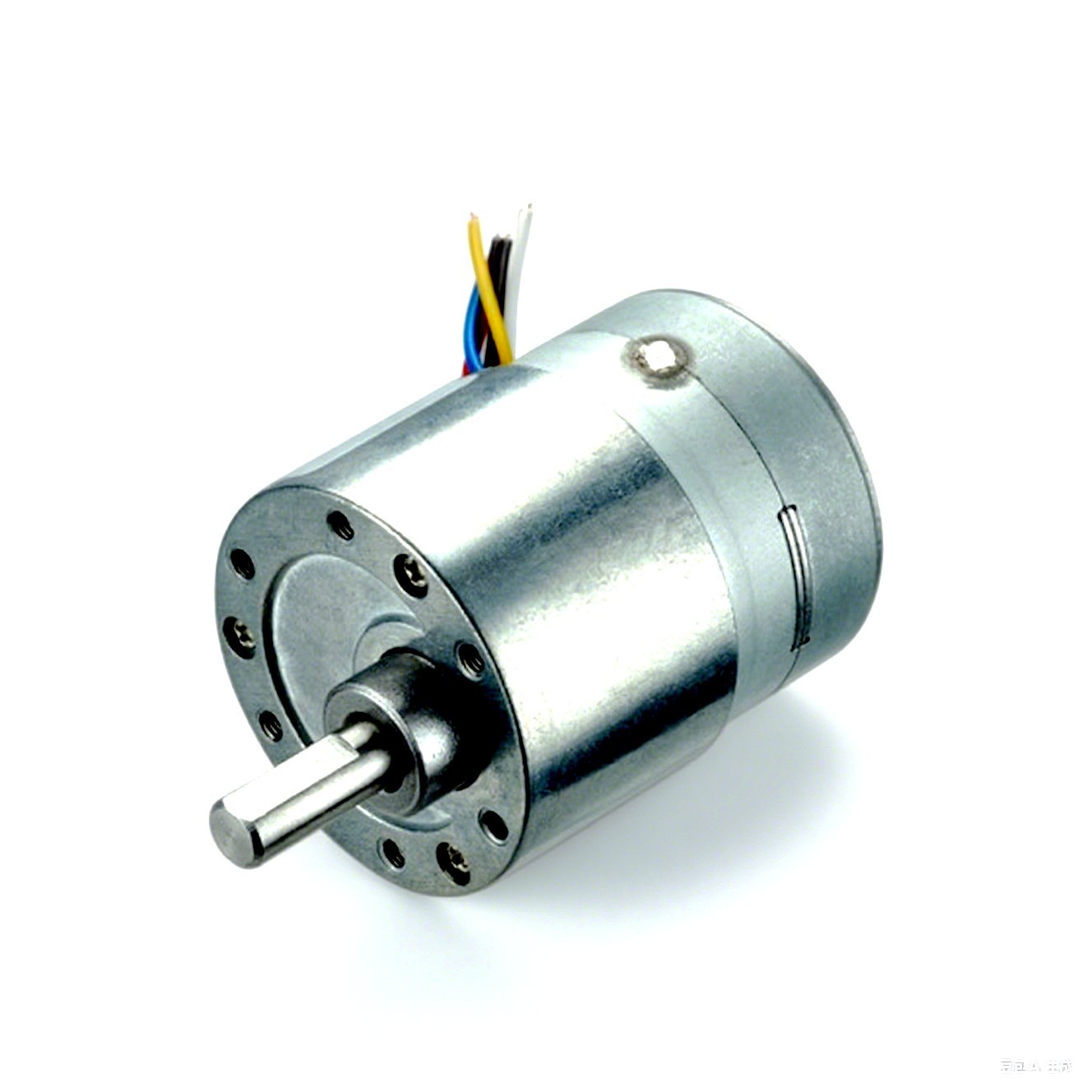

GM37-35BY 35mm Stepper Motor 5 Wire 7.5° Step Angle High Torque For Industrial Automation
GM37-35BY 35mm Stepper Motor 5 Wire 7.5° Step Angle High Torque For Industrial Automation
Specifications
Brand Name :
WEIGU
Model Number :
35BY-88G
Certification :
RoHS
Place of Origin :
China
MOQ :
1unit
Price :
$5~10/unit
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000Units/month
Delivery Time :
7-30 work days
Packaging Details :
Standard export package, or can be customized
Type :
Gearbox Stepper Motor
Rated Voltage :
5-24V
Step Angle :
7.5°
Reduction ratio :
1:6-1:800
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

GM37-35BY 35mm Geared Stepper – 2 Phase 4/5 Wire, 7.5° Step Angle for High Torque Automation

The PM35 reduction stepper motor redefines compact precision. Its 35mm diameter houses a 15mm motor and modular 19–26.5mm gearboxes, adapting to tight spaces in industrial robotics or IoT devices. A 5V - 24V range powers 10–500rpm speeds, with pulse - based control that ignores load changes (no EMI, no overload) for rock - solid stability.
Made with ROHS materials, it’s eco - friendly, low - noise, and torque - customizable—perfect for noise - sensitive environments like dental equipment. The gearbox’s 6–270 reduction ratios fine - tune step angles, amplifying torque for precision tasks (e.g., optical alignment). With a 10,000+ hour motor life and 2,000+ hour gear endurance, plus easy installation, it merges cutting - edge tech with practical durability for modern automation challenges.

Typical Applications

  • Saliva Analyzer
  • Blood Analyzer
  • Welding Machine
  • Intelligent Security Products
  • Fiber Fusion Splicer
  • Digital Electronics

Specifications

Product Name

Geared stepper motor

Model

35BY-88G

Resistance

10.5 Ω ± 10%/ phase (25℃)

reduction ratios

1:50

Current Per Phase

100 mA/phase(800PPS)

Max Starting Frequency

600 pps

Max Response Frequency

800 pps

Excitation Method

2-2 phase excitation

Drive Mode

Bipolar drive

Pull-out torque

More than 300mN.m at 700 pps

Insulation Class

Class E for one second

Insulation Strength

100 V AC for one second

Insulation Resistance

50 mΩ DC 500 V

Operating Temperature Range

-0~+ 55 ℃

Gearbox Ratio Datasheet

Number of Stages

2

3

4

5

6

Gear Ratio

6

19

40

131

500

10

30

50

169

800

90

270

Length of Gearbox(mm)

19

21.5

24

26.5

29

Mechanical Dimension:MM
