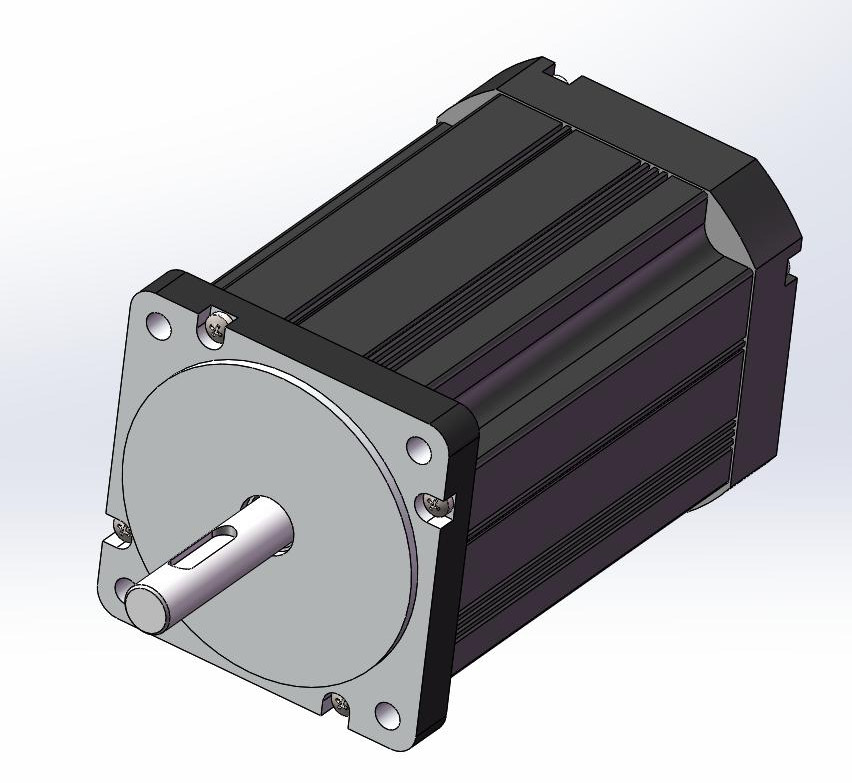

70mm 10 Poles Brushless DC Motor 3000RPM High Torque 24V BLDC Motor IP40
70mm 10 Poles Brushless DC Motor 3000RPM High Torque 24V BLDC Motor IP40
Specifications
Brand Name :
WEIGU
Model Number :
70BLDC
Certification :
RoHS
Place of Origin :
China
MOQ :
1unit
Price :
$30~100/unit
Payment Terms :
,T/T,Western Union,MoneyGram
Supply Ability :
1000Units/month
Delivery Time :
7-30 work days
Packaging Details :
Standard export package, or can be customized
Type :
Brushless DC Motor
Rated Voltage :
12-48V
Winding way :
Star
Insulation Class :
B
Dielectric Strength :
600VDC 2mA 1S
Description

BLDC motors can be controlled, using feedback mechanisms, to delivery precisely the desired torque and rotation speed. Precision control in turn reduces energy consumption and heat generation, and—in cases where motors are battery powered—lengthens the battery life.

General Technical parameters

item

parameter

Product Name

Brushless DC Motor

Winding Type

Star/ Triangle

Shaft diameter range

15mm (max.)

Hall Effect Angle

120°

Insulation Class

B

IP Level

IP40

Insulation Resistance

100MΩ Min.500VC DC

Dielectric Strength

600VAC 1 Minute

Ambient Temperature

-20℃~+50℃

Electrical Specification

Model

70BLDC

Number Of Phases

Phase

3

Number Of Poles

Poles

10

Rated Voltage

VDC

24

24

24

24

Rated Speed

Rpm

3000

3000

3000

3000

Rated Current

A

5.6

10.5

19.7

21

Rated Torque

N.m

0.3

0.6

1.2

1.2

Rated Power

W

95

190

380

380

Peak Torque

N.m

0.7

1.5

3

2.5

Torque Constant

N.m/A

0.054

0.057

0.060

0.057

Back EMF constant

V/kRPM

5.65

5.96

6.28

5.96

Body Length

mm

72

102

102

132

Weight

Kg

1.2

1.7

1.8

2.3

DIMENSIONS(UNIT mm)

70mm 10 Poles Brushless DC Motor 3000RPM High Torque 24V BLDC Motor IP40

The above size is for reference only!

Customizable projects

Projects

Is customization available

Voltage

yes

Speed

yes

Power

yes

Shaft

yes

Cover

yes

Length

yes

wire

yes

control

yes

Optional accessory

70mm 10 Poles Brushless DC Motor 3000RPM High Torque 24V BLDC Motor IP40 70mm 10 Poles Brushless DC Motor 3000RPM High Torque 24V BLDC Motor IP40 70mm 10 Poles Brushless DC Motor 3000RPM High Torque 24V BLDC Motor IP40 70mm 10 Poles Brushless DC Motor 3000RPM High Torque 24V BLDC Motor IP40

Electromagnetic Gear case Encoder Driver

Brake

The method of wire connection

Yellow

(Thick)

Green

(Thick)

Blue

(Thick)

Red

(Thin)

Black

(Thin)

Yellow

(Thin)

Green

(Thin)

Blue

(Thin)

U

V

W

Vcc+5V

GND

Hu

Hv

Hw
