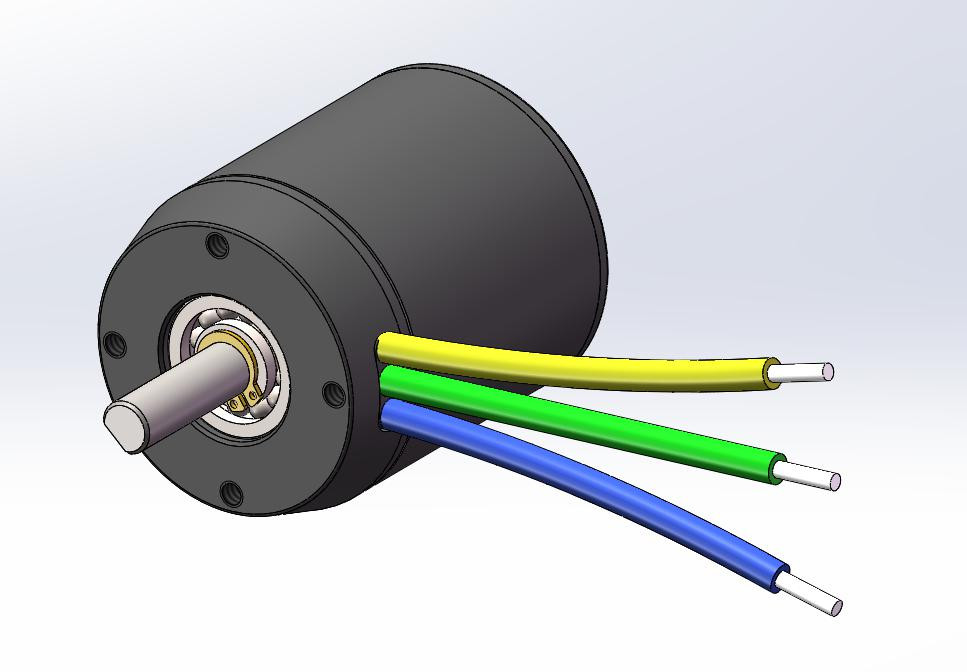

50mm 36V 14 Poles Geared Brushless Motor 3500RPM High Torque External Rotor Motor
50mm 36V 14 Poles Geared Brushless Motor 3500RPM High Torque External Rotor Motor
Specifications
Brand Name :
WEIGU
Model Number :
50BL65
Certification :
RoHS
Place of Origin :
China
MOQ :
1unit
Price :
$20~40/unit
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
5000Units/month
Delivery Time :
7-30 work days
Packaging Details :
Standard export package, or can be customized
Type :
Brushless DC Motor
Rated Voltage :
12-48V
Winding way :
Star
Insulation Class :
B
Dielectric Strength :
600VDC 2mA 1S
Description

BLDC motors can be controlled, using feedback mechanisms, to delivery precisely the desired torque and rotation speed. Precision control in turn reduces energy consumption and heat generation, and—in cases where motors are battery powered—lengthens the battery life.

General Technical parameters

item

parameter

Product Name

Brushless DC Motor

Winding Type

Triangular

Hall Effect Angle

120°

Insulation Class

B

IP Level

IP40

Insulation Resistance

100MΩ Min.500VC DC

Dielectric Strength

600VAC 1 Minute

Ambient Temperature

-20℃~+50℃

Electrical Specification

Model

50BL65

Number Of Phases

Phase

3

Number Of Poles

Poles

14

Rated Voltage

VDC

36

Rated Speed

Rpm

3500

Rated Current

A

19

Rated Torque

N.m

1.5

Rated Power

W

550

Peak Torque

N.m

3.5

Torque Constant

N.m/A

0.079

Back EMF constant

V/kRPM

8

Body Length

mm

65

Weight

Kg

1

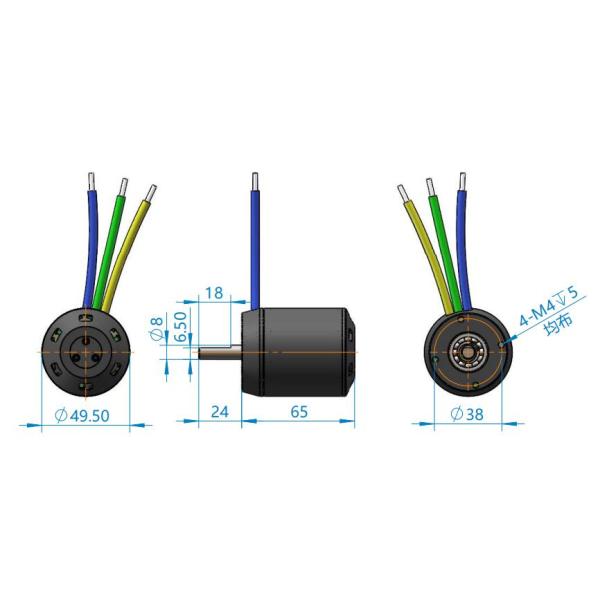

DIMENSIONS(UNIT mm)

50mm 36V 14 Poles Geared Brushless Motor 3500RPM High Torque External Rotor Motor

#The above size is for reference only!

Parameter curve

50mm 36V 14 Poles Geared Brushless Motor 3500RPM High Torque External Rotor Motor

Customizable projects

Projects

Is customization available

Voltage

yes

Speed

yes

Power

yes

Shaft

yes

Cover

yes

Length

yes

wire

yes

control

yes

Optional accessory

50mm 36V 14 Poles Geared Brushless Motor 3500RPM High Torque External Rotor Motor 50mm 36V 14 Poles Geared Brushless Motor 3500RPM High Torque External Rotor Motor

Gear case External drive
