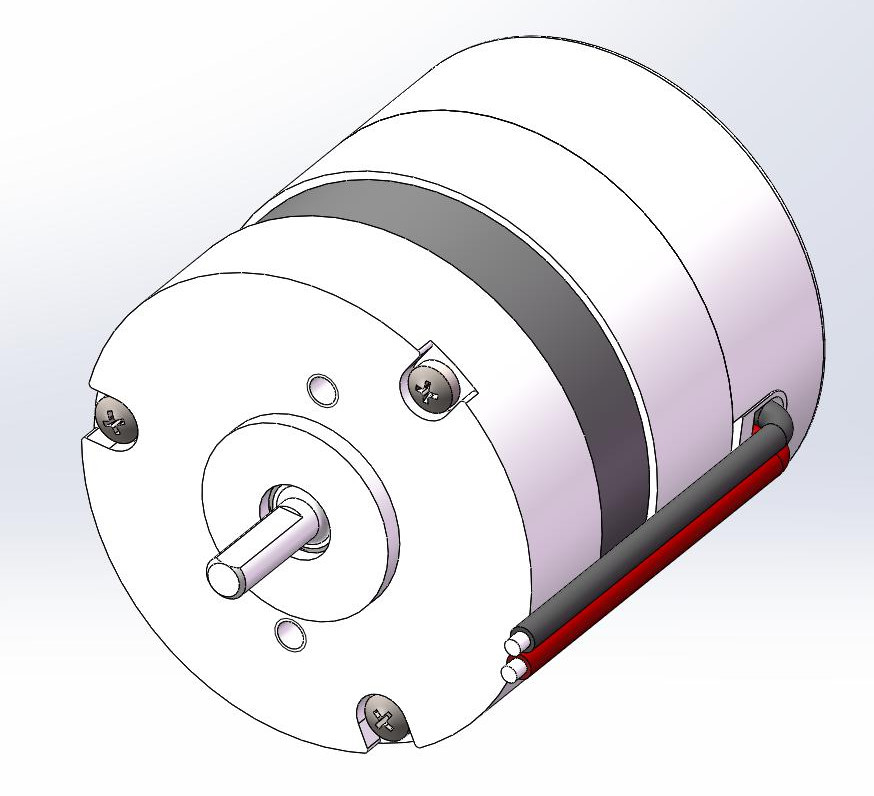

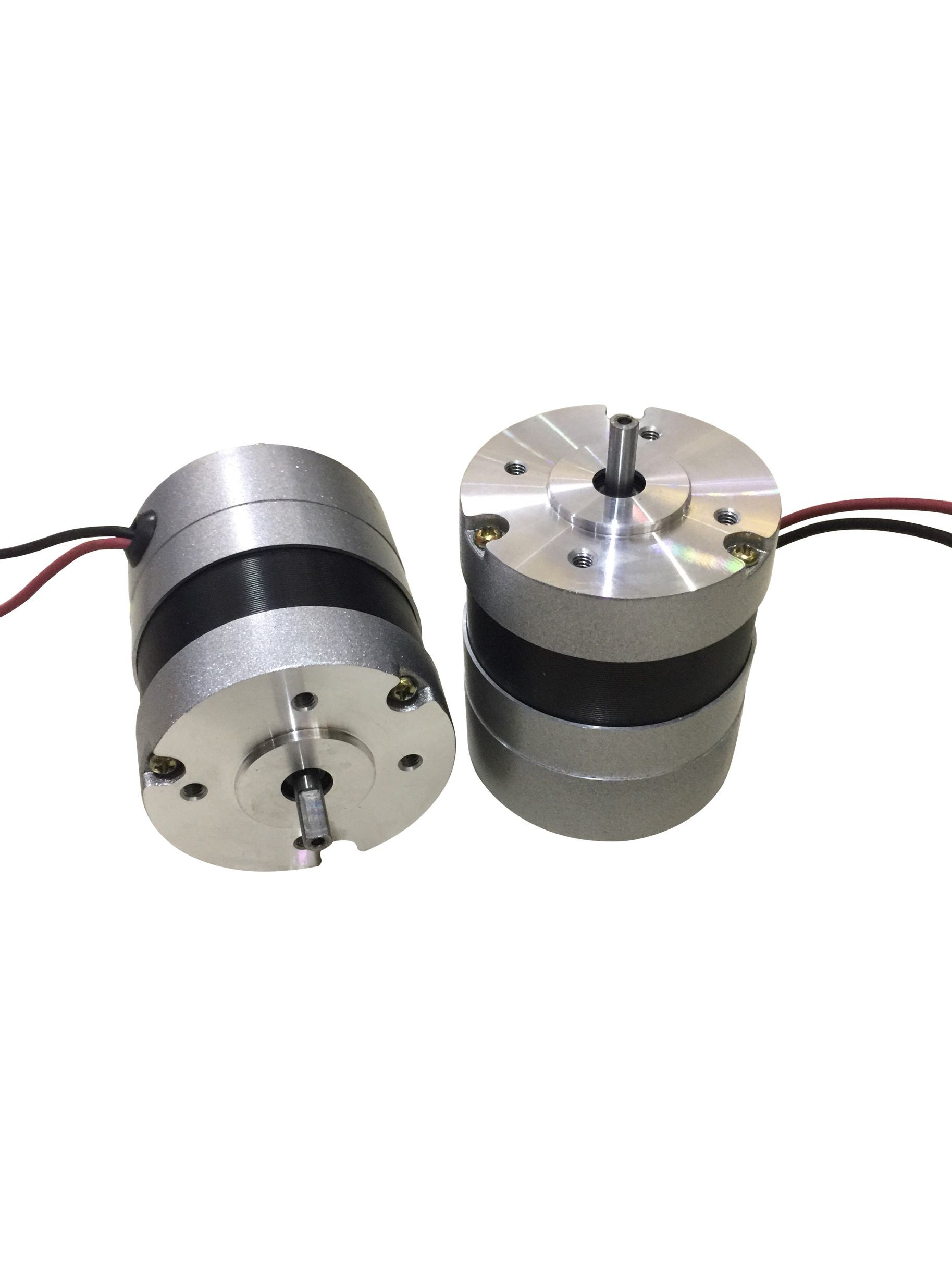

57mm 36V 8 Pole Brushless Servo Motor 3000RPM Stable And Safety Operation
57mm 36V 8 Pole Brushless Servo Motor 3000RPM Stable And Safety Operation
57mm 36V 8 Pole Brushless Servo Motor 3000RPM Stable And Safety Operation
57mm 36V 8 Pole Brushless Servo Motor 3000RPM Stable And Safety Operation
Specifications
Brand Name :
WEIGU
Model Number :
57BLDC
Certification :
Rohs
Place of Origin :
China
MOQ :
1Unit
Price :
Negotiate
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000 Units/MONTH
Delivery Time :
15-30 work days
Packaging Details :
Carton with Inner Foam Box, Pallet
Type :
Brushless DC Motor
Rated Voltage :
12-48V
Winding way :
Star
Insulation Class :
B
Dielectric Strength :
600VDC 2mA 1S
Description

BLDC motors can be controlled, using feedback mechanisms, to delivery precisely the desired torque and rotation speed. Precision control in turn reduces energy consumption and heat generation, and—in cases where motors are battery powered—lengthens the battery life.

General Technical parameters

item

parameter

Product Name

Brushless DC Motor

Winding Type

Star

Hall Effect Angle

120°

Insulation Class

B

IP Level

IP40

Insulation Resistance

100MΩ Min.500VC DC

Dielectric Strength

600VAC 1 Minute

Ambient Temperature

-20℃~+50℃

Electrical Specification

Model 57BLDC
Number Of Phases Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 24 24 24 36
Rated Speed Rpm 2000 3000 3000 3000
Rated Current A 2 5 7 7
Rated Torque N.m 0.15 0.25 0.4 0.65
Rated Power W 30 80 125 200
Peak Torque N.m 0.45 0.7 0.54 0.66
Torque Constant N.m/A 0.075 0.050 0.057 0.093
Back EMF constant V/kRPM 7.9 5.3 6 9.7
Body Length mm 50 70 90 110
Weight Kg 0.5 0.7 0.9 1.1

DIMENSIONS(UNIT mm)

57mm 36V 8 Pole Brushless Servo Motor 3000RPM Stable And Safety Operation

The above size is for reference only!
