Specifications
Brand Name :
TYHE
Model Number :
TJZ37FG
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
37mm gearbox
Voltage :
12V 18v 24v
Speed :
10-1450rpm
Torque :
≤2.5N.m
Gear material :
Powder metallurgy, steel gears
Commutation :
brushed
Type :
Spur Gear Motor, Micro Motor
Usage :
Welding machine, Agricultural machinery
Keywords :
Steel Gear 37mm Diameter 9v 12v 24v RS555 Brushed 2.5N.M 250rpm Dc Gear Motor Rohs
Description

Products Description

Steel Gear 37mm Diameter 9v 12v 24v RS555 Brushed 2.5N.M 250rpm Dc Gear Motor Rohs

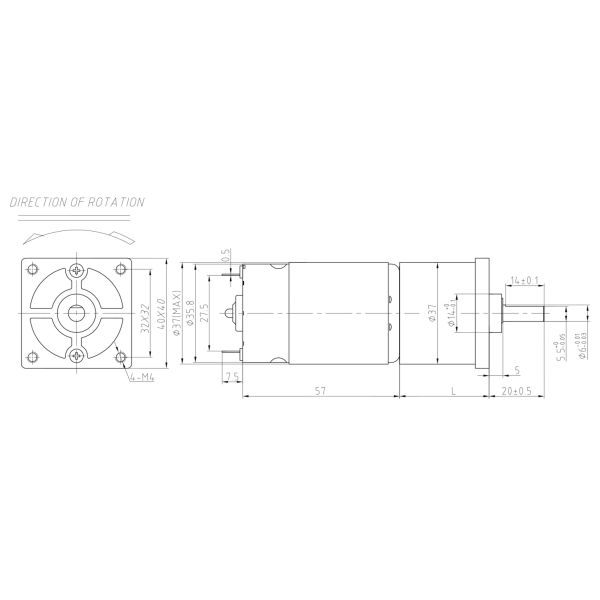

2D drawing

Steel Gear 37mm Diameter 9v 12v 24v RS555 Brushed 2.5N.M 250rpm Dc Gear Motor Rohs

Model End cover dimensions Motor type Regular Shaft Weight
TJZ37FG φ37mm RS555 6mm-D cut 310g


Steel Gear 37mm Diameter 9v 12v 24v RS555 Brushed 2.5N.M 250rpm Dc Gear Motor Rohs

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS555 12 4500 150 3600 0.69 13.50 5.09 61.31 40.50 5.60
RS555 12 5000 240 4000 0.93 16.80 7.04 63.28 50.40 6.80
RS555 24 5000 150 4000 0.49 17.50 7.33 62.12 52.50 3.20
RS555 24 6000 160 4800 0.53 16.80 8.44 66.18 50.40 3.50
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-4500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 782.6 4.12 50.30 150.90 869.6 5.70 62.60 187.79
22.5 81 5.9 610.2 4.12 64.52 193.55 678.0 5.70 80.29 240.86
22.5 73 8.4 428.6 3.71 82.78 248.35 476.2 5.14 103.02 309.05
22.5 73 10.6 339.6 3.71 104.46 313.39 377.4 5.14 130.00 390.00
22.5 73 13.5 266.7 3.71 133.04 399.13 296.3 5.14 165.56 496.69
24.5 65.6 19.3 186.5 3.34 170.92 512.76 207.3 4.62 212.70 638.10
24.5 65.6 24.4 147.5 3.34 216.09 648.26 163.9 4.62 268.91 806.72
24.5 65.6 31.6 113.9 3.34 279.85 839.55 126.6 4.62 348.26 1044.77
26.5 59 45.0 80.0 3.00 358.43 1075.28 88.9 4.15 446.04 1338.12
26.5 59 57.0 63.2 3.00 454.01 1362.02 70.2 4.15 564.98 1694.95
26.5 59 73.6 48.9 3.00 586.22 1758.67 54.3 4.15 729.52 2188.57
29.5 53 105.0 34.3 2.70 751.28 2253.83 38.1 3.73 934.92 2500.00
29.5 53 133.0 27.1 2.70 951.62 2500.00 30.1 3.73 1184.23 2500.00
29.5 53 172.0 20.9 2.70 1230.66 2500.00 23.3 3.73 1531.49 2500.00
32.5 47.8 245.0 14.7 2.43 1580.99 2500.00 16.3 3.36 1967.45 2500.00
32.5 47.8 310.0 11.6 2.43 2000.43 2500.00 12.9 3.36 2489.42 2500.00
32.5 47.8 401.0 9.0 2.43 2500.00 2500.00 10.0 3.36 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-5000RPM Input 24V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 869.6 5.94 65.21 195.62 1043.5 6.84 62.60 187.79
22.5 81 5.9 678.0 5.94 83.63 250.90 813.6 6.84 80.29 240.86
22.5 73 8.4 476.2 5.35 107.31 321.93 571.4 6.16 103.02 309.05
22.5 73 10.6 377.4 5.35 135.42 406.25 452.8 6.16 130.00 390.00
22.5 73 13.5 296.3 5.35 172.46 517.39 355.6 6.16 165.56 496.69
24.5 65.6 19.3 207.3 4.81 221.56 664.69 248.7 5.54 212.70 638.10
24.5 65.6 24.4 163.9 4.81 280.11 840.34 196.7 5.54 268.91 806.72
24.5 65.6 31.6 126.6 4.81 362.77 1088.30 151.9 5.54 348.26 1044.77
26.5 59 45.0 88.9 4.32 464.63 1393.88 106.7 4.98 446.04 1338.12
26.5 59 57.0 70.2 4.32 588.53 1765.58 84.2 4.98 564.98 1694.95
26.5 59 73.6 54.3 4.32 759.92 2279.76 65.2 4.98 729.52 2188.57
29.5 53 105.0 38.1 3.88 973.88 2500.00 45.7 4.48 934.92 2500.00
29.5 53 133.0 30.1 3.88 1233.58 2500.00 36.1 4.48 1184.23 2500.00
29.5 53 172.0 23.3 3.88 1595.30 2500.00 27.9 4.48 1531.49 2500.00
32.5 47.8 245.0 16.3 3.50 2049.43 2500.00 19.6 4.04 1967.45 2500.00
32.5 47.8 310.0 12.9 3.50 2500.00 2500.00 15.5 4.04 2489.42 2500.00
32.5 47.8 401.0 10.0 3.50 2500.00 2500.00 12.0 4.04 2500.00 2500.00

Please let us know your requirements and we will provide you with transmission solutions.
