Specifications
Brand Name :
TYHE
Model Number :
TJZ25RA
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
150000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
φ25mm
Voltage :
3v 7.4v 12v 24v or customized
Speed :
10-1500rpm
Torque :
≤1.5N.m
Gear material :
Powder gears
Commutation :
Brushed
Type :
DC Gear Motor, Micro Motor
Usage :
Grill, Claw machine
Keywords :
Zinc Alloy Housing 25mm Diameter 6v 12v 24v 1N.M Rf370 Brushes Micro Dc Gear Motor For Grill
Description

Products Description

Zinc Alloy Housing 25mm Diameter 6v 12v 24v 1N.M Rf370 Brushes Micro Dc Gear Motor For Grill

2D drawing

Zinc Alloy Housing 25mm Diameter 6v 12v 24v 1N.M Rf370 Brushes Micro Dc Gear Motor For Grill

Model End cover dimensions Motor type Regular Shaft Weight
TJZ25RA φ25mm RF370 4mm-D cut 100g


Zinc Alloy Housing 25mm Diameter 6v 12v 24v 1N.M Rf370 Brushes Micro Dc Gear Motor For Grill

Specifications

DC Motor Technical Data
Model

Rated Voltage

(V)

 No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
370 6 6500 70 5200 0.23 1.58 0.86 62.34 4.74 1.50
370 6 7500 80 6000 0.26 1.60 1.01 65.06 4.80 1.65
370 12 6500 30 5200 0.12 1.72 0.94 62.86 5.16 0.95
370 12 11000 70 8800 0.23 1.95 1.80 65.10 5.85 1.50
DC Motor With Gearbox Technical Data (0.3M)
Gearbox parameters 6V-6500RPM Input 6V-7500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
19 81 4.8 1083.3 0.70 6.14 18.43 1250.0 0.81 6.22 18.66
19 81 5.7 912.3 0.70 7.29 21.88 1052.6 0.81 7.39 22.16
19 73 10.6 490.6 0.63 12.23 36.68 566.0 0.73 12.38 37.14
19 73 12.5 416.0 0.63 14.42 43.25 480.0 0.73 14.60 43.80
19 73 14.7 353.7 0.63 16.95 50.86 408.2 0.73 17.17 51.51
19 65.6 23.0 226.1 0.56 23.84 71.52 260.9 0.66 24.14 72.42
19 65.6 27.5 189.1 0.56 28.50 85.51 218.2 0.66 28.86 86.59
19 65.6 32.0 162.5 0.56 33.17 99.50 187.5 0.66 33.59 100.76
19 65.6 38.0 136.8 0.56 39.39 118.16 157.9 0.66 39.88 119.65
22 59 51.5 101.0 0.51 48.01 144.02 116.5 0.59 48.62 145.85
22 59 60.5 86.0 0.51 56.40 169.19 99.2 0.59 57.11 171.34
22 59 71.0 73.2 0.51 66.19 198.56 84.5 0.59 67.02 201.07
22 59 83.0 62.7 0.51 77.37 232.12 72.3 0.59 78.35 235.06
22 59 98.0 53.1 0.51 91.36 274.07 61.2 0.59 92.51 277.54
24 53 113.0 46.0 0.46 94.63 283.88 53.1 0.53 95.82 287.47
24 53 133.0 39.1 0.46 111.37 334.12 45.1 0.53 112.78 338.35
24 53 156.0 33.3 0.46 130.63 391.90 38.5 0.53 132.29 396.86
24 53 184.0 28.3 0.46 154.08 462.24 32.6 0.53 156.03 468.10
24 53 215.0 24.2 0.46 180.04 540.12 27.9 0.53 182.32 546.96
24 53 253.0 20.6 0.46 211.86 635.59 23.7 0.53 214.54 643.63
27 47.8 249.0 20.9 0.41 188.05 564.16 24.1 0.48 190.44 571.31
27 47.8 293.0 17.7 0.41 221.29 663.86 20.5 0.48 224.09 672.26
27 47.8 344.0 15.1 0.41 259.80 779.41 17.4 0.48 263.09 789.27
27 47.8 404.0 12.9 0.41 305.12 915.35 14.9 0.48 308.98 926.94
27 47.8 474.0 11.0 0.41 357.98 1073.95 12.7 0.48 362.52 1087.55
27 47.8 557.0 9.3 0.41 420.67 1262.01 10.8 0.48 425.99 1277.98
27 47.8 654.0 8.0 0.41 493.93 1481.78 9.2 0.48 500.18 1500.00
DC Motor With Gearbox Technical Data (0.3M)
Gearbox parameters 12V-6500RPM Input 12V-11000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
19 81 4.8 1083.3 0.76 6.69 20.06 1833.3 1.46 7.58 22.74
19 81 5.7 912.3 0.76 7.94 23.82 1543.9 1.46 9.00 27.01
19 73 10.6 490.6 0.68 13.31 39.93 830.2 1.31 15.09 45.27
19 73 12.5 416.0 0.68 15.70 47.09 704.0 1.31 17.79 53.38
19 73 14.7 353.7 0.68 18.46 55.37 598.6 1.31 20.93 62.78
19 65.6 23.0 226.1 0.61 25.95 77.85 382.6 1.18 29.42 88.26
19 65.6 27.5 189.1 0.61 31.03 93.09 320.0 1.18 35.18 105.53
19 65.6 32.0 162.5 0.61 36.11 108.32 275.0 1.18 40.93 122.80
19 65.6 38.0 136.8 0.61 42.88 128.63 231.6 1.18 48.61 145.83
22 59 51.5 101.0 0.55 52.26 156.79 170.9 1.06 59.25 177.75
22 59 60.5 86.0 0.55 61.40 184.19 145.5 1.06 69.61 208.82
22 59 71.0 73.2 0.55 72.05 216.15 123.9 1.06 81.69 245.06
22 59 83.0 62.7 0.55 84.23 252.69 106.0 1.06 95.49 286.47
22 59 98.0 53.1 0.55 99.45 298.35 89.8 1.06 112.75 338.25
24 53 113.0 46.0 0.50 103.01 309.03 77.9 0.95 116.79 350.36
24 53 133.0 39.1 0.50 121.24 363.73 66.2 0.95 137.46 412.37
24 53 156.0 33.3 0.50 142.21 426.63 56.4 0.95 161.23 483.68
24 53 184.0 28.3 0.50 167.73 503.20 47.8 0.95 190.16 570.49
24 53 215.0 24.2 0.50 195.99 587.98 40.9 0.95 222.20 666.61
24 53 253.0 20.6 0.50 230.63 691.90 34.8 0.95 261.48 784.43
27 47.8 249.0 20.9 0.45 204.72 614.15 35.3 0.86 232.09 696.28
27 47.8 293.0 17.7 0.45 240.89 722.68 30.0 0.86 273.11 819.32
27 47.8 344.0 15.1 0.45 282.82 848.47 25.6 0.86 320.64 961.93
27 47.8 404.0 12.9 0.45 332.15 996.46 21.8 0.86 376.57 1129.71
27 47.8 474.0 11.0 0.45 389.70 1169.11 18.6 0.86 441.82 1325.45
27 47.8 557.0 9.3 0.45 457.94 1373.83 15.8 0.86 519.18 1500.00
27 47.8 654.0 8.0 0.45 537.69 1500.00 13.5 0.86 609.59 1500.00

Please let us know your requirements and we will provide you with transmission solutions.

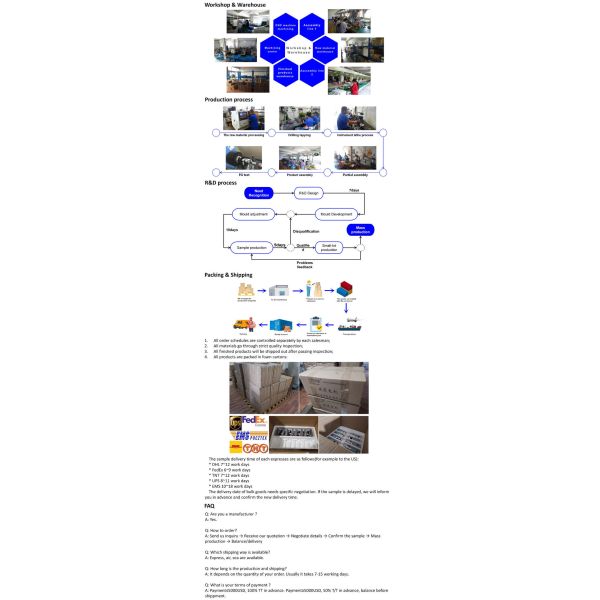

Company Profile

WenZhou TYHE Motor Co.,ltd. was established in May, 2010 and is located in WenZhou, China. TYHE covers an area of 3500㎡. And we have excellent teams who focus on R&D, QC and company operation.

  1. 11 years experiences in dc gear motor industry.
  2. Accept OEM or ODM orders.
  3. 5 days lead time for samples.
  4. Monthly capacity is ≥500000pcs.
  5. Warranty: one year.
  6. 10 R&D engineers offer professional solutions.
  7. Fast delivery time base on different quantities.
  8. CE, ROHS and ISO9001 certificated.
