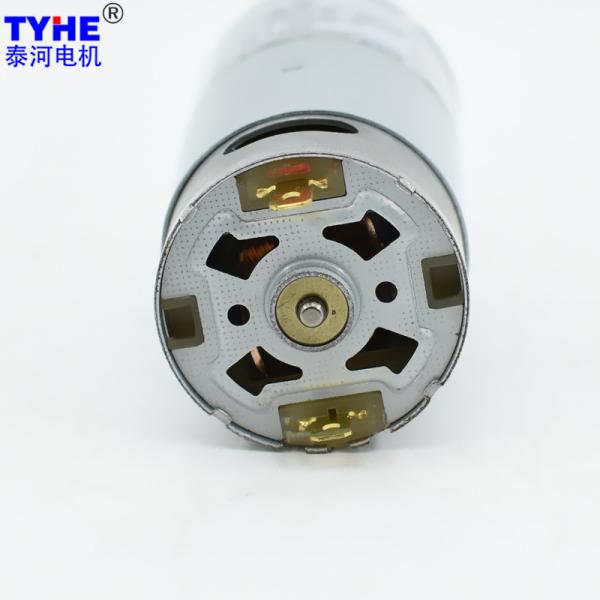

Zinc Housing 37mm Gearbox DC Spur Gear Motor 180rpm 37gb555r RS 555 DC Motor
Zinc Housing 37mm Gearbox DC Spur Gear Motor 180rpm 37gb555r RS 555 DC Motor
Zinc Housing 37mm Gearbox DC Spur Gear Motor 180rpm 37gb555r RS 555 DC Motor
Zinc Housing 37mm Gearbox DC Spur Gear Motor 180rpm 37gb555r RS 555 DC Motor
Zinc Housing 37mm Gearbox DC Spur Gear Motor 180rpm 37gb555r RS 555 DC Motor
Zinc Housing 37mm Gearbox DC Spur Gear Motor 180rpm 37gb555r RS 555 DC Motor
Zinc Housing 37mm Gearbox DC Spur Gear Motor 180rpm 37gb555r RS 555 DC Motor
Zinc Housing 37mm Gearbox DC Spur Gear Motor 180rpm 37gb555r RS 555 DC Motor
Zinc Housing 37mm Gearbox DC Spur Gear Motor 180rpm 37gb555r RS 555 DC Motor
Zinc Housing 37mm Gearbox DC Spur Gear Motor 180rpm 37gb555r RS 555 DC Motor
Specifications
Brand Name :
TYHE
Model Number :
TJP37RG
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
37mm
Voltage :
3-24V
Speed :
20rpm 30rpm 500rpm or Customized
Torque :
1.5N.m
Gear material :
Powder metallurgy, steel
Commutation :
Brush brushes brushed
Type :
Gear Motor, Micro Motor
Usage :
Pitching Machine
Keywords :
Zinc Housing 37mm Gearbox 37gb555r Rs555 Brushed 180rpm 12 Volt Dc Gear Motor For Pitching Machine
Description

Products Description

Zinc Housing 37mm Gearbox 37gb555r Rs555 Brushed 180rpm 12 Volt Dc Gear Motor For Pitching Machine

2D drawing

Zinc Housing 37mm Gearbox DC Spur Gear Motor 180rpm 37gb555r RS 555 DC Motor


Zinc Housing 37mm Gearbox DC Spur Gear Motor 180rpm 37gb555r RS 555 DC Motor

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS555 12 5000 240 4000 0.93 16.80 7.04 63.28 50.40 6.80
RS555 12 6500 310 5200 1.42 19.50 10.62 62.24 58.50 11.48
RS555 24 5000 150 4000 0.49 17.50 7.33 62.12 52.50 3.20
RS555 24 7600 220 6080 1.01 23.20 14.77 61.24 69.60 8.10
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5000RPM Input 12V-6500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 6.5 615.4 5.70 88.45 265.36 800.0 8.60 102.67 308.00
22.5 73 9.3 430.1 5.14 114.06 342.17 559.1 7.75 132.39 397.16
22.5 73 11.8 339.0 5.14 144.72 434.15 440.7 7.75 167.97 503.92
22.5 73 14.2 281.7 5.14 174.15 522.45 366.2 7.75 202.14 606.41
22.5 73 17.4 229.9 5.14 213.39 640.18 298.9 7.75 247.69 743.07
24.5 65.6 21.8 183.5 4.62 240.25 720.76 238.5 6.97 278.87 836.60
24.5 65.6 27.5 145.5 4.62 303.07 909.22 189.1 6.97 351.78 1055.34
24.5 65.6 36.6 109.3 4.62 403.36 1210.08 142.1 6.97 468.19 1404.56
24.5 65.6 40.4 99.0 4.62 445.24 1335.72 128.7 6.97 516.80 1550.39
26.5 59 58.1 68.8 4.15 575.89 1727.66 89.5 6.26 668.44 2005.32
26.5 59 73.4 54.5 4.15 727.54 2182.62 70.8 6.26 844.47 2500.00
26.5 59 83 48.2 4.15 822.70 2468.09 62.7 6.26 954.92 2500.00
26.5 59 89 44.9 4.15 882.17 2500.00 58.4 6.26 1023.95 2500.00
26.5 59 95 42.1 4.15 941.64 2500.00 54.7 6.26 1092.98 2500.00
26.5 59 103 38.8 4.15 1020.94 2500.00 50.5 6.26 1185.02 2500.00
29.5 53 119 33.6 3.73 1059.58 2500.00 43.7 5.63 1229.87 2500.00
29.5 53 136 29.4 3.73 1210.94 2500.00 38.2 5.63 1405.56 2500.00
29.5 53 171 23.4 3.73 1522.58 2500.00 30.4 5.63 1767.29 2500.00
29.5 53 194 20.6 3.73 1727.38 2500.00 26.8 5.63 2004.99 2500.00
29.5 53 207 19.3 3.73 1843.13 2500.00 25.1 5.63 2139.35 2500.00
29.5 53 221 18.1 3.73 1967.78 2500.00 23.5 5.63 2284.04 2500.00
29.5 53 242 16.5 3.73 2154.77 2500.00 21.5 5.63 2500.00 2500.00
29.5 53 277 14.4 3.73 2466.41 2500.00 18.8 5.63 2500.00 2500.00
29.5 53 305 13.1 3.73 2500.00 2500.00 17.0 5.63 2500.00 2500.00
32.5 47.8 350 11.4 3.36 2500.00 2500.00 14.9 5.08 2500.00 2500.00
32.5 47.8 422 9.5 3.36 2500.00 2500.00 12.3 5.08 2500.00 2500.00
32.5 47.8 465 8.6 3.36 2500.00 2500.00 11.2 5.08 2500.00 2500.00
32.5 47.8 513 7.8 3.36 2500.00 2500.00 10.1 5.08 2500.00 2500.00
32.5 47.8 532 7.5 3.36 2500.00 2500.00 9.8 5.08 2500.00 2500.00
32.5 47.8 586 6.8 3.36 2500.00 2500.00 8.9 5.08 2500.00 2500.00
32.5 47.8 712 5.6 3.36 2500.00 2500.00 7.3 5.08 2500.00 2500.00
32.5 47.8 784 5.1 3.36 2500.00 2500.00 6.6 5.08 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-5000RPM Input 24V-7600RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 6.5 615.4 5.94 92.14 276.41 935.4 11.96 122.15 366.44
22.5 73 9.3 430.1 5.35 118.81 356.42 653.8 10.78 157.50 472.51
22.5 73 11.8 339.0 5.35 150.75 452.24 515.3 10.78 199.84 599.53
22.5 73 14.2 281.7 5.35 181.41 544.22 428.2 10.78 240.49 721.47
22.5 73 17.4 229.9 5.35 222.29 666.86 349.4 10.78 294.69 884.06
24.5 65.6 21.8 183.5 4.81 250.26 750.79 278.9 9.69 331.78 995.34
24.5 65.6 27.5 145.5 4.81 315.70 947.10 221.1 9.69 418.53 1255.58
24.5 65.6 36.6 109.3 4.81 420.17 1260.50 166.1 9.69 557.02 1671.07
24.5 65.6 40.4 99.0 4.81 463.79 1391.38 150.5 9.69 614.86 1844.57
26.5 59 58.1 68.8 4.32 599.88 1799.65 104.6 8.71 795.27 2385.82
26.5 59 73.4 54.5 4.32 757.86 2273.57 82.8 8.71 1004.70 2500.00
26.5 59 83 48.2 4.32 856.98 2570.93 73.3 8.71 1136.10 2500.00
26.5 59 89 44.9 4.32 918.93 2756.78 68.3 8.71 1218.23 2500.00
26.5 59 95 42.1 4.32 980.88 2942.63 64.0 8.71 1300.36 2500.00
26.5 59 103 38.8 4.32 1063.48 3190.43 59.0 8.71 1409.86 2500.00
29.5 53 119 33.6 3.88 1103.73 2500.00 51.1 7.83 1463.22 2500.00
29.5 53 136 29.4 3.88 1261.40 2500.00 44.7 7.83 1672.26 2500.00
29.5 53 171 23.4 3.88 1586.03 2500.00 35.6 7.83 2102.62 2500.00
29.5 53 194 20.6 3.88 1799.35 2500.00 31.3 7.83 2385.42 2500.00
29.5 53 207 19.3 3.88 1919.93 2500.00 29.4 7.83 2500.00 2500.00
29.5 53 221 18.1 3.88 2049.78 2500.00 27.5 7.83 2500.00 2500.00
29.5 53 242 16.5 3.88 2244.55 2500.00 25.1 7.83 2500.00 2500.00
29.5 53 277 14.4 3.88 2500.00 2500.00 21.9 7.83 2500.00 2500.00
29.5 53 305 13.1 3.88 2500.00 2500.00 19.9 7.83 2500.00 2500.00
32.5 47.8 350 11.4 3.50 2500.00 2500.00 17.4 7.06 2500.00 2500.00
32.5 47.8 422 9.5 3.50 2500.00 2500.00 14.4 7.06 2500.00 2500.00
32.5 47.8 465 8.6 3.50 2500.00 2500.00 13.1 7.06 2500.00 2500.00
32.5 47.8 513 7.8 3.50 2500.00 2500.00 11.9 7.06 2500.00 2500.00
32.5 47.8 532 7.5 3.50 2500.00 2500.00 11.4 7.06 2500.00 2500.00
32.5 47.8 586 6.8 3.50 2500.00 2500.00 10.4 7.06 2500.00 2500.00
32.5 47.8 712 5.6 3.50 2500.00 2500.00 8.5 7.06 2500.00 2500.00
32.5 47.8 784 5.1 3.50 2500.00 2500.00 7.8 7.06 2500.00 2500.00

Please let us know your requirements and we will provide you with transmission solutions.
