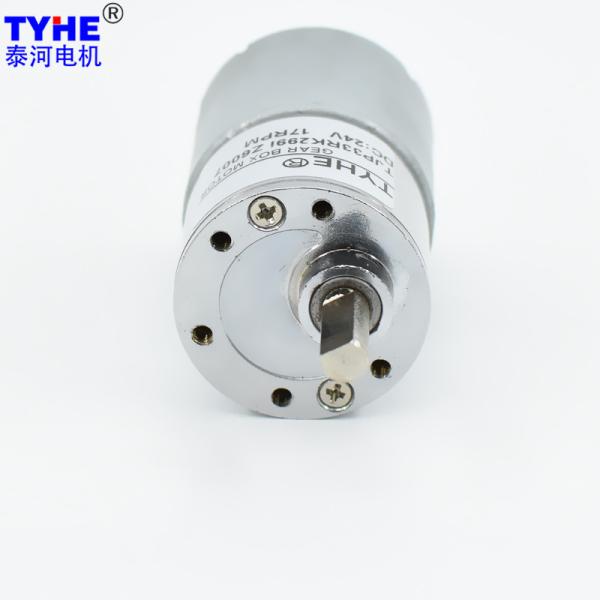

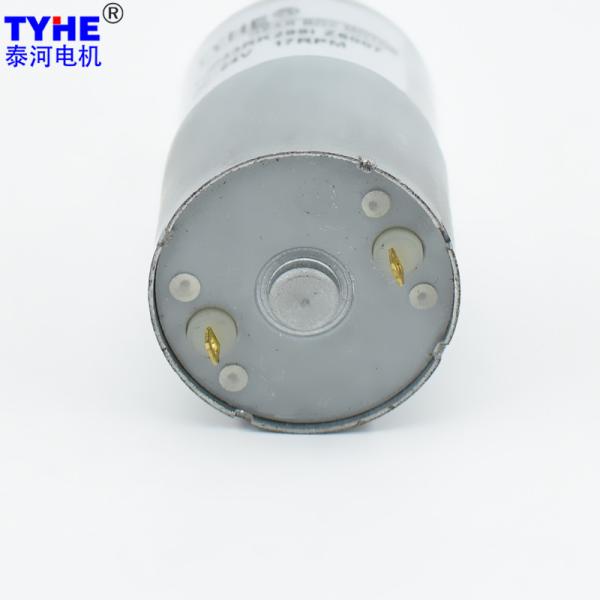

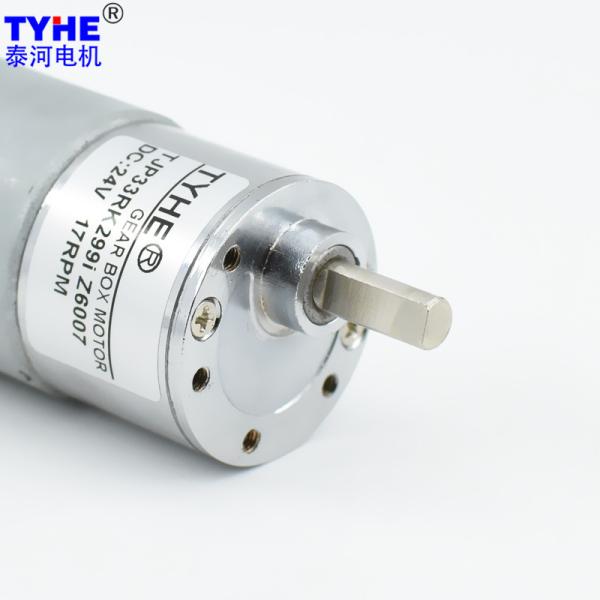

Steel Shaft 33mm 3530 150 Rpm Brushed 5v Dc Gear Motor 6v For Rubber Machine
Steel Shaft 33mm 3530 150 Rpm Brushed 5v Dc Gear Motor 6v For Rubber Machine
Steel Shaft 33mm 3530 150 Rpm Brushed 5v Dc Gear Motor 6v For Rubber Machine
Steel Shaft 33mm 3530 150 Rpm Brushed 5v Dc Gear Motor 6v For Rubber Machine
Steel Shaft 33mm 3530 150 Rpm Brushed 5v Dc Gear Motor 6v For Rubber Machine
Steel Shaft 33mm 3530 150 Rpm Brushed 5v Dc Gear Motor 6v For Rubber Machine
Steel Shaft 33mm 3530 150 Rpm Brushed 5v Dc Gear Motor 6v For Rubber Machine
Steel Shaft 33mm 3530 150 Rpm Brushed 5v Dc Gear Motor 6v For Rubber Machine
Steel Shaft 33mm 3530 150 Rpm Brushed 5v Dc Gear Motor 6v For Rubber Machine
Steel Shaft 33mm 3530 150 Rpm Brushed 5v Dc Gear Motor 6v For Rubber Machine
Specifications
Brand Name :
TYHE
Model Number :
TJP33RK
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
33mm
Voltage :
3-24V
Speed :
Customized
Torque :
≤1.5N.m
Gear material :
Powder metallurgy
Commutation :
Brush brushes brushed
Type :
Gear Motor, Micro Motor
Usage :
breath machine
Keywords :
Steel Shaft 33mm 3530 150 Rpm Brushed 5v Dc Gear Motor 6v For Rubber Machine
Description

Products Description

Steel Shaft 33mm 3540 150 Rpm Brushed 5v Dc Gear Motor 6v

2D drawing

Steel Shaft 33mm 3530 150 Rpm Brushed 5v Dc Gear Motor 6v For Rubber Machine


Steel Shaft 33mm 3530 150 Rpm Brushed 5v Dc Gear Motor 6v For Rubber Machine

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3530 12 5500 60 4400 0.25 4.05 1.87 62.62 12.15 1.90
ZY3530 12 7300 67 5840 0.36 4.35 2.66 61.78 13.05 3.10
ZY3530 24 3500 14 2800 0.06 3.21 0.94 63.42 9.63 0.49
ZY3530 24 5200 22 4160 0.11 3.87 1.69 61.26 11.61 0.98
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5500RPM Input 12V-7300RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
21.3 81 7.7 571.4 1.51 25.26 75.78 758.4 2.15 27.13 81.39
21.3 81 9.0 488.9 1.51 29.52 88.57 648.9 2.15 31.71 95.13
21.3 73 18.4 239.1 1.36 54.40 163.20 317.4 1.94 58.43 175.29
21.3 73 21.6 203.7 1.36 63.86 191.58 270.4 1.94 68.59 205.77
21.3 73 25.4 173.2 1.36 75.10 225.29 229.9 1.94 80.66 241.97
21.3 65.6 44.2 99.5 1.22 117.43 352.29 132.1 1.75 126.13 378.39
21.3 65.6 51.9 84.8 1.22 137.89 413.66 112.5 1.75 148.10 444.31
21.3 65.6 61.0 72.1 1.22 162.06 486.19 95.7 1.75 174.07 522.21
21.3 65.6 71.6 61.5 1.22 190.23 570.68 81.6 1.75 204.32 612.95
22.5 59 106.0 41.5 1.10 253.29 759.86 55.1 1.57 272.05 816.15
22.5 59 125.0 35.2 1.10 298.69 896.06 46.7 1.57 320.81 962.44
22.5 59 146.0 30.1 1.10 348.87 1046.60 40.0 1.57 374.71 1124.13
22.5 59 172.0 25.6 1.10 410.99 1232.98 34.0 1.57 441.44 1324.31
22.5 59 202.0 21.8 1.10 482.68 1448.04 28.9 1.57 518.43 1555.30
24.7 53 255.0 17.3 0.99 547.36 1642.07 22.9 1.41 587.90 1763.71
24.7 53 299.0 14.7 0.99 641.80 1925.41 19.5 1.41 689.34 2000.00
24.7 53 351.0 12.5 0.99 753.42 2000.00 16.6 1.41 809.23 2000.00
24.7 53 413.0 10.7 0.99 886.50 2000.00 14.1 1.41 952.17 2000.00
24.7 53 484.0 9.1 0.99 1038.91 2000.00 12.1 1.41 1115.86 2000.00
24.7 53 569.0 7.7 0.99 1221.36 2000.00 10.3 1.41 1311.83 2000.00
27.2 48 612.0 7.2 0.90 1189.73 2000.00 9.5 1.28 1277.86 2000.00
27.2 48 718.0 6.1 0.90 1395.79 2000.00 8.1 1.28 1499.18 2000.00
27.2 48 843.0 5.2 0.90 1638.79 2000.00 6.9 1.28 1760.18 2000.00
27.2 48 990.0 4.4 0.90 1924.56 2000.00 5.9 1.28 2000.00 2000.00
27.2 48 1163.0 3.8 0.90 2000.00 2000.00 5.0 1.28 2000.00 2000.00
27.2 48 1365.0 3.2 0.90 2000.00 2000.00 4.3 1.28 2000.00 2000.00
27.2 48 1603.0 2.7 0.90 2000.00 2000.00 3.6 1.28 2000.00 2000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-3500RPM Input 24V-5200RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
21.3 81 7.7 363.6 0.76 20.02 60.06 540.3 1.37 24.14 72.41
21.3 81 9.0 311.1 0.76 23.40 70.20 462.2 1.37 28.21 84.64
21.3 73 18.4 152.2 0.69 43.12 129.35 226.1 1.23 51.98 155.95
21.3 73 21.6 129.6 0.69 50.62 151.85 192.6 1.23 61.02 183.07
21.3 73 25.4 110.2 0.69 59.52 178.56 163.8 1.23 71.76 215.27
21.3 65.6 44.2 63.3 0.62 93.07 279.22 94.1 1.11 112.21 336.63
21.3 65.6 51.9 53.9 0.62 109.29 327.87 80.2 1.11 131.76 395.28
21.3 65.6 61.0 45.9 0.62 128.45 385.35 68.2 1.11 154.86 464.59
21.3 65.6 71.6 39.1 0.62 150.77 452.32 58.1 1.11 181.77 545.32
22.5 59 106.0 26.4 0.56 200.75 602.26 39.2 0.99 242.03 726.09
22.5 59 125.0 22.4 0.56 236.74 710.21 33.3 0.99 285.41 856.24
22.5 59 146.0 19.2 0.56 276.51 829.53 28.5 0.99 333.36 1000.09
22.5 59 172.0 16.3 0.56 325.75 977.25 24.2 0.99 392.73 1178.18
22.5 59 202.0 13.9 0.56 382.57 1147.70 20.6 0.99 461.23 1383.68
24.7 53 255.0 11.0 0.50 433.83 1301.49 16.3 0.89 523.03 1569.09
24.7 53 299.0 9.4 0.50 508.69 1526.07 13.9 0.89 613.28 1839.84
24.7 53 351.0 8.0 0.50 597.16 1791.47 11.9 0.89 719.94 2000.00
24.7 53 413.0 6.8 0.50 702.64 2000.00 10.1 0.89 847.10 2000.00
24.7 53 484.0 5.8 0.50 823.43 2000.00 8.6 0.89 992.73 2000.00
24.7 53 569.0 4.9 0.50 968.04 2000.00 7.3 0.89 1167.08 2000.00
27.2 48 612.0 4.6 0.45 942.97 2000.00 6.8 0.81 1136.85 2000.00
27.2 48 718.0 3.9 0.45 1106.29 2000.00 5.8 0.81 1333.76 2000.00
27.2 48 843.0 3.3 0.45 1298.89 2000.00 4.9 0.81 1565.96 2000.00
27.2 48 990.0 2.8 0.45 1525.39 2000.00 4.2 0.81 1839.02 2000.00
27.2 48 1163.0 2.4 0.45 1791.95 2000.00 3.6 0.81 2000.00 2000.00
27.2 48 1365.0 2.1 0.45 2000.00 2000.00 3.0 0.81 2000.00 2000.00
27.2 48 1603.0 1.7 0.45 2000.00 2000.00 2.6 0.81 2000.00 2000.00

Please let us know your requirements and we will provide you with transmission solutions.
