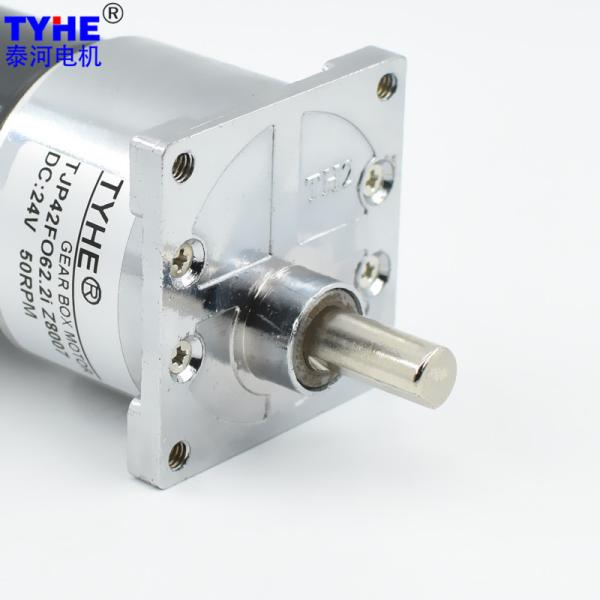

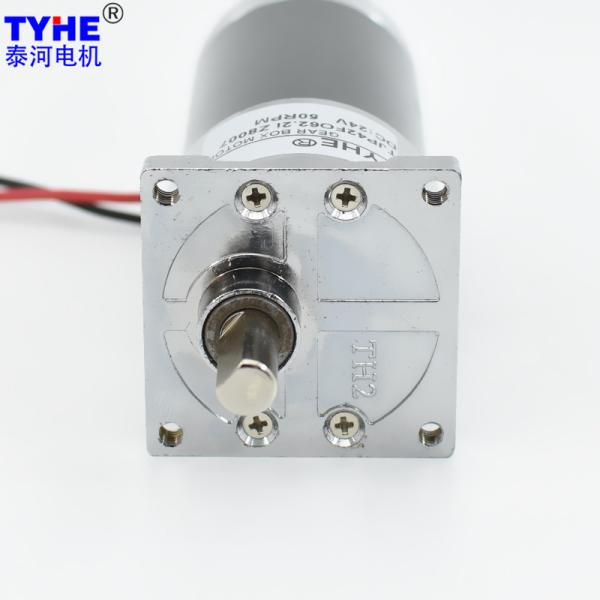

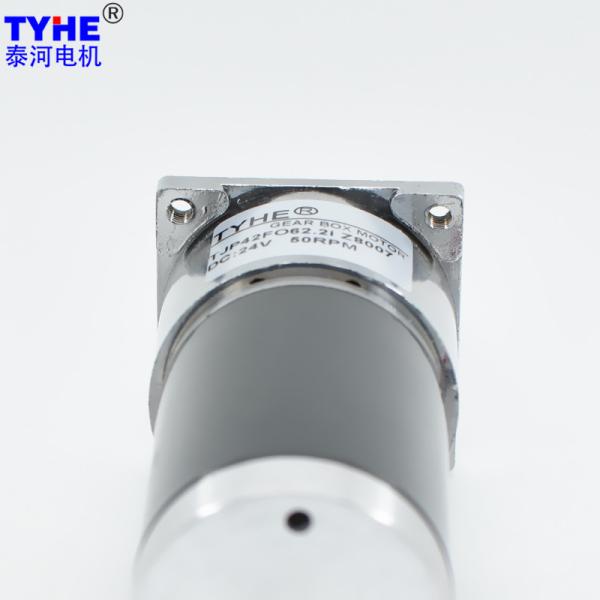

Low Backlash 6v 12v 24V DC Gear Motor Tubular 3rpm 30w 25w 40kgcm With Brake
Low Backlash 6v 12v 24V DC Gear Motor Tubular 3rpm 30w 25w 40kgcm With Brake
Low Backlash 6v 12v 24V DC Gear Motor Tubular 3rpm 30w 25w 40kgcm With Brake
Low Backlash 6v 12v 24V DC Gear Motor Tubular 3rpm 30w 25w 40kgcm With Brake
Low Backlash 6v 12v 24V DC Gear Motor Tubular 3rpm 30w 25w 40kgcm With Brake
Low Backlash 6v 12v 24V DC Gear Motor Tubular 3rpm 30w 25w 40kgcm With Brake
Low Backlash 6v 12v 24V DC Gear Motor Tubular 3rpm 30w 25w 40kgcm With Brake
Low Backlash 6v 12v 24V DC Gear Motor Tubular 3rpm 30w 25w 40kgcm With Brake
Low Backlash 6v 12v 24V DC Gear Motor Tubular 3rpm 30w 25w 40kgcm With Brake
Low Backlash 6v 12v 24V DC Gear Motor Tubular 3rpm 30w 25w 40kgcm With Brake
Specifications
Brand Name :
TYHE
Model Number :
TJP42FO
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
42mm size
Voltage :
12v 18v 24v
Speed :
35rpm or Customized
Torque :
6N.m
Gear material :
Powder metallurgy steel gears
Commutation :
Brush brushes
Type :
Dc Gear Motor, Micro Motor
Keywords :
Low Backlash 6v 12v Cw Ccw 19v Tubular 3rpm 30watt 25w 40kgcm 4nm 3nm Brushed Dc Gear Reducer Motor With Brake
Description

Products Description

Low Backlash 6v 12v Cw Ccw 19v Tubular 3rpm 30watt 25w 40kgcm 4nm 3nm Brushed Dc Gear Reducer Motor With Brake

2D drawing

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3864 12 5700 340 4560 1.22 19.80 9.45 64.37 59.40 7.14
ZY3864 12 6000 380 4800 1.37 20.30 10.20 62.15 60.90 7.98
ZY3864 24 6000 220 4800 0.86 24.70 12.41 60.29 74.10 5.28
ZY3864 24 8000 270 6400 1.11 25.00 16.75 63.06 75.00 7.02
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 12V-5700RPM Input 12V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 3.6 1266.7 7.66 57.74 173.21 1333.3 8.26 59.19 177.58
25.7 81 4.4 1036.4 7.66 70.57 211.70 1090.9 8.26 72.35 217.05
25.7 81 5.4 844.4 7.66 86.61 259.82 888.9 8.26 88.79 266.38
25.7 81 6.8 670.6 7.66 109.06 327.18 705.9 8.26 111.81 335.44
25.7 81 8.6 530.2 7.66 137.93 413.78 558.1 8.26 141.41 424.23
29.3 73 9.7 470.1 6.90 140.20 420.61 494.8 7.45 143.74 431.23
29.3 73 11.8 386.4 6.90 170.56 511.67 406.8 7.45 174.86 524.59
29.3 73 14.6 312.3 6.90 211.03 633.09 328.8 7.45 216.36 649.07
29.3 73 18.2 250.5 6.90 263.06 789.19 263.7 7.45 269.71 809.12
29.3 73 23.3 195.7 6.90 336.78 1010.33 206.0 7.45 345.28 1035.85
29.3 65.6 25.9 176.1 6.20 336.41 1009.23 185.3 6.69 344.91 1034.72
29.3 65.6 31.6 144.3 6.20 410.45 1231.34 151.9 6.69 420.81 1262.43
29.3 65.6 38.9 117.2 6.20 505.26 1515.79 123.4 6.69 518.02 1554.07
29.3 65.6 48.6 93.8 6.20 631.26 1893.77 98.8 6.69 647.20 1941.59
29.3 65.6 62.2 73.3 6.20 807.90 2423.71 77.2 6.69 828.30 2484.91
32.6 59 69.1 66.0 5.58 807.23 2421.68 69.5 6.02 827.61 2482.83
32.6 59 84.2 54.2 5.58 983.62 2950.87 57.0 6.02 1008.46 3025.39
32.6 59 104 43.8 5.58 1214.93 3644.78 46.2 6.02 1245.61 3736.82
32.6 59 130 35.1 5.58 1518.66 4555.98 36.9 6.02 1557.01 4671.03
32.6 59 164 27.8 5.58 1915.85 5000.00 29.3 6.02 1964.23 5000.00
32.6 59 170 26.8 5.58 1985.94 5000.00 28.2 6.02 2036.09 5000.00
36 53 184 24.8 5.01 1930.90 5000.00 26.1 5.41 1979.66 5000.00
36 53 225 20.3 5.01 2361.15 5000.00 21.3 5.41 2420.78 5000.00
36 53 276 16.5 5.01 2896.34 5000.00 17.4 5.41 2969.48 5000.00
36 53 346 13.2 5.01 3630.92 5000.00 13.9 5.41 3722.61 5000.00
36 53 442 10.3 5.01 4638.35 5000.00 10.9 5.41 4755.48 5000.00
36 53 459 9.9 5.01 4816.75 5000.00 10.5 5.41 4938.38 5000.00
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 24V-6000RPM Input 24V-8000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 3.6 1333.3 10.06 72.03 216.08 1777.8 13.57 72.90 218.70
25.7 81 4.4 1090.9 10.06 88.03 264.09 1454.5 13.57 89.10 267.30
25.7 81 5.4 888.9 10.06 108.04 324.11 1185.2 13.57 109.35 328.05
25.7 81 6.8 705.9 10.06 136.05 408.14 941.2 13.57 137.70 413.10
25.7 81 8.6 558.1 10.06 172.06 516.18 744.2 13.57 174.15 522.45
29.3 73 9.7 494.8 9.06 174.90 524.70 659.8 12.23 177.03 531.08
29.3 73 11.8 406.8 9.06 212.77 638.30 542.4 12.23 215.35 646.05
29.3 73 14.6 328.8 9.06 263.25 789.76 438.4 12.23 266.45 799.35
29.3 73 18.2 263.7 9.06 328.16 984.49 351.6 12.23 332.15 996.45
29.3 73 23.3 206.0 9.06 420.12 1260.37 274.7 12.23 425.23 1275.68
29.3 65.6 25.9 185.3 8.14 419.66 1258.99 247.1 10.99 424.76 1274.28
29.3 65.6 31.6 151.9 8.14 512.02 1536.06 202.5 10.99 518.24 1554.72
29.3 65.6 38.9 123.4 8.14 630.30 1890.91 164.5 10.99 637.96 1913.88
29.3 65.6 48.6 98.8 8.14 787.48 2362.43 131.7 10.99 797.04 2391.12
29.3 65.6 62.2 77.2 8.14 1007.84 3023.52 102.9 10.99 1020.08 3060.24
32.6 59 69.1 69.5 7.32 1006.99 3020.98 92.6 9.88 1019.23 3057.68
32.6 59 84.2 57.0 7.32 1227.05 3681.14 76.0 9.88 1241.95 3725.85
32.6 59 104 46.2 7.32 1515.59 4546.78 61.5 9.88 1534.00 4602.00
32.6 59 130 36.9 7.32 1894.49 5000.00 49.2 9.88 1917.50 5000.00
32.6 59 164 29.3 7.32 2389.97 5000.00 39.0 9.88 2419.00 5000.00
32.6 59 170 28.2 7.32 2477.41 5000.00 37.6 9.88 2507.50 5000.00
36 53 184 26.1 6.58 2408.74 5000.00 34.8 8.88 2438.00 5000.00
36 53 225 21.3 6.58 2945.48 5000.00 28.4 8.88 2981.25 5000.00
36 53 276 17.4 6.58 3613.12 5000.00 23.2 8.88 3657.00 5000.00
36 53 346 13.9 6.58 4529.49 5000.00 18.5 8.88 4584.50 5000.00
36 53 442 10.9 6.58 5000.00 5000.00 14.5 8.88 5000.00 5000.00
36 53 459 10.5 6.58 5000.00 5000.00 13.9 8.88 5000.00 5000.00

Low Backlash 6v 12v 24V DC Gear Motor Tubular 3rpm 30w 25w 40kgcm With Brake


Low Backlash 6v 12v 24V DC Gear Motor Tubular 3rpm 30w 25w 40kgcm With Brake

Please let us know your requirements and we will provide you with transmission solutions.
