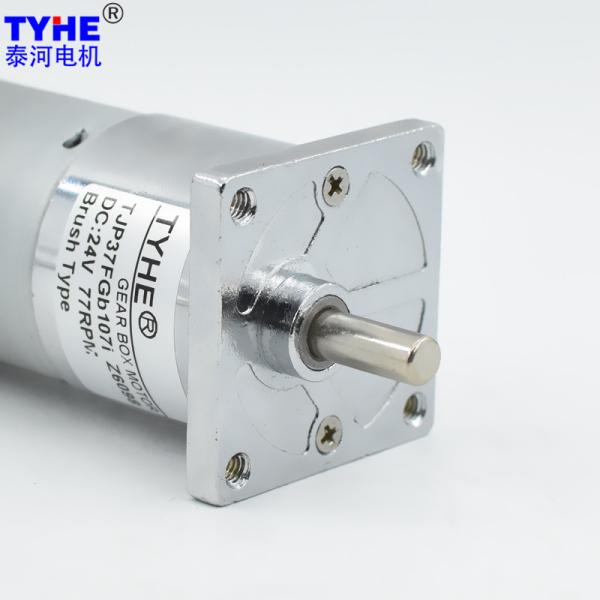

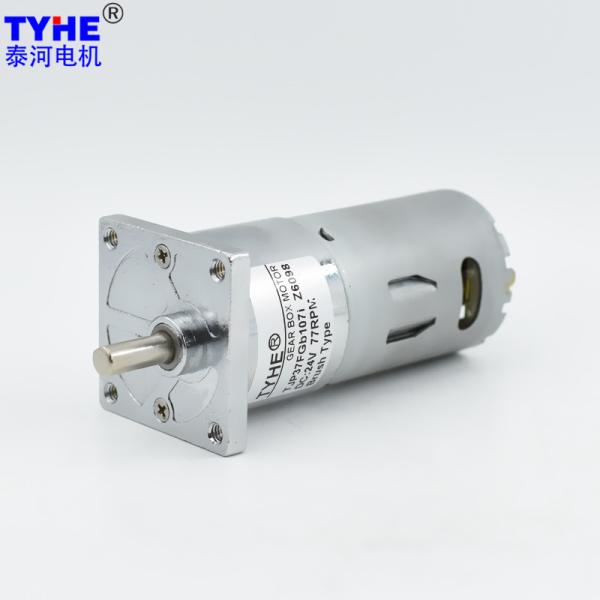

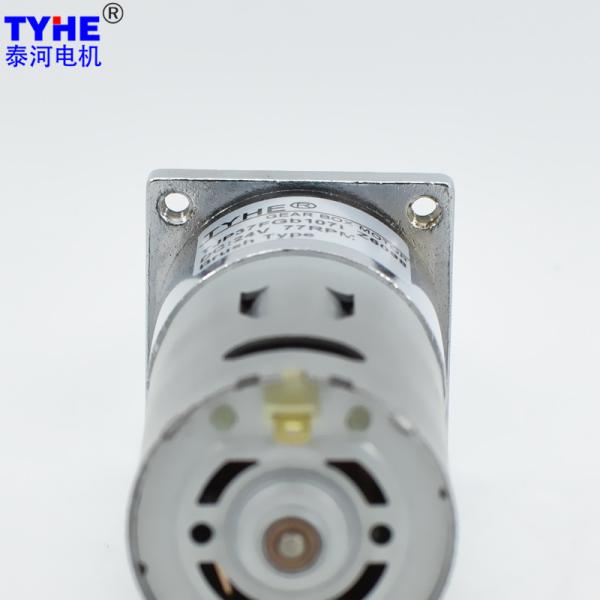

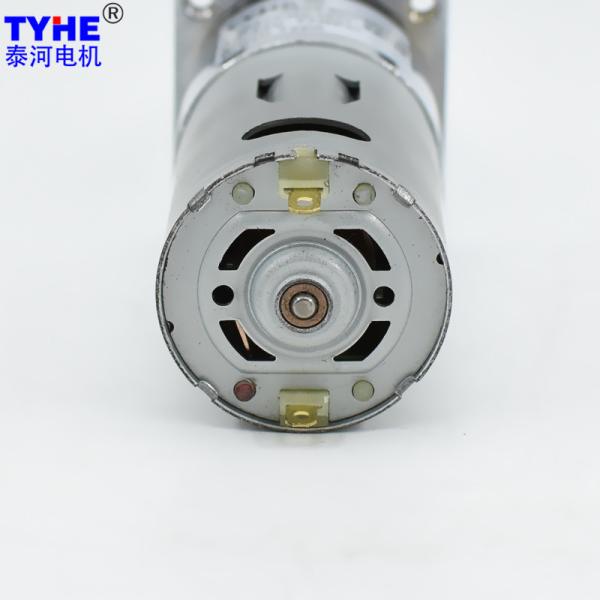

Low Noise 6V 10rpm 15kg.Cm 12V DC Metal Gear Motor Mini 37mm
Low Noise 6V 10rpm 15kg.Cm 12V DC Metal Gear Motor Mini 37mm
Low Noise 6V 10rpm 15kg.Cm 12V DC Metal Gear Motor Mini 37mm
Low Noise 6V 10rpm 15kg.Cm 12V DC Metal Gear Motor Mini 37mm
Low Noise 6V 10rpm 15kg.Cm 12V DC Metal Gear Motor Mini 37mm
Low Noise 6V 10rpm 15kg.Cm 12V DC Metal Gear Motor Mini 37mm
Low Noise 6V 10rpm 15kg.Cm 12V DC Metal Gear Motor Mini 37mm
Low Noise 6V 10rpm 15kg.Cm 12V DC Metal Gear Motor Mini 37mm
Low Noise 6V 10rpm 15kg.Cm 12V DC Metal Gear Motor Mini 37mm
Low Noise 6V 10rpm 15kg.Cm 12V DC Metal Gear Motor Mini 37mm
Specifications
Brand Name :
TYHE
Model Number :
TJP37FGb
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
37mm
Voltage :
3-24V custom
Speed :
5-1200rpm
Torque :
≤1.5N.m
Gear material :
Powder metallurgy gears
Commutation :
Brush brushes
Type :
Gear Motor, Micro Motor
Keywords :
Low Noise Mini Size 37mm 6v 12v 12v24v 10rpm 15kg.Cm Electric Metal 3v Dc Gear Motor
Description

Products Description

Low Noise Mini Size 37mm 6v 12v 12v24v 10rpm 15kg.Cm Electric Metal 3v Dc Gear Motor

2D drawing

Low Noise 6V 10rpm 15kg.Cm 12V DC Metal Gear Motor Mini 37mm


Low Noise 6V 10rpm 15kg.Cm 12V DC Metal Gear Motor Mini 37mm

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS545 6 3200 280 2560 0.81 11.20 3.00 61.65 33.60 4.70
RS545 12 2000 70 1600 0.20 8.95 1.50 63.54 26.85 1.10
RS545 24 6000 160 4800 0.60 17.50 8.80 61.25 52.50 4.30
RS545 24 8300 200 6640 0.88 19.30 13.42 63.90 57.90 6.90
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 6V-3200RPM Input 12V-2000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 312.2 2.43 74.39 223.17 195.1 1.21 59.45 178.34
25.5 73 11.7 218.8 2.19 95.66 286.98 136.8 1.09 76.44 229.33
25.5 73 14.7 174.1 2.19 120.19 360.56 108.8 1.09 96.04 288.13
25.5 73 19.1 134.0 2.19 156.16 468.48 83.8 1.09 124.79 374.37
27.5 65.6 27.2 94.1 1.97 199.84 599.53 58.8 0.98 159.70 479.09
27.5 65.6 34.4 74.4 1.97 252.74 758.23 46.5 0.98 201.97 605.91
27.5 65.6 44.5 57.5 1.97 326.95 980.85 36.0 0.98 261.27 783.81
29.5 59 63.5 40.3 1.77 419.61 1258.82 25.2 0.88 335.31 1005.94
29.5 59 80.3 31.9 1.77 530.62 1591.87 19.9 0.88 424.02 1272.07
29.5 59 104.0 24.6 1.77 687.23 2061.70 15.4 0.88 549.17 1647.52
32.5 53 148.0 17.3 1.59 878.53 2500.00 10.8 0.79 702.04 2106.11
32.5 53 187.0 13.7 1.59 1110.03 2500.00 8.6 0.79 887.03 2500.00
32.5 53 242.0 10.6 1.59 1436.51 2500.00 6.6 0.79 1147.93 2500.00
35.5 47.8 346.0 7.4 1.44 1852.35 2500.00 4.6 0.72 1480.22 2500.00
35.5 47.8 437.0 5.9 1.44 2339.52 2500.00 3.7 0.72 1869.53 2500.00
35.5 47.8 565.0 4.5 1.44 2500.00 2500.00 2.8 0.72 2417.13 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-6000RPM Input 24V-8300RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 585.4 7.12 116.24 348.71 809.8 10.87 128.19 384.57
25.5 73 11.7 410.3 6.42 149.47 448.40 567.5 9.80 164.84 494.52
25.5 73 14.7 326.5 6.42 187.79 563.38 451.7 9.80 207.11 621.32
25.5 73 19.1 251.3 6.42 244.00 732.01 347.6 9.80 269.10 807.30
27.5 65.6 27.2 176.5 5.77 312.26 936.77 244.1 8.80 344.37 1033.12
27.5 65.6 34.4 139.5 5.77 394.91 1184.74 193.0 8.80 435.53 1306.59
27.5 65.6 44.5 107.9 5.77 510.86 1532.58 149.2 8.80 563.41 1690.22
29.5 59 63.5 75.6 5.19 655.64 1966.91 104.6 7.92 723.07 2169.22
29.5 59 80.3 59.8 5.19 829.10 2487.29 82.7 7.92 914.38 2500.00
29.5 59 104.0 46.2 5.19 1073.80 2500.00 63.8 7.92 1184.25 2500.00
32.5 53 148.0 32.4 4.66 1372.70 2500.00 44.9 7.11 1513.89 2500.00
32.5 53 187.0 25.7 4.66 1734.43 2500.00 35.5 7.11 1912.82 2500.00
32.5 53 242.0 19.8 4.66 2244.55 2500.00 27.4 7.11 2475.42 2500.00
35.5 47.8 346.0 13.9 4.20 2500.00 2500.00 19.2 6.41 2500.00 2500.00
35.5 47.8 437.0 11.0 4.20 2500.00 2500.00 15.2 6.41 2500.00 2500.00
35.5 47.8 565.0 8.5 4.20 2500.00 2500.00 11.8 6.41 2500.00 2500.00

Please let us know your requirements and we will provide you with transmission solutions.

Low Noise 6V 10rpm 15kg.Cm 12V DC Metal Gear Motor Mini 37mm

Low Noise 6V 10rpm 15kg.Cm 12V DC Metal Gear Motor Mini 37mm
