Super Flexible Spacer Insulating Glass Line
Super Flexible Spacer Insulating Glass Line
Specifications
Description

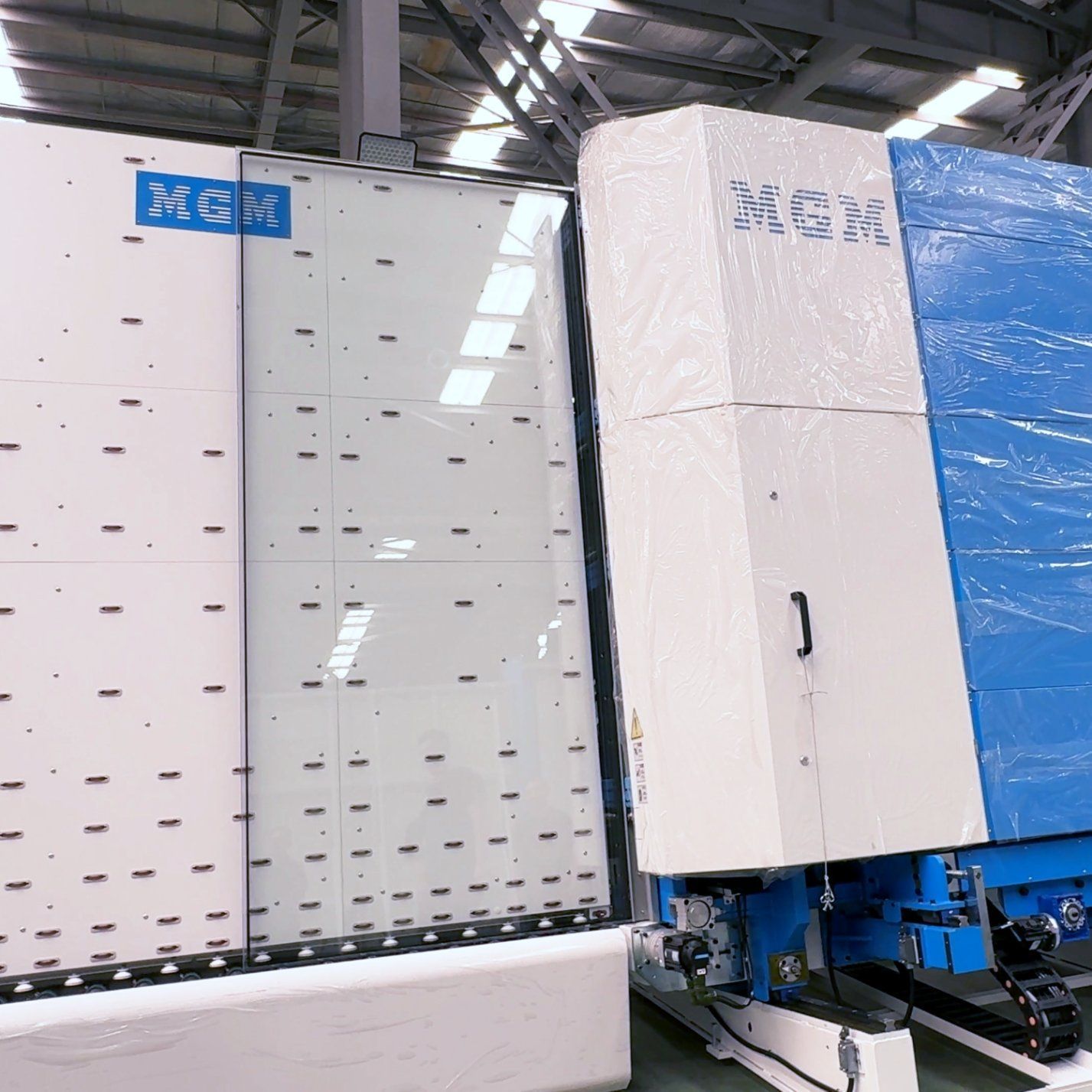

Experience unparalleled production flexibility with our Super Flexible Spacer Insulating Glass Production Line. Designed for the versatile super flexible spacer, this line excels at creating high-quality, custom-shaped IGUs. It simplifies the process of handling delicate and complex spacer profiles, ensuring a perfect, continuous seal without mechanical corner keys. The result is an exceptional thermal break and a clean aesthetic finish. Our SFS insulating glass production line is the go-to solution for manufacturers specializing in architectural, curved, or irregularly shaped insulating glass, enabling you to expand your product offerings and cater to unique project demands with ease.

Technical Data
Technical Data
Min Size 160*310mm
Glass Thickness 3-18mm
Spacer Width 6-19mm
IG Thickness ＜56mm
Washing Speed 1-10m/min
Transport Speed 1-50m/min
Transport Height 550-650mm
Power Supply ≈85kW
IG Types Double glazing, Triple glazing, Shapes
Options In-panel gas filling
Max Size 1800X3600mm 2700*3500mm
Key Features

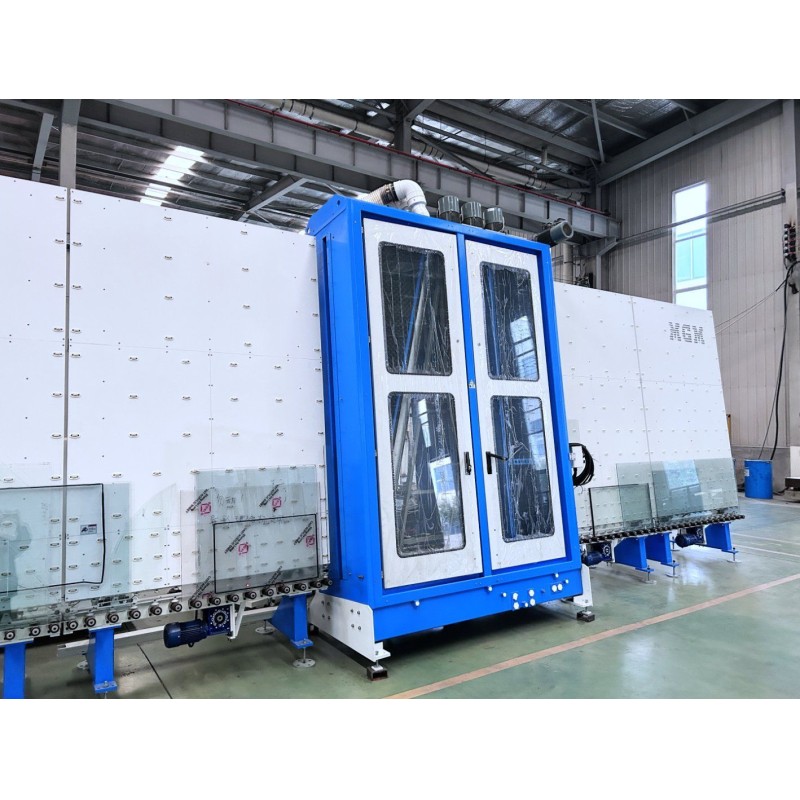

  • High glass washing quality: fast cleaning speed, low noise, sand and carbon filters with soft coated LOWE brushes and air knives ensuring a water-free glass surface with no scratches
  • Inspection and spacer placement station featuring a specially treated coating to reduce glare and enable comprehensive inspection

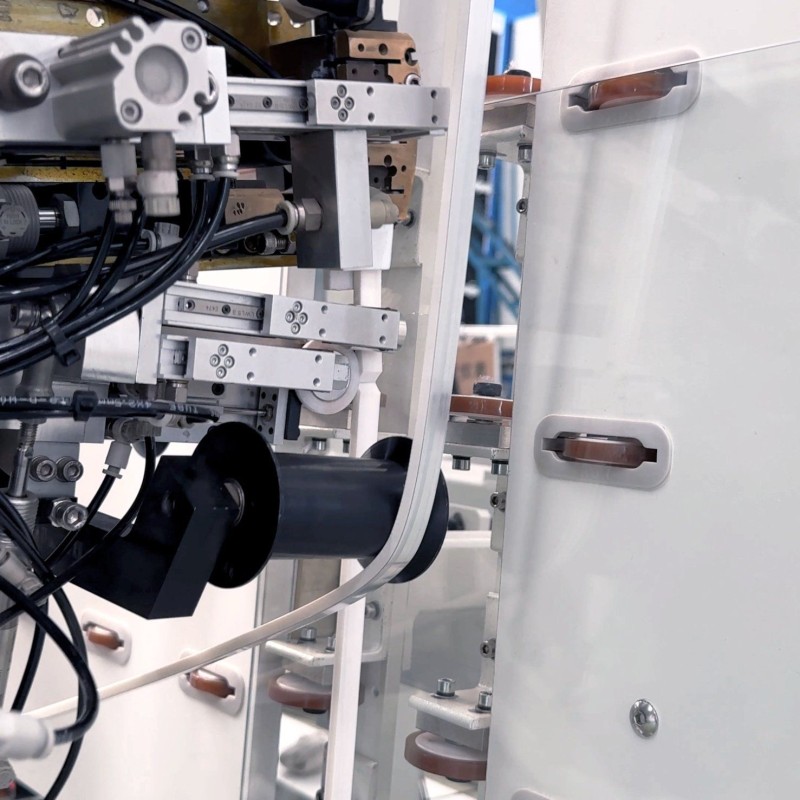

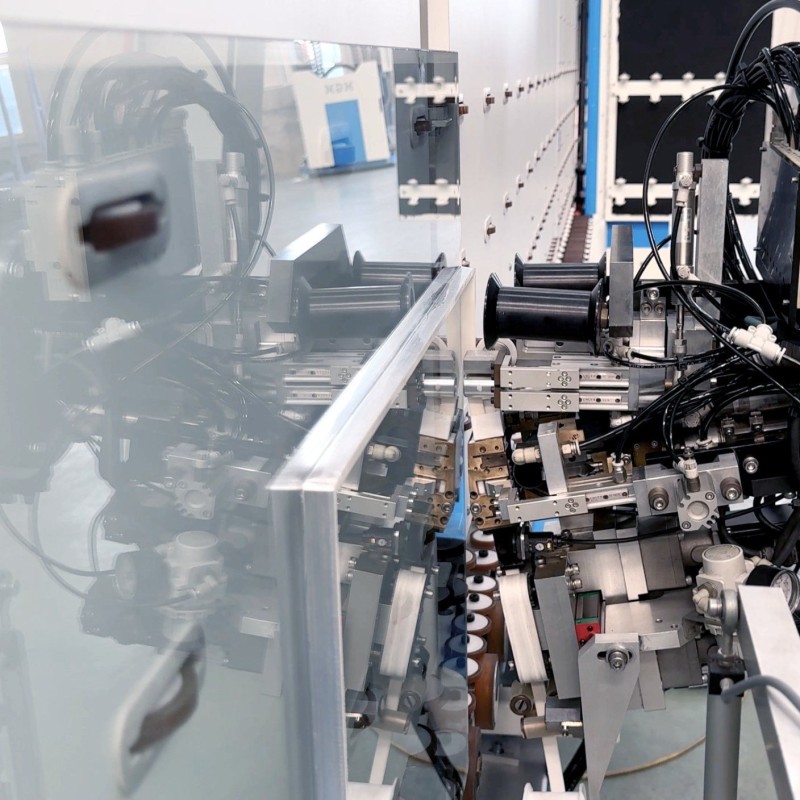

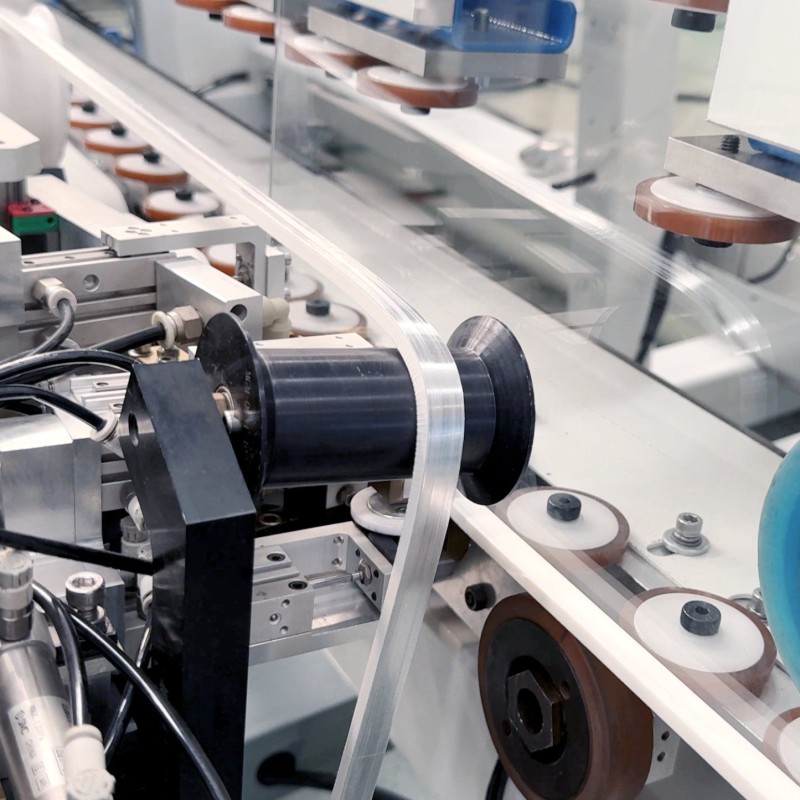

  • Super flexible spacer applicator: precision placement of super flexible spacers at high speed for maximum output, and allows for inverse corners and variable shapes
  • Gas filling pressing: rapid argon gas filling over 90% efficiency, precise lamination, servo-controlled, and high pressure accuracy
  • Integrated with automatic loading/unloading systems to enable complete production line automation, minimization of manual labour and improving efficiency dramatically
  • Configurable for both super flexible spacers and conventional aluminium spacers, enabling convenient switches
  • Spacer storage accommodating two types of spacers for flexible production
  • Single-piece pressing panel design ensuring even and consistent pressing flatness
