Tandem Assembly Insulating Glass Line
Tandem Assembly Insulating Glass Line
Specifications
Description

Maximize your factory's output with our innovative Tandem Insulating Glass Production Line. This intelligent design features extended inspection table and doubled assembly table, operating on a synchronized line, allowing for simultaneous processing of same and/or different glass sizes or types. Dramatically reduce idle time and boost production flexibility by performing tasks like spacer assembly and sealing in parallel. It is the ultimate solution for medium to large-scale manufacturers seeking to optimize floor space and/or manufacturers taking bulk commercial orders, increase overall equipment effectiveness (OEE), and effortlessly handle mixed-order batches. Achieve mass production capabilities with the agility needed for a dynamic market.

Technical Data
Model ZK18/36
Min IG Size 180X360mm
Max IG Size 1800X3600mm
Glass Thickness 3-18mm
IG Thickness ＜56mm
Washing Speed 1-10m/min
Transport Speed 1-50m/min
Transport Height 550-650mm
Power Supply ≈75kW
Tandem Assembly Mode Processing two IG units simultaneously, Max IG units size 1700mm*1700mm
IG Types Double glazing, Triple glazing
Options In-panel gas filling
Key Features

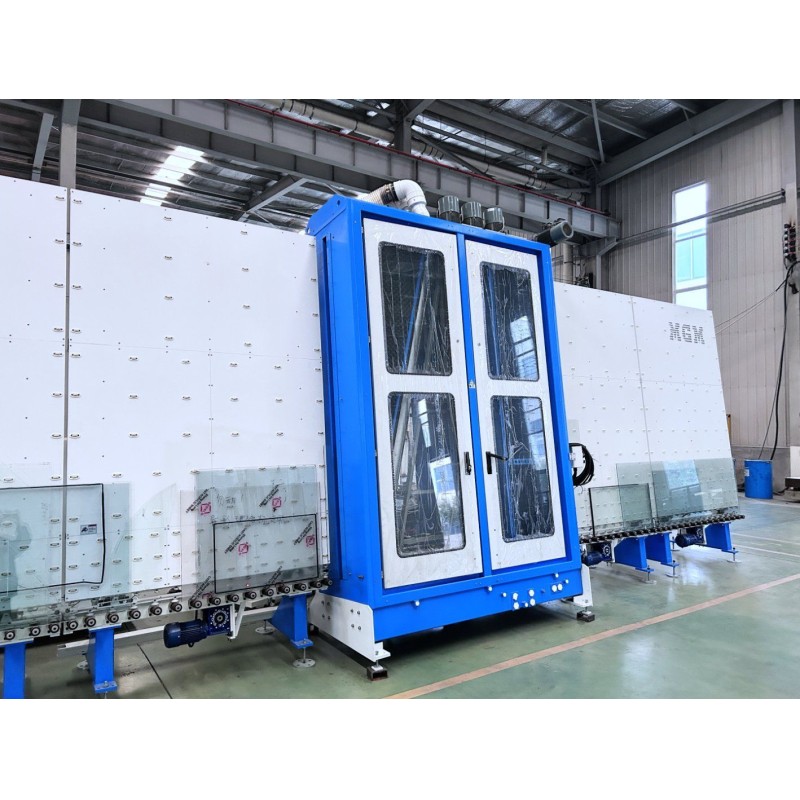

  • High glass washing quality: fast cleaning speed, low noise, sand and carbon filters with soft coated LOWE brushes and air knives ensuring a water-free glass surface with no scratches

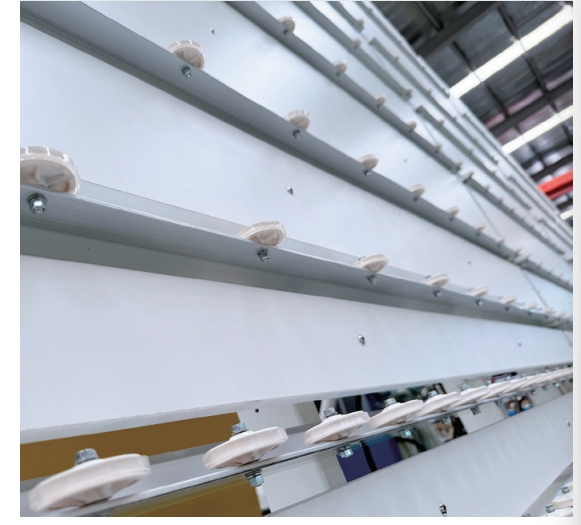

  • Inspection and spacer placement station featuring a specially treated coating to reduce glare and enable comprehensive inspection

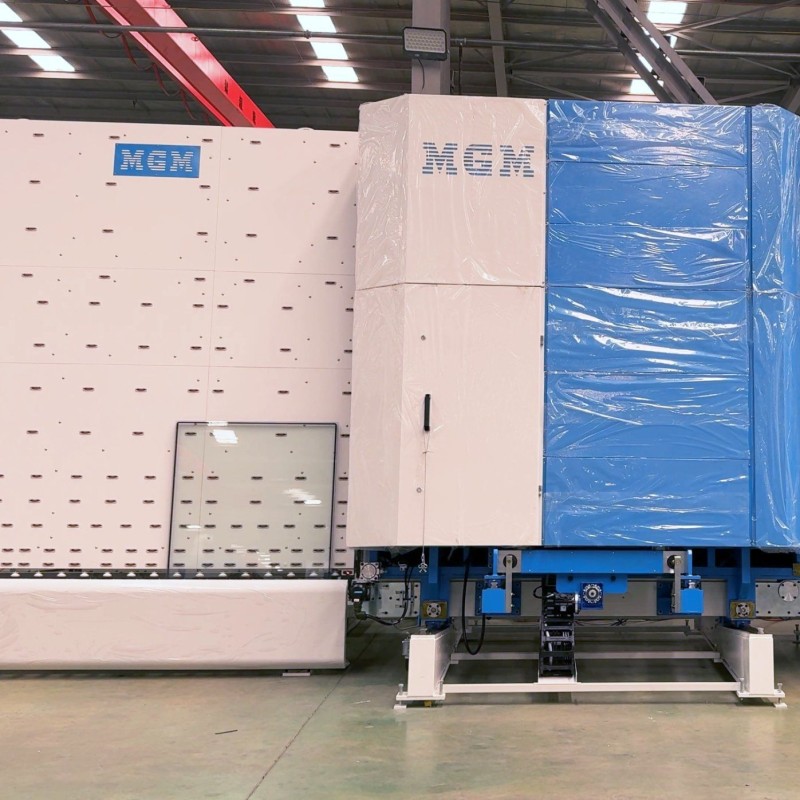

  • Gas filling pressing: rapid argon gas filling over 90% efficiency, precise lamination, servo-controlled, and high pressure accuracy

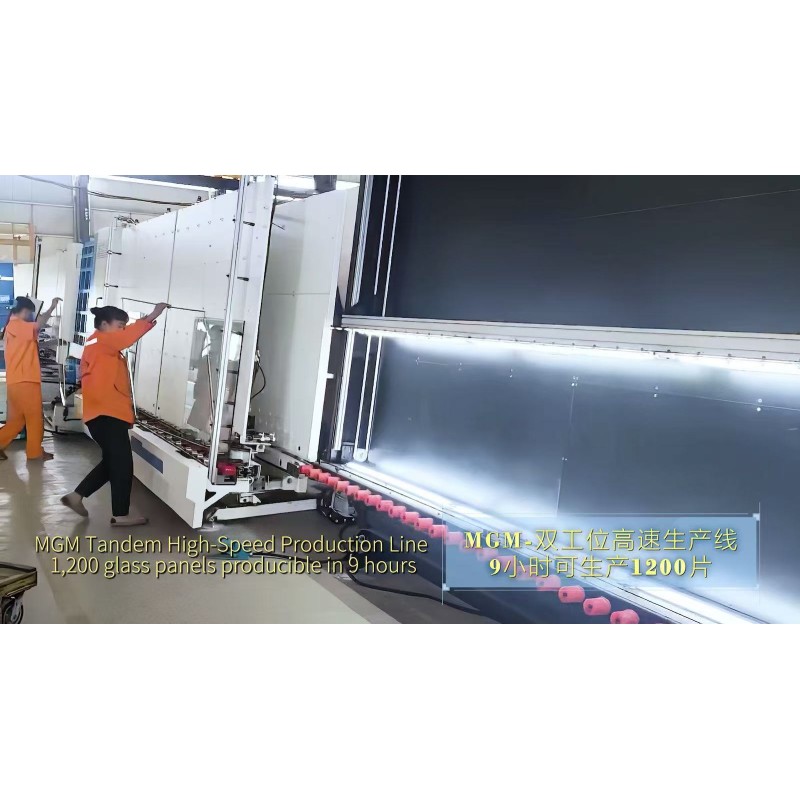

  • Tandem inspection station enables simultaneous inspection of two IG units
  • Tandem spacer placement station with front & rear plate allows simultaneous glass transfer on the rear plate while placing spacers on the front

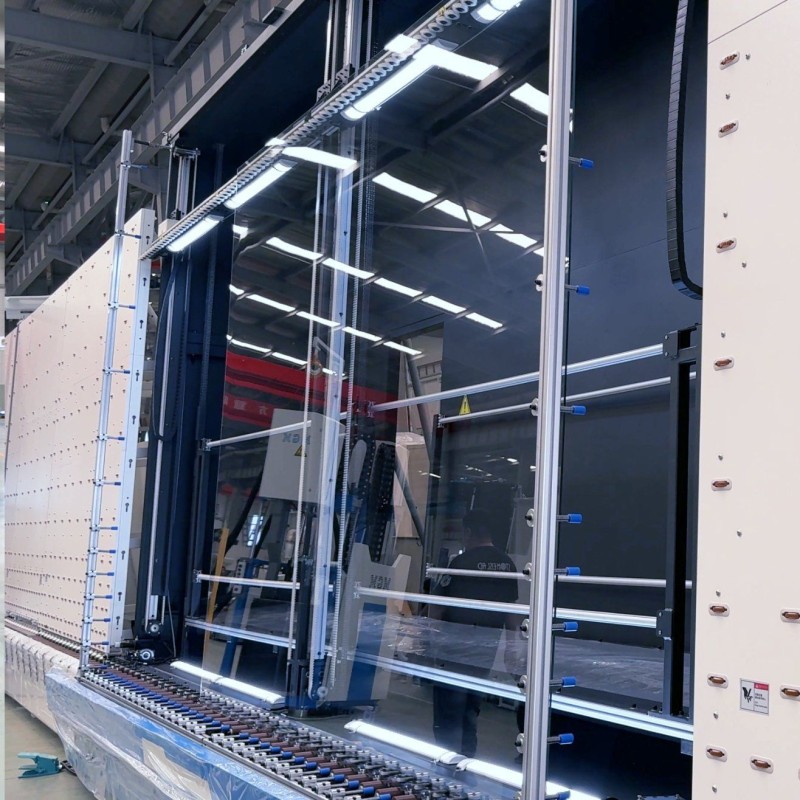

  • Tandem gas filling and pressing enables concurrent argon gas filling and lamination of two IG units
