Jumbo Size Insulating Glass Line
Jumbo Size Insulating Glass Line
Specifications
Description

Master the large-scale glass market with our heavy-duty Jumbo Insulating Glass Production Line.

Built to handle extra-large and heavy glass panels with absolute stability and precision, this line is engineered for producing monumental IGUs used in modern curtain walls and architectural facades. It features reinforced conveying systems, oversized washing and pressing stations, and powerful sealing units to guarantee consistent quality and structural integrity for jumbo formats. If your projects demand grand, energy-efficient vistas without compromising on performance, our jumbo line provides the reliable, industrial-strength capacity you need to lead in the commercial and architectural glass sector.

Technical Data
Min Size 300*500mm
Washing Speed 1-10m/min
Transport Speed 1-50m/min
Transport Height 550-650mm
Power Supply ≈95kW
IG Types Double glazing, Triple glazing
Options In-panel gas filling
Model ZC27/70 ZC33/70
Max Size 3300*7000mm 3300*12000mm
Glass Thickness 3-18mm 5-28mm
IG Thickness ＜56mm ＜75mm

Key Features

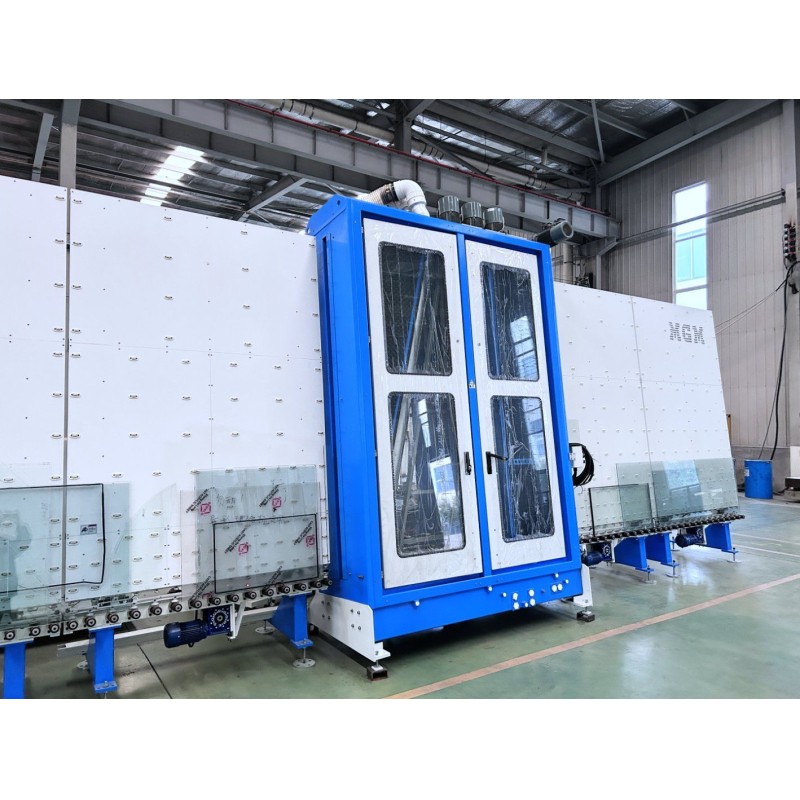

  • High glass washing quality: fast cleaning speed, low noise, sand and carbon filters with soft coated LOWE brushes and air knives ensuring a water-free glass surface with no scratches
  • Inspection and spacer placement station featuring a specially treated coating to reduce glare and enable comprehensive inspection

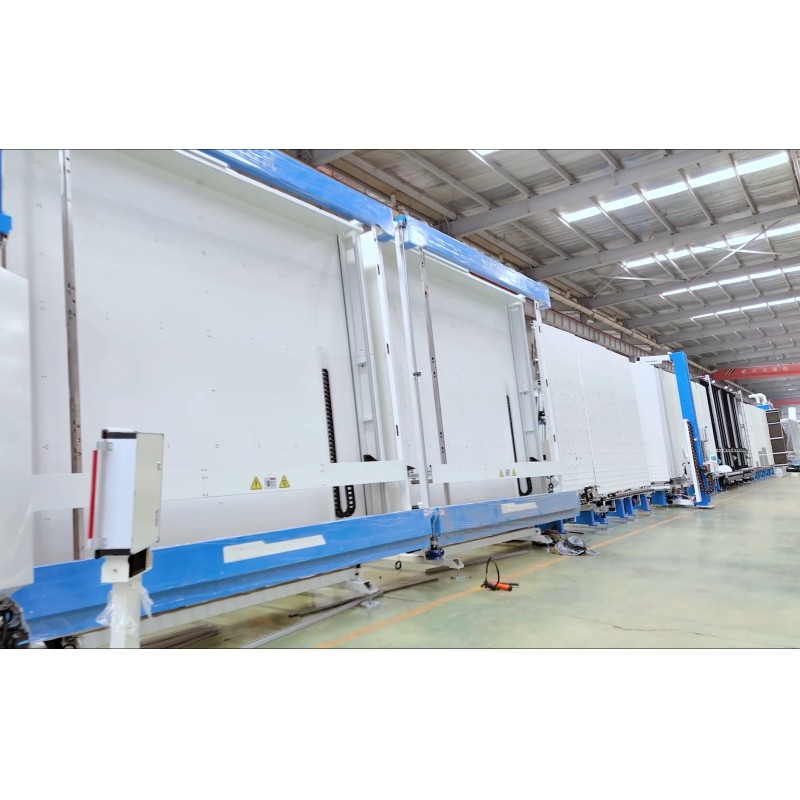

  • Gas filling pressing: rapid argon gas filling over 90% efficiency, precise lamination, servo-controlled, and high pressure accuracy
  • Thermal aging treatment ensuring long-term frame stability with no deformation
  • High-precision gantry machining center guaranteeing superior structural machining accuracy

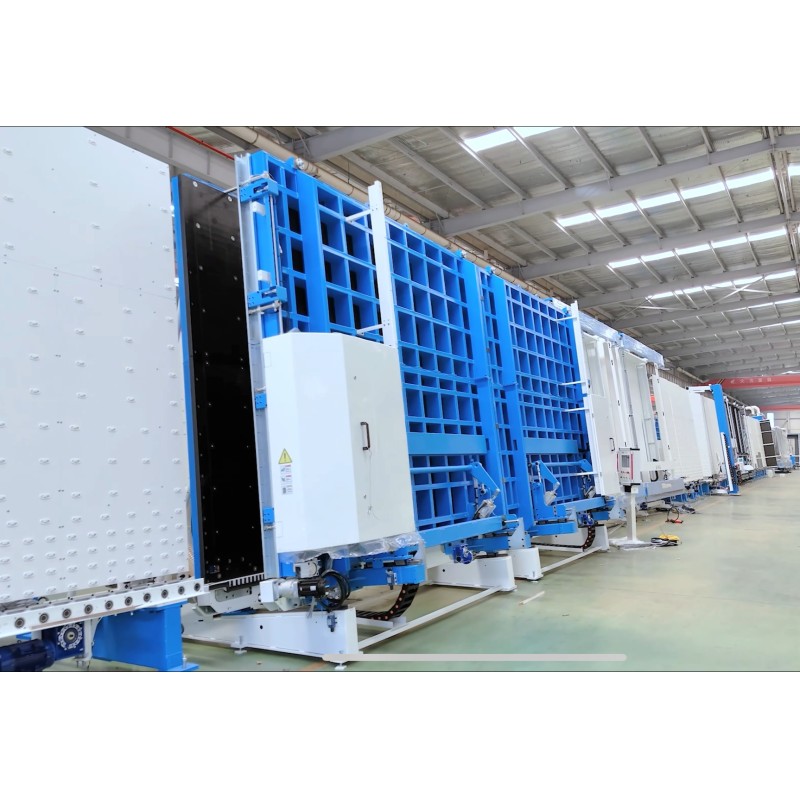

  • Single-piece pressing panel design ensuring even and consistent pressing flatness
