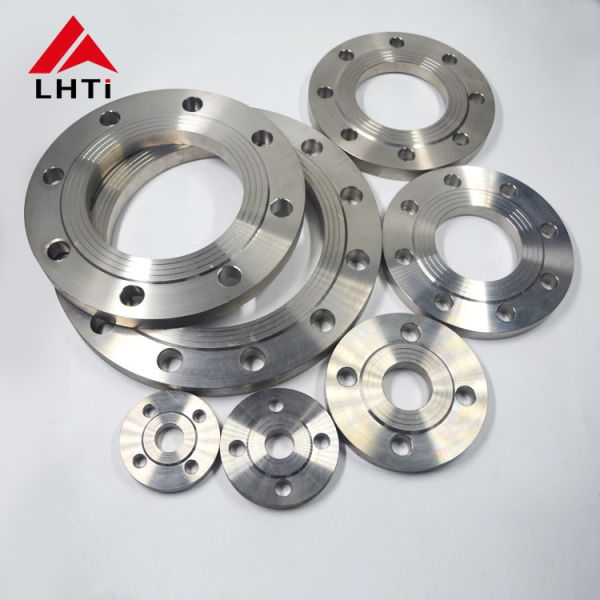

DIN2501 Gr2 PN10 Titanium Plate Flange PL Flange for High Strength and Corrosion Resistance in Pipeline Systems
DIN2501 Gr2 PN10 Titanium Plate Flange PL Flange for High Strength and Corrosion Resistance in Pipeline Systems
Specifications
Brand Name :
LHTi
Model Number :
Titanium Plate Flange
Certification :
ISO9001, TUV etc.
Place of Origin :
BaoJi, China
MOQ :
1-5 pieces
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
3-15 working days
Packaging Details :
Plywood case or pallet etc.
Product Standard :
DIN 2501 Titanium Plate Flange
Materials :
Titanium Metal Titanium Alloy
Material Grade :
Titanium Grade 2, Grade 12 and others
Features :
High strength, good corrosion resistance
Sizes :
1/2''~80''(DN10~3600)
Face Types :
RF, FF, TG, RJ Etc.
Processes :
Casting, Forging, Machining, Etc.
Surface Treatment :
Polishing, Sandblasting, Anodizing, Etc.
Description

DIN2501 Gr2 PN10 Titanium Plate Flange PL Flange Pipe Flange Plate PLFF PLRF for Pipeline Systems


Grades of DIN 2501 Titanium Plate Flange


  1. Commercially Pure Titanium:

    • Grade 2 (UNS R50400): This is the most widely used grade of titanium due to its excellent corrosion resistance, formability, and weldability. It is suitable for a wide range of industrial applications where moderate strength and good corrosion resistance are required.

  2. Titanium Alloys:

    • Grade 5 (Ti-6Al-4V, UNS R56400): This is the most commonly used titanium alloy, known for its high strength, lightweight properties, and excellent corrosion resistance. It is used in aerospace, marine, and chemical processing industries.
    • Grade 7 (UNS R52400): Known for its excellent weldability and corrosion resistance in reducing and mildly oxidizing environments, Grade 7 titanium is often used in chemical processing equipment.
    • Grade 12 (UNS R53400): This titanium alloy offers excellent corrosion resistance in highly oxidizing environments and is well-suited for chemical processing and marine applications.
    • Grade 23 (Ti-6Al-4V ELI, UNS R56401): Similar to Grade 5, but with extra low interstitial (ELI) content, Grade 23 titanium alloy is used in medical and aerospace applications where biocompatibility and high strength are required.


DIN2501 Gr2 PN10 Titanium Plate Flange PL Flange for High Strength and Corrosion Resistance in Pipeline Systems


Specifications for DIN2501 PN10 Titanium Plate Flange


Nominal Pipe Size

Diameter of

Flange Dia

Flange I.D

Thk of Flanges

Dia of Bolt Cirlce

No. of

Dia of Bolt Holes

Weight

PLATE

BLIND

DN

Pipe

D

D5

B

K

holes

D2

KG

KG
15 21.30 95 22.00 14 65 4 14 0.67 0.71
20 26.90 105 27.60 16 75 4 14 0.93 1.01
25 33.70 115 34.40 16 85 4 14 1.11 1.23
32 42.40 140 43.10 16 100 4 18 1.62 1.81
40 48.30 150 49.00 16 110 4 18 1.85 2.09
50 60.30 165 61.10 18 125 4 18 2.46 2.88
65 76.10 185 77.10 18 145 4 18 2.99 3.65
80 88.90 200 90.30 20 160 8 18 3.61 4.61
100 114.30 220 115.90 20 180 8 18 3.99 5.65
125 139.70 250 141.60 22 210 8 18 5.41 8.13
150 168.30 285 170.50 22 240 8 22 6.55 10.44
175 193.70 315 196.10 24 270 8 22 8.42
200 219.10 340 221.80 24 295 12 22 8.97 16.48
250 273.00 405 276.20 26 355 12 26 12.76 23.99
300 323.90 460 327.60 28 410 12 26 16.60 30.73
350 355.60 520 359.70 30 470 16 26 24.08 42.56
400 406.40 580 411.00 32 525 16 30 30.20 60.68
450 457.00 640 462.30 38 585 20 30 41.67 71.74
500 508.00 715 513.60 38 650 20 33 52.87 96.4
600 610.00 840 616.50 42 770 20 36 77.58 145.6
700 711.00 910 716.00 44 840 24 36 77.13
800 813.00 1025 818.00 50 950 24 39 106.35
900 914.00 1125 920.00 54 1050 28 39 125.39
1000 1016.00 1255 1022.00 60 1170 28 42 177.99
