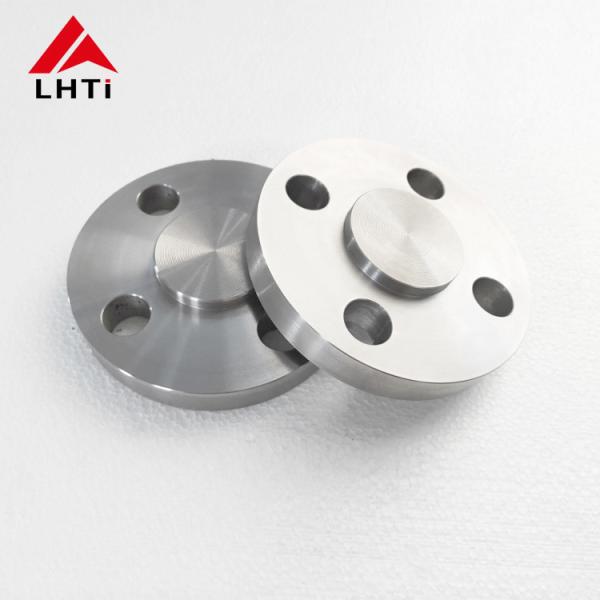

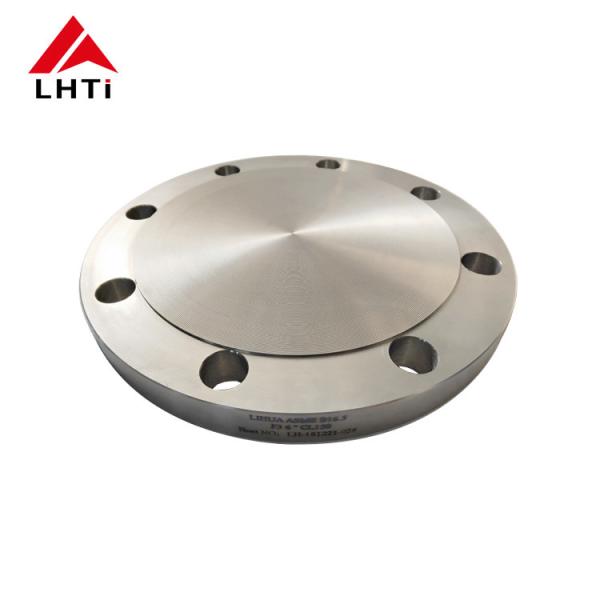

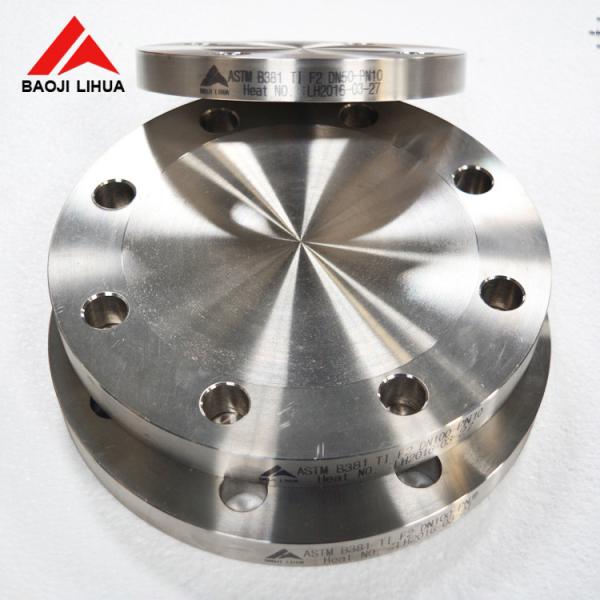

Customized ASTM B16.5 Gr2 Titanium Blind Flange
Customized ASTM B16.5 Gr2 Titanium Blind Flange
Customized ASTM B16.5 Gr2 Titanium Blind Flange
Customized ASTM B16.5 Gr2 Titanium Blind Flange
Customized ASTM B16.5 Gr2 Titanium Blind Flange
Customized ASTM B16.5 Gr2 Titanium Blind Flange
Specifications
Brand Name :
LIHUA
Model Number :
LH-BL
Certification :
ISO9001, TUV etc.
Place of Origin :
Baoji, China
MOQ :
1 piece
Price :
US dollar $30/pc--US dollar $80/pc
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
3-15 work days
Packaging Details :
Wrapped by foam contained in plywood box for export
Product name :
Ansi titanium blind flange
Standard :
ANSI B16.5
Material :
Gr2, Gr7, Gr12
Application :
Chemical industry
Sealing surface :
RF
Size :
NPS 1/2" - NPS 24"(DN 10 - 2000)
Pressure :
150#-2500#
Surface :
Polished
Technique :
Froged and CNC Machined
Inspection :
Ultrasonic Testing & Material Test Report EN10204.3.1
Description
Customized ASTM B16.5 Gr2 Titanium Blind Flange For Chemical Industry
Titanium Blind Flanges
BL flange, also known as blind flange, is a connection form of flange without a hole in the middle. It serves two primary functions: blocking the end of pipelines and facilitating pipeline maintenance by allowing easy removal of debris. While it provides the same blocking effect as caps and plugs, blind flanges offer superior convenience as they are bolted in place for easy disassembly.
Customized ASTM B16.5 Gr2 Titanium Blind Flange
Product Specifications
Material Grade: Gr2, Gr7, Gr12
Certification: ISO9001:2018, BV
Standard: ANSI B16.5, ASTM B16.5, JIS B2220, DIN2627-2628, ASME, GB/T 9116
Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure Class: PN0.25~32Mpa (DIN) PN6,PN10,PN16,PN25 though PN250
Pressure Ratings: 150LB, 250LB, 300LB, 400LB, 500LB, 600LB, 900LB, 1500LB, 2500LB
Technique: Forged and CNC Machined
Type: WNRF, SORF, BLIND, SW, PL
Flange Surface: FF, RF, TG, RJ etc
Applications: Used in cars, glasses, medical equipment, electronics, petrochemical equipment
Product Advantages
  • Long service life
  • Excellent corrosion resistance
  • High yield strength and tensile strength
Quality Tests
  • Visual testing (VT)
  • Ultrasonic Testing (UT)
  • Radiographic Testing (RT)
  • Magnetic particle testing (MT)
  • Penetrant Testing/Dye penetrate (PT)
  • Eddy Current testing (ET)
  • Acoustic Emission (AE)
Customized ASTM B16.5 Gr2 Titanium Blind Flange
Titanium Blind Flange Class 150 Dimensions
Nom. Pipe Size Flange Dia. Flange Thick Raised Face Dia. No. of Holes Dia. of Bolts Dia. Of Bolt Circle
1/2 3-1/2 7/16 1-3/8 4 1/2 2-3/8
Titanium Blind Flange Class 300 Dimensions
Nom. Pipe Size Flange Dia. Flange Thick Raised Face Dia. No. of Holes Dia. Of Bolts Dia. Of Bolt Circle
1/2 3-3/4 9/16 1-3/8 4 1/2 2-5/8
