Grade 2 Titanium Blind Flange RF Weld Neck Flange ANSI B16.5
Grade 2 Titanium Blind Flange RF Weld Neck Flange ANSI B16.5
Specifications
Brand Name :
LH-Ti
Model Number :
LH-BL
Certification :
ISO9001, TUV etc.
Place of Origin :
Baoji, China
MOQ :
1 piece
Price :
US dollar $30/pc--US dollar $80/pc
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
3-15 work days
Packaging Details :
Wrapped by foam contained in plywood box for export
Product name :
Ansi titanium blind flange
Standard :
ANSI B16.5
Material :
gr2, gr7, gr12
Application :
Chemical industry
Sealing surface :
RF
Size :
NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure :
150#-2500#
Surface :
Polished
Technique :
Froged and CNC Machined
Inspection :
Ultrasonic Testing & Material Test Report EN10204.3.1
Description
Grade 2 Titanium Blind Flange RF Weld Neck Flange ANSI B16.5
Grade 2 Titanium Blind Flange RF Weld Neck Flange ANSI B16.5 is widely used in water conservancy, electric power, power stations, pipe fittings, industrial applications, and pressure vessels. Titanium flanges are manufactured using forging processes with titanium material, making them ideal for mechanical and chemical industries. In addition to titanium flanges, we also manufacture nickel and zirconium flanges.
ASME B16.47 Titanium Flange Specifications
Material: Titanium GR1, GR2, GR7, GR11, GR12 (F2, F7, F11, F12)
Type: Plate Flange, Flat Flange, Slip on Flange, Welding Neck Flange, Long Welding Neck Flange, Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange, etc.
Connection Type: Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large tongue groove, Small tongue groove, etc.
Size: 1-1/2" to 120" (DN40 to DN3000)
MOQ: 1 piece
Price Term: EXW factory, FOB, C&F, CIF
Payment Term: T/T, L/C, West Union, Money Gram, etc.
Package: Standard export plywood case or as requested
Applications
Typically used in construction, petroleum, chemical industry, power generation, ship building, paper making, metallurgy, water supply and sewage work, light and heavy industry, plumbing, and electrical applications.
Export Markets: USA, Canada, Australia, Singapore, Indonesia, Hong Kong, Oman, Vietnam, etc.
Physical Properties
Grade Tensile Strength (min) Yield Strength (min) Elongation (%)
GR1 35 ksi / 240 MPa 20 ksi / 138 MPa 24
GR2 50 ksi / 345 MPa 40 ksi / 275 MPa 20
GR5 130 ksi / 895 MPa 120 ksi / 828 MPa 10
GR7 50 ksi / 345 MPa 40 ksi / 275 MPa 20
GR9 90 ksi / 620 MPa 70 ksi / 438 MPa 15
GR12 70 ksi / 438 MPa 50 ksi / 345 MPa 18
Product Images

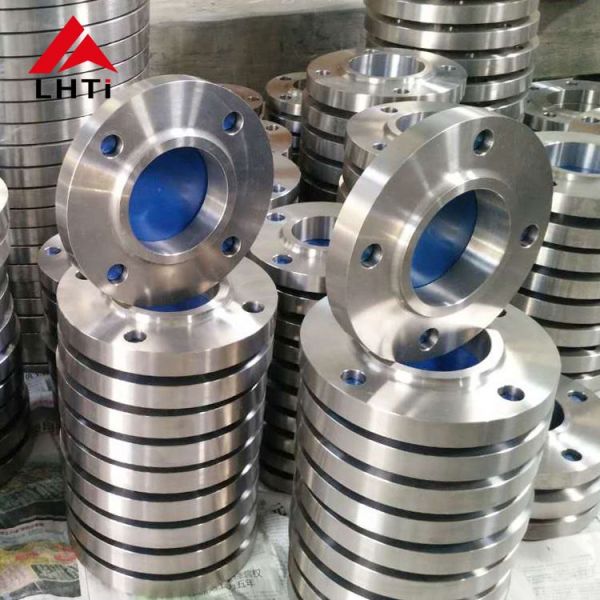

Grade 2 Titanium Blind Flange RF Weld Neck Flange ANSI B16.5
