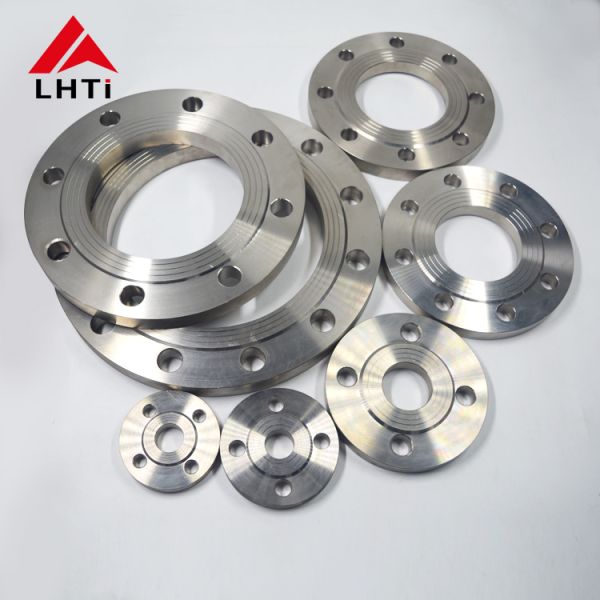

titanium flange PL DN40 RF25 ansi flange
titanium flange PL DN40 RF25 ansi flange
titanium flange PL DN40 RF25 ansi flange
titanium flange PL DN40 RF25 ansi flange
titanium flange PL DN40 RF25 ansi flange
titanium flange PL DN40 RF25 ansi flange
titanium flange PL DN40 RF25 ansi flange
titanium flange PL DN40 RF25 ansi flange
Specifications
Brand Name :
LH-Ti
Model Number :
LH-BL
Certification :
ISO9001, TUV etc.
Place of Origin :
Baoji, China
MOQ :
1 piece
Price :
US dollar $30/pc--US dollar $80/pc
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
3-15 work days
Packaging Details :
Wrapped by foam contained in plywood box for export
Type :
WN , SO , BL ,SW, PL, Lap joint, customized.
Standard :
ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5
Material :
Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Application :
used in cars, glasses,medical equipment , electronics , petrochemical equ ipment,Pump valve, pipeline, aerospace,Ocean Industry,etc.
Sealing surface :
RF
Size :
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure :
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, etc/
Surface :
Polished
Technique :
Forged and CNC Machined.
Inspection :
Ultrasonic Testing & Material Test Report EN10204.3.1
Description
Titanium Flange PL DN40 RF25 ANSI Flange
High-performance titanium flange designed for demanding industrial applications requiring exceptional corrosion resistance and strength-to-weight ratio.
Product Specifications
Standards: ANSI, ASME, DIN, BS, JIS, GB, ISO
Materials: Gr1, Gr2, Gr5, Gr7, Gr12 Titanium
Types: BL, WN, SO, TH
Size Range: 1/2" - 60" (DN15 - DN1200)
Pressure Classes: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
Connection Type: RF (Raised Face)
Manufacturing Process: Forged, CNC Machined
Chemical Composition Requirements
Grade N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal
Tensile Strength Requirements
Grade Tensile Strength (min) Yield Strength Elongation (%)
1 35 KSI / 240 MPa 20 Ksi / 138 MPa 24
2 50 KSI / 345 MPa 40 Ksi / 275 MPa 20
5 130 KSI / 895 MPa 120 Ksi / 828 MPa 10
7 50 KSI / 345 MPa 40 Ksi / 275 MPa 20
12 70 KSI / 438 MPa 50 Ksi / 345 MPa 18
