ASME B16.5 Titanium Flange with Material Test Report EN10204.3.1
ASME B16.5 Titanium Flange with Material Test Report EN10204.3.1
ASME B16.5 Titanium Flange with Material Test Report EN10204.3.1
ASME B16.5 Titanium Flange with Material Test Report EN10204.3.1
Specifications
Brand Name :
LH-Ti
Model Number :
LH-BL
Certification :
ISO9001, TUV etc.
Place of Origin :
Baoji, China
MOQ :
1 piece
Price :
US dollar $30/pc--US dollar $80/pc
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
3-15 work days
Packaging Details :
Wrapped by foam contained in plywood box for export
Product name :
Ansi titanium blind flange
Standard :
ANSI B16.5
Material :
gr2, gr7, gr12
Application :
Chemical industry
Sealing surface :
RF
Size :
NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure :
150#-2500#
Surface :
Polished
Technique :
Froged and CNC Machined
Inspection :
Ultrasonic Testing & Material Test Report EN10204.3.1
Description

ASME B 16.5 Ti gr2 titanium WN RF pipe flange oil & gas industry flange



Chemical requirements

N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal


Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)

KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18

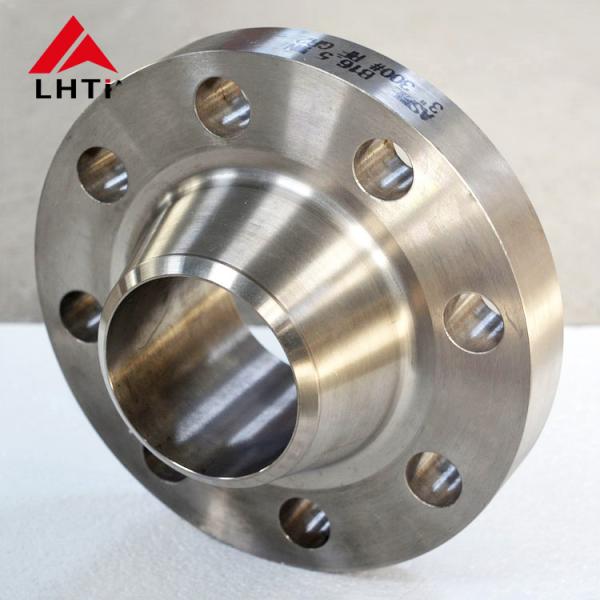

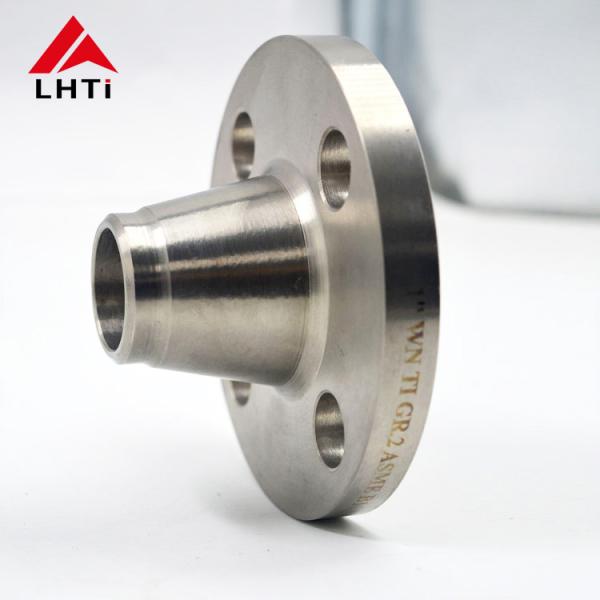

Product picture:


ASME B16.5 Titanium Flange with Material Test Report EN10204.3.1ASME B16.5 Titanium Flange with Material Test Report EN10204.3.1
