Gr2 Gr7 Gr12 Titanium Elbow 90 Degree For Pipe Fitting Connetion
Gr2 Gr7 Gr12 Titanium Elbow 90 Degree For Pipe Fitting Connetion
Gr2 Gr7 Gr12 Titanium Elbow 90 Degree For Pipe Fitting Connetion
Gr2 Gr7 Gr12 Titanium Elbow 90 Degree For Pipe Fitting Connetion
Gr2 Gr7 Gr12 Titanium Elbow 90 Degree For Pipe Fitting Connetion
Gr2 Gr7 Gr12 Titanium Elbow 90 Degree For Pipe Fitting Connetion
Specifications
Brand Name :
LHTi
Model Number :
LH-Ti10
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
5 pcs
Payment Terms :
L/C,D/P, T/T etc.
Delivery Time :
15-30 Days
Packaging Details :
Standard export packing,plywood case outside
Product name :
Gr2 titanium elbow 90 degree
Material :
TA0,TA1,TA2,TA9,TA10,BT1-00,BT1-0,Gr1,Gr2
Standard :
ASTM 337 338,
OD :
1/8" to 48"
Wall thickness :
Sch5s to Sch160
Processing :
Push
Applications :
Pipe fitting connetion
Third party test :
Available
Processing Service :
Bending, Welding, Decoiling, Cutting, Punching, Forged
Description

Gr2 Gr7 Gr12 titanium elbow 90 degree price

Titanium elbow has the advantages of smooth inner wall, small heat medium flow resistance, acid and alkali resistance, long service life and convenient installation. Widely used in chemical industry, petroleum, light and heavy industry, electric power, aerospace, shipbuilding and other basic engineering.

Gr2 Gr7 Gr12 Titanium Elbow 90 Degree For Pipe Fitting Connetion

Product Name: Titanium Elbow

Standard: ASME B16.9 ASME B363

Material: Gr1, Gr2, Gr7, Gr12

Outer Diameter: 1/2"-48"

Wall Thickness: Sch5s-Sch160s

Type: Seamless/Welded

Technique: Extruded,welded

MOQ:5 PCS

Delivery time:

If in stock, 3-54 working days

If need to manufacture, 15-35 working days

Tensile Strength(min)

Yeild Strength(min)

Elongation(%)

ksi

MPa

ksi

MPa

Grade 1

35

240

20

138

24

Grade2

50

345

40

275

20

Grade 7

50

345

40

275

20

Grade 12

70

483

50

345

18

Titanium elbows quality inspections:

Dimention inspection, Tensile testing, UT ,PT ,Chemical composition inspection,

Hydrodtatic test, Eddy current inspection,Radiographic inspection,Thickness inspection,PMI inspection

Titanium 90 Degree Elbow Data

Schedule 10S Light N.P.S. Schedule 40S Standard N.P.S.
Nominal Pipe Size Outside Diameter Center to Face Inside Diameter Wall Thickness Approx. Wt. in Lbs./Kgs. Inside Diameter Wall Thickness Approx. Wt in Lbs./Kgs.
in mm in mm in mm in mm in mm lb kg in mm in mm lb kg
1/2″ 15 0.84 21.34 1.50 38.10 0.67 17.12 0.08 2.11 0.08 0.04 0.62 15.80 0.11 2.77 0.10 0.05
3/4″ 20 1.05 26.67 1.13 28.58 0.88 22.45 0.08 2.11 0.09 0.04 0.82 20.93 0.11 2.87 0.11 0.05
1″ 25 1.32 33.40 1.50 38.10 1.10 27.86 0.11 2.77 0.17 0.08 1.05 26.64 0.13 3.38 0.20 0.09
1-1/4″ 32 1.66 42.16 1.88 47.63 1.44 36.63 0.11 2.77 0.29 0.13 1.38 35.05 0.14 3.56 0.32 0.15
1-1/2″ 40 1.90 48.26 2.25 57.15 1.68 42.72 0.11 2.77 0.39 0.18 1.61 40.89 0.15 3.68 0.50 0.23
2″ 50 2.38 60.33 3.00 76.20 2.16 54.79 0.11 2.77 0.65 0.29 2.07 52.50 0.15 3.91 0.89 0.40
2-1/2″ 65 2.88 73.03 3.75 95.25 2.64 66.93 0.12 3.05 1.08 0.49 2.47 62.71 0.20 5.16 1.72 0.78
3″ 80 3.50 88.90 4.50 114.30 3.26 82.80 0.12 3.05 1.54 0.70 3.07 77.93 0.22 5.49 2.75 1.25
3-1/2″ 90 4.00 101.60 5.25 133.35 3.76 95.50 0.12 3.05 2.14 0.97 3.55 90.12 0.23 5.74 3.57 1.62
4″ 100 4.50 114.30 6.00 152.40 4.26 108.20 0.12 3.05 2.72 1.23 4.03 102.26 0.24 6.02 5.26 2.39
5″ 125 5.56 141.30 7.50 190.50 5.30 134.49 0.13 3.40 4.58 2.08 5.05 128.19 0.26 6.55 8.65 3.92
6″ 150 6.63 168.28 9.00 228.60 6.36 161.47 0.13 3.40 6.86 3.11 6.07 154.05 0.28 7.11 13.75 6.24
8″ 200 8.63 219.08 12.00 304.80 8.33 211.56 0.15 3.76 13.50 6.12 7.98 202.72 0.32 8.18 27.00 12.24
10″ 250 10.75 273.05 15.00 381.00 10.42 264.67 0.17 4.19 25.00 11.34 10.02 254.51 0.37 9.27 48.50 22.00
12″ 300 12.75 323.85 18.00 457.20 12.39 314.71 0.18 4.57 34.00 15.42 12.00 304.80 0.38 9.53 75.00 34.01
14″ 350 14.00 355.60 21.00 533.40 13.62 346.05 0.19 4.78 46.00 20.86 13.25 336.55 0.38 9.53 89.00 40.36
16″ 400 16.00 406.40 24.00 609.60 15.62 396.85 0.19 4.78 60.00 27.21 15.25 387.35 0.38 9.53 116.00 52.61
18″ 450 18.00 457.20 27.00 685.80 17.62 447.65 0.19 4.78 75.00 34.01 17.25 438.15 0.38 9.53 154.00 69.84
20″ 500 20.00 508.00 30.00 762.00 19.56 496.93 0.22 5.54 126.00 57.14 19.25 488.95 0.38 9.53 189.00 85.71
24″ 600 24.00 609.60 36.00 914.40 23.50 596.90 0.25 6.35 177.00 80.27 23.25 590.55 0.38 9.53 265.00 120.18

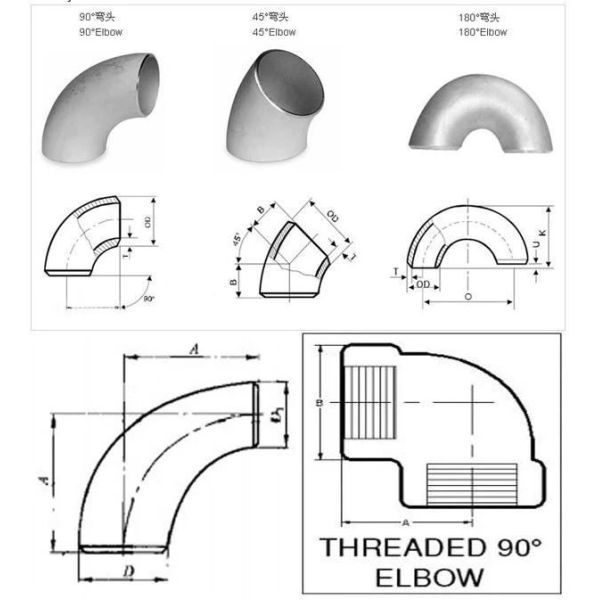

Detailed images:

Gr2 Gr7 Gr12 Titanium Elbow 90 Degree For Pipe Fitting ConnetionGr2 Gr7 Gr12 Titanium Elbow 90 Degree For Pipe Fitting ConnetionGr2 Gr7 Gr12 Titanium Elbow 90 Degree For Pipe Fitting Connetion

Baoji Lihua Non-ferrous Metals Co.,Ltd found in 2006, lies in Baoji city--"The Titanium Valley of China. We are specialized in manufacturing, reaseaching and marketing titanium. All our products are mainly exported to Europe, USA, Australia, Middle East and South East Asia. Besides, our products are manufactured either in accordance with the leading regulatory international and domestic standards, such as the ASME, ANSI, EN, DIN, BS, NF, JIS, AS, KS, GB, JB, HG, SH standards, or according to the drawings specified by purchasers. For the material, we mainly produce titanium and titanium alloy, nickel and nickel alloy.


Exhibitions and customer visits:

Gr2 Gr7 Gr12 Titanium Elbow 90 Degree For Pipe Fitting Connetion

Welcome to contact and visit us in any time!
