Gr1 Gr2 90 Degree Titanium Elbow Long Radius DN50 Chemical Industry Use
Gr1 Gr2 90 Degree Titanium Elbow Long Radius DN50 Chemical Industry Use
Gr1 Gr2 90 Degree Titanium Elbow Long Radius DN50 Chemical Industry Use
Gr1 Gr2 90 Degree Titanium Elbow Long Radius DN50 Chemical Industry Use
Gr1 Gr2 90 Degree Titanium Elbow Long Radius DN50 Chemical Industry Use
Gr1 Gr2 90 Degree Titanium Elbow Long Radius DN50 Chemical Industry Use
Specifications
Brand Name :
LH-Ti
Model Number :
90° elbow
Certification :
EN10204.3.1,SGS,TUV,BV
Place of Origin :
Baoji, Shaanxi, China
MOQ :
1 PCS
Price :
$ 9.5- $ 150.5 per PC
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
100000 pcs per month
Delivery Time :
15 - 25 days
Packaging Details :
Standard exporting packaging
Standard :
ANSI / ASME B363, ANSI / ASME B16.9
Material grade :
Titanium gr1 gr2
OD :
1/2"-36"
Wall thickness :
1.0-18mm
Type :
Seamless ,welded
Surface :
Pickled, polished
MOQ :
1 pcs
Application :
Chemical industry
Description

ASTM B16.9 ASTM B363 gr1 gr2 Titanium elbows 90 degree deg long radius DN50

Product name: Titanium elbow

Degree:45 degree 90 degree 180 degree

Type:Short radius and long radius
Grade: Gr1, Gr2

Standard: ANSI / ASME B363, ANSI / ASME B16.9

Specifications(size): DN15-1200 (NPS: 1 / 2-36 inches)

Wall thickness: 1-18mm (Sch 5s to Sch 80s)

Manufacturing process: push, butt welding, polishing, lathe processing, pickling, sanding

Features: high corrosion resistance (tensile strength 686-1176MPA), low density (density 4.51KG / m3),

superior mechanical properties, excellent toughness and corrosion resistance, good plasticity, high melting

point (≈1660 ℃).

Application areas: chemical industry, petroleum , nuclear power industry etc.

Specifications
Nominal diameter DN
Diameter of mm
Grade
3/8
17.1
Gr1 Gr2
1/2
21.3
Gr1 Gr2
1
33.4
Gr1 Gr2
1 1/4
42.2
Gr1 Gr2
1 1/2
73.0
Gr1 Gr2
2
60.3
Gr1 Gr2
2 1/2
73.0
Gr1 Gr2
3
88.9
Gr1 Gr2
3 1/2
101.6
Gr1 Gr2
4
114.3
Gr1 Gr2
5
141.3
Gr1 Gr2
6
168.3
Gr1 Gr2
8
219.1
Gr1 Gr2
10
273.1
Gr1 Gr2
12
323.9
Gr1 Gr2
14
355.6
Gr1 Gr2
16
406.4
Gr1 Gr2
18
457.2
Gr1 Gr2
...
...
Gr1 Gr2
Specific pipe thickness and diameter can be customized according to customers' requirements

Gr1 and gr2 titanium

Titanium in grade 1 and 2 is used in the chemical industry and marine technology,because of its resistance to corrosion.In addition, titanium grade 1/2 is also used in plant engineering, medical technology and in thewatch and jewelery industries.

Chemical composition (Wt%)

ASTM No. Fe max O max N max C max H max Pd Al Bal
Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti
Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti

Physical Properties (Min)

ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min %
ksi Mpa ksi Mpa
Grade 1 Pure titanium 35 240 25 170 30
Grade 2 Pure titanium 58 400 40 275 25

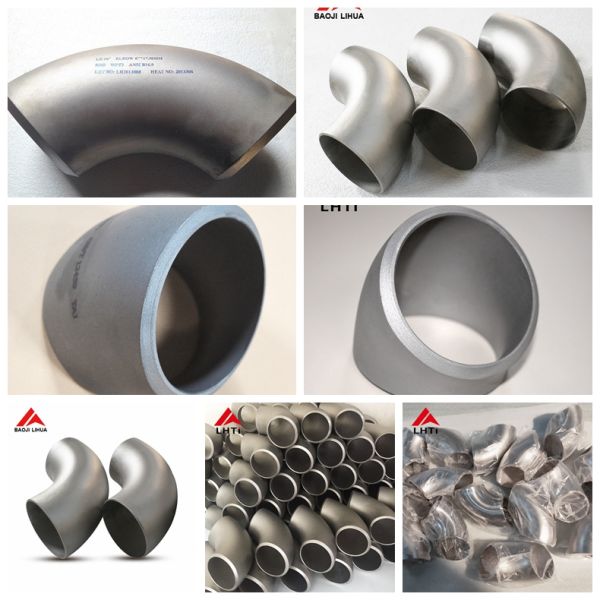

Detailed pictures:

Gr1 Gr2 90 Degree Titanium Elbow Long Radius DN50 Chemical Industry Use

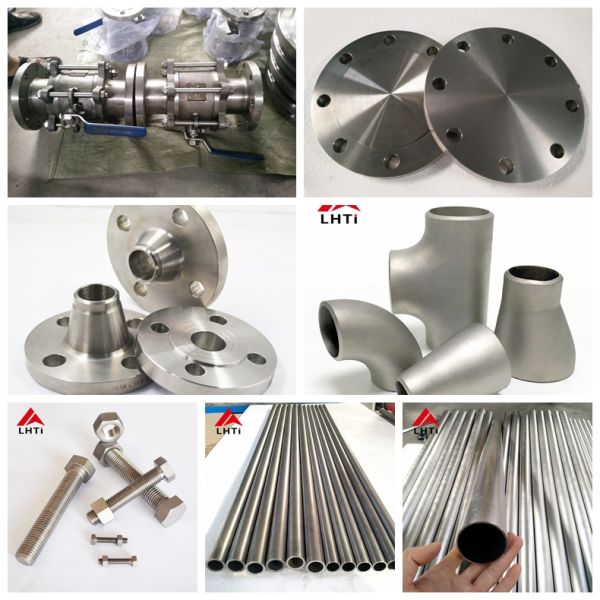

Related titaium pipe fittings and other products:

Titanium valves, titanium flanges, titanium reducers, titanium tees, pipes/tubes, titanium fasteners etc.

Gr1 Gr2 90 Degree Titanium Elbow Long Radius DN50 Chemical Industry Use

Gr1 Gr2 90 Degree Titanium Elbow Long Radius DN50 Chemical Industry UseBaoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing Titanium, called “China Titanium Valley”.We are specialized in manufacturing, researching and marketing for titanium mill products and equipment. With 10 years export Experience, our products was sold to Asia, Europe, North America in large quantity.In addition to provide preferential price for customers, we pay much attention to

quality, and have a good after-sales service.All products we produced are based on the standard: German standard ,Aerospace standard, European standard, etc. Including ANSI B16.5, ASTM B16.5, ASME B16.47, JIS B2220, DIN2627-2628.Lihua is certified by

ISO9001:2015, TUV and IQNET. Our company's products have passed SGS,BV, LR'S ,TUV and other international inspection agency inspection.

Welcome to contact!
