Seamless / Welded 90 Degree Titanium Elbow ASME B16.9
Seamless / Welded 90 Degree Titanium Elbow ASME B16.9
Seamless / Welded 90 Degree Titanium Elbow ASME B16.9
Seamless / Welded 90 Degree Titanium Elbow ASME B16.9
Seamless / Welded 90 Degree Titanium Elbow ASME B16.9
Seamless / Welded 90 Degree Titanium Elbow ASME B16.9
Specifications
MOQ :
10pcs
Price :
USD30-50 per kg
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5 Ton per month
Delivery Time :
10-15 days
Packaging Details :
Wooden case or as per client requirement
Standard :
ASME B16.9
Material :
Gr1, Gr2, Gr7, Gr12
Unit Price :
$10usd/pc-$200usd/pc
MOQ :
5PC
Factory Area :
3000 ㎡
Company staff :
48
Foreign trade team service staff :
20China's professional titanium pipe fittings manufacturer Send Inquiry
Diameter :
1/2"-48"
Wall Thickness :
Sch5s-Sch160s
Technique :
Seamless/Welded
Description

Seamless / Welded 90 Degree Titanium Elbow ASME B16.9

Grade: GR1 GR2 GR7 GR12

Standard: ASTM B363, ASME SB363, ASME B16.9, ANSI B16.9, JIS, ISO, BS, DN etc.

Type: Long radius, Short radius

Technique: Seamless, Welded

Outer Diameter: 1/2"-48"(DN15-DN1200)

Wall Thickness: Sch5s-Sch160s

Chemical compositions:

Grade Fe max O max N max C max H max Pd Al V Mo Ni Elong'n

Σb

(Mpa)

σr0.2

(Mpa)
No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa
Grade 1 0.2 0.18 0.03 0.1 0.015 24 240 140
Grade 2 0.3 0.25 0.03 0.1 0.015 20 400 275
Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 20 400 275
Grade 12 0.3 0.25 0.03 0.1 0.015 0.3 0.8 18 460 300

Applications of Titanium Elbows

  • Off-Shore Oil Drilling Company

  • Power Generation

  • Petrochemicals

  • Gas Processing

  • Specialty Chemicals

  • Medicine

  • Pharmaceutical Equipment

  • Chemical Equipment

  • Sea Water Equipment

  • Heat Exchanger

  • Condenser

  • Pulp and Paper Industry

Seamless / Welded 90 Degree Titanium Elbow ASME B16.9

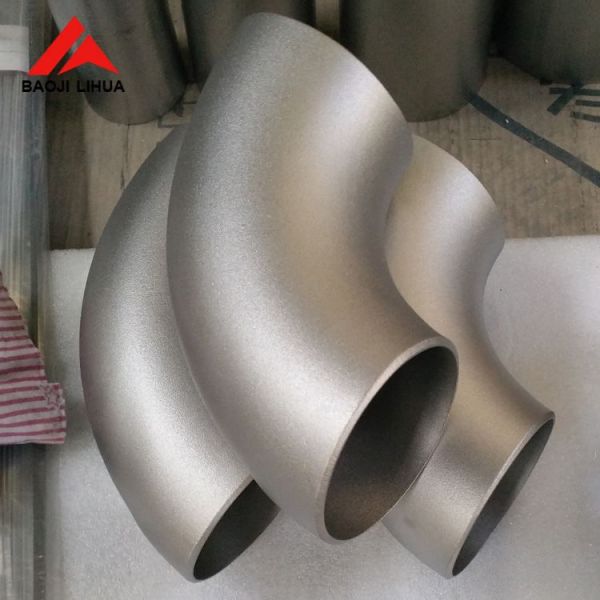

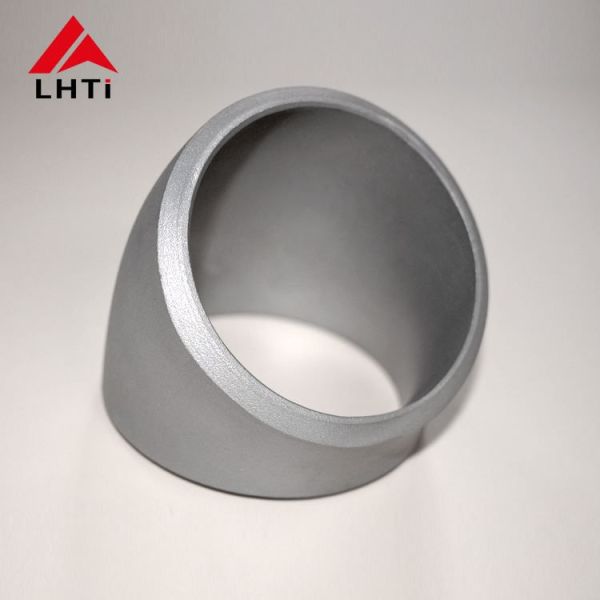

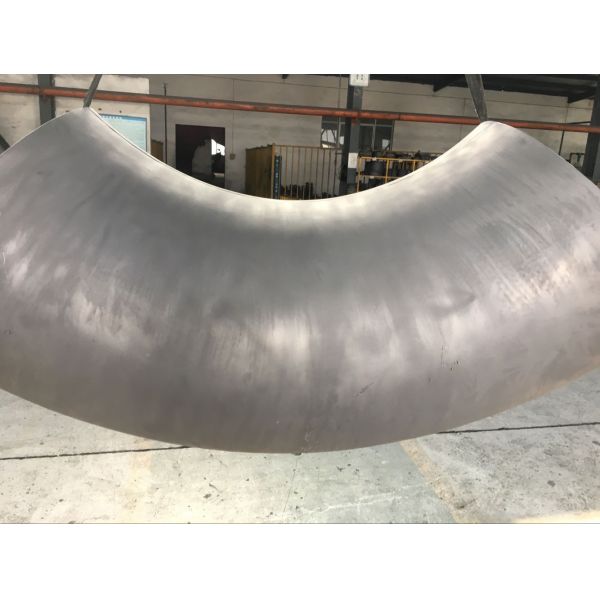

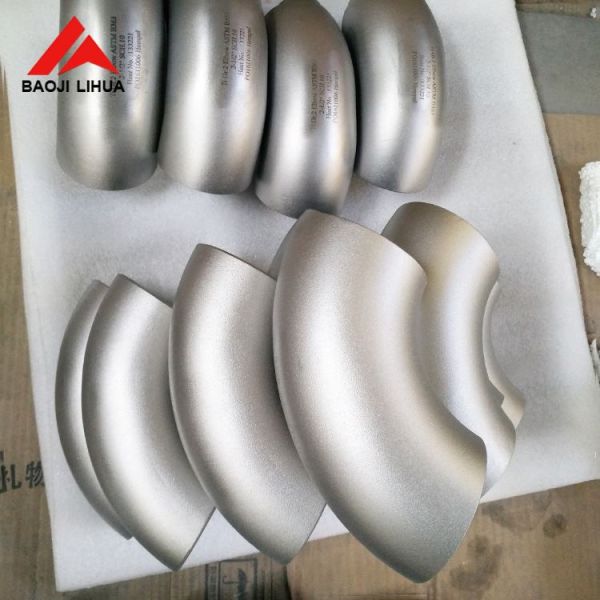

Detailed Images of Titanium 90° ElbowSeamless / Welded 90 Degree Titanium Elbow ASME B16.9Seamless / Welded 90 Degree Titanium Elbow ASME B16.9

Seamless / Welded 90 Degree Titanium Elbow ASME B16.9Seamless / Welded 90 Degree Titanium Elbow ASME B16.9Seamless / Welded 90 Degree Titanium Elbow ASME B16.9

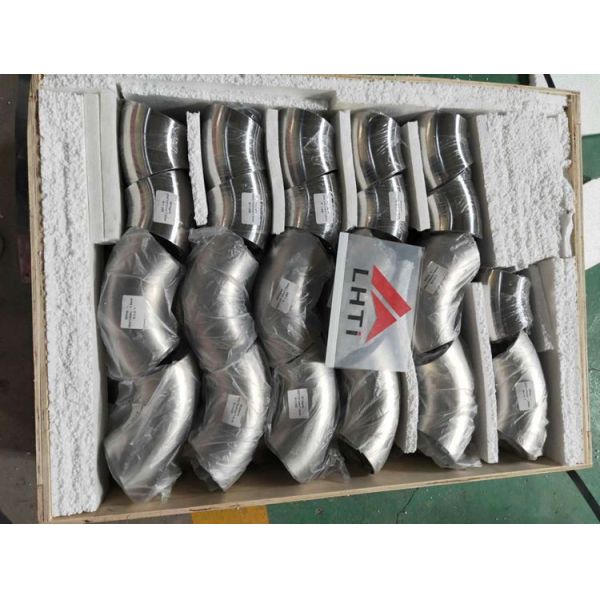

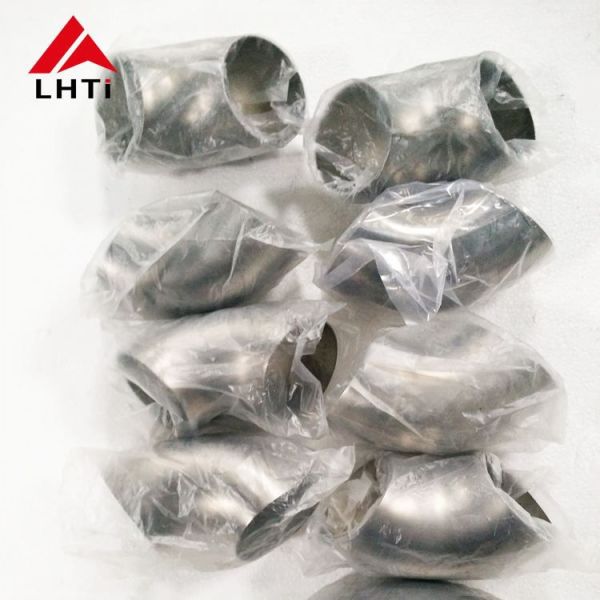

Packing and shipping of titanium elbows:

Quantity(Pieces) 1 - 100 100 - 500 >500
Est. Time(days) 15 20 To be negotiated

The packing is the responsibility of the special packing personnel, which is suitable for international long-distance transportation. Ensure that goods will not damage when arrive customers.

Seamless / Welded 90 Degree Titanium Elbow ASME B16.9

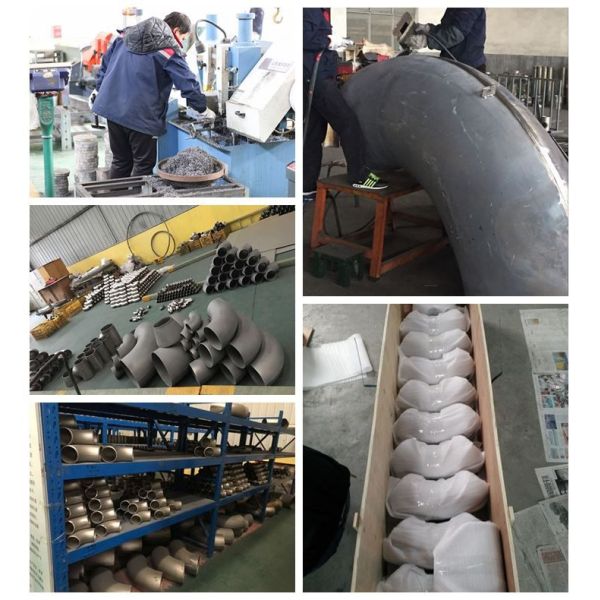

About our company:

Seamless / Welded 90 Degree Titanium Elbow ASME B16.9Seamless / Welded 90 Degree Titanium Elbow ASME B16.9

Advantages of Our Company:

Manufacturers with rich experience

A profession technical team

Wide knowledge of the market

High quality and high performance products

Competitive prices

Short delivery time

Sample orders accepted

Seamless / Welded 90 Degree Titanium Elbow ASME B16.9
