ASTM B363 GR2 Bending Titanium Pipe , Tee Reducer Pipe Fittings Pickled Surface
ASTM B363 GR2 Bending Titanium Pipe , Tee Reducer Pipe Fittings Pickled Surface
ASTM B363 GR2 Bending Titanium Pipe , Tee Reducer Pipe Fittings Pickled Surface
ASTM B363 GR2 Bending Titanium Pipe , Tee Reducer Pipe Fittings Pickled Surface
Specifications
Brand Name :
LH-Ti
Model Number :
titanium pipe fitting
Certification :
EN10204.3.1,SGS,TUV,BV
Place of Origin :
Baoji, Shaanxi, China
MOQ :
2 PCS
Price :
$ 10- $ 200 per PC
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
10K pcs per month
Delivery Time :
15 - 20 days
Packaging Details :
Standard exporting packaging
Standard :
ASTM B16.9, ASTM B363
Material grade :
Titanium gr2
OD :
1/2"-48"
Wall thickness :
3.0-18mm
Type :
Seamless ,welded
Surface :
Pickled, polished
Application :
Chemical industry
Description

ANSI B16.9 ASTM B363 GR2 Titanium elbow tee reducer pipe fittings

Titanium Gr 2 Pipe Fittings Chemical Composition

Grade Ti C Fe H N O Al V
Ti Grade2 99.2 min 0.1 max 0.3 max 0.015 max 0.03 max 0.25 max – –

Titanium Gr 2 Accessories Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Titanium Gr. 2 4.5 g/cm3 1665 °C (3030 °F) Psi – 49900 , MPa – 344 Psi – 39900 , MPa – 275 20 %

Equivalent Grades for Titanium Alloy Gr 2 Pipe Fittings

STANDARD WERKSTOFF NR. UNS
Titanium Grade2 3.7035 R50400

Product name: Titanium pipe fittings

Grade: GR1,GR2,GR7, GR12

Standard: ANSI / ASME B363, ANSI / ASME B16.9

Specifications(size): DN15-1200 (NPS: 1 / 2-48 inches)

Wall thickness: 3-18mm (Sch 5s to Sch 80s)

Manufacturing process: push, butt welding, polishing, lathe processing, pickling, sanding

Features: high corrosion resistance (tensile strength 686-1176MPA), low density (density 4.51KG / m3),

superior mechanical properties, excellent toughness and corrosion resistance, good plasticity, high melting

point (≈1660 ℃).

Application areas: chemical industry, petroleum , nuclear power industry etc.

Specifications
Nominal diameter DN
Diameter of mm
Grade
3/8
17.1
Gr2/Gr7/gr12
1/2
21.3
Gr2/Gr7/gr12
1
33.4
Gr2/Gr7/gr12
1 1/4
42.2
Gr2/Gr7/gr12
1 1/2
73.0
Gr2/Gr7/gr12
2
60.3
Gr2/Gr7/gr12
2 1/2
73.0
Gr2/Gr7/gr12
3
88.9
Gr2/Gr7/gr12
3 1/2
101.6
Gr2/Gr7/gr12
4
114.3
Gr2/Gr7/gr12
5
141.3
Gr2/Gr7/gr12
6
168.3
Gr2/Gr7/gr12
8
219.1
Gr2/Gr7/gr12
10
273.1
Gr2/Gr7/gr12
12
323.9
Gr2/Gr7/gr12
14
355.6
Gr2/Gr7/gr12
16
406.4
Gr2/Gr7/gr12
18
457.2
Gr2/Gr7/gr12
...
...
Gr2/Gr7/gr12
Specific pipe thickness and diameter can be customized according to

customers' requirements

Titanium in is used in the chemical industry and marine technology,because of its resistance to corrosion.In addition, titanium is also used in plant engineering, medical technology and in thewatch and jewelery industries.

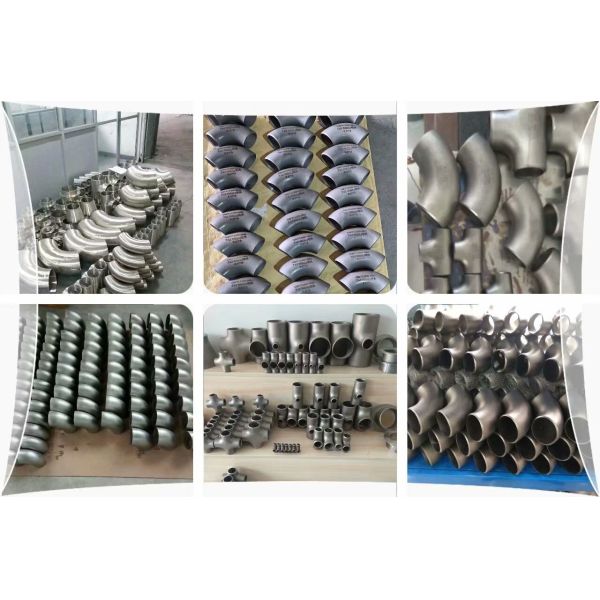

Detailed pictures:
