Titanium Blind Exhaust Flange 4 ANSI 150lbs 300 Ibs Class Gr2
Titanium Blind Exhaust Flange 4 ANSI 150lbs 300 Ibs Class Gr2
Specifications
Brand Name :
LH-Ti
Model Number :
LH-BL
Certification :
ISO9001, TUV etc.
Place of Origin :
Baoji, China
MOQ :
1 piece
Price :
US dollar $30/pc--US dollar $80/pc
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
3-15 work days
Packaging Details :
Wrapped by foam contained in plywood box for export
Product name :
Ansi titanium blind flange
Standard :
ANSI B16.5
Material :
gr2, gr7, gr12
Application :
Chemical industry
Sealing surface :
RF
Size :
NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure :
150#-2500#
Surface :
Polished
Technique :
Froged and CNC Machined
Inspection :
Ultrasonic Testing & Material Test Report EN10204.3.1
Description
Titanium Blind Exhaust Flange 4" ANSI 150lbs 300 lbs Class Gr2
Titanium blind exhaust flange 4" ANSI 150lbs 300 lbs class Gr2 designed for demanding industrial applications.
Flanges are essential components widely used in water conservancy, electric power, power stations, pipe fittings, industrial systems, pressure vessels, and various mechanical and chemical processing applications. Titanium flanges are manufactured using advanced forging processes with premium titanium materials, offering exceptional corrosion resistance and durability.
ASME B16.47 Titanium Flange Specifications
Material: Titanium GR1, GR2, GR7, GR11, GR12 (F2, F7, F11, F12)
Types: Plate Flange, Flat Flange, Slip-on Flange, Welding Neck Flange, Long Welding Neck Flange, Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange
Connection Types: Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large tongue groove, Small tongue groove
Size Range: 1-1/2" to 120" (DN40 to DN3000)
Minimum Order Quantity: 1 piece
Price Terms: EXW factory, FOB, C&F, CIF
Payment Terms: T/T, L/C, Western Union, Money Gram
Packaging: Standard export plywood case or customized packaging as requested
Applications: Construction, petroleum, chemical industry, power generation, ship building, paper making, metallurgy, water supply and sewage systems, light and heavy industry, plumbing and electrical systems.
Export Markets: USA, Canada, Australia, Singapore, Indonesia, Hong Kong, Oman, Vietnam, and worldwide.
Titanium Blind Exhaust Flange 4
Physical Properties
Grade Tensile Strength (min) Yield Strength (min) Elongation (%)
GR1 35 ksi / 240 MPa 20 ksi / 138 MPa 24
GR2 50 ksi / 345 MPa 40 ksi / 275 MPa 20
GR5 130 ksi / 895 MPa 120 ksi / 828 MPa 10
GR7 50 ksi / 345 MPa 40 ksi / 275 MPa 20
GR9 90 ksi / 620 MPa 70 ksi / 438 MPa 15
GR12 70 ksi / 438 MPa 50 ksi / 345 MPa 18
We manufacture various types of titanium flanges to meet diverse industrial requirements.
Titanium Blind Exhaust Flange 4

Quality Assurance
Our titanium flanges undergo comprehensive quality testing including:
  • Chemical composition analysis
  • Physical performance testing
  • Ultrasonic testing (UT)
  • Positive Material Identification (PMI)
  • Additional testing available upon request: radiographic testing, hardness testing
We adhere to international and domestic industrial standards while implementing higher internal quality assurance protocols through comprehensive quality management systems. All incoming materials undergo PMI and physical properties inspection. Each titanium flange receives ultrasonic testing according to worldwide standards and customer specifications.

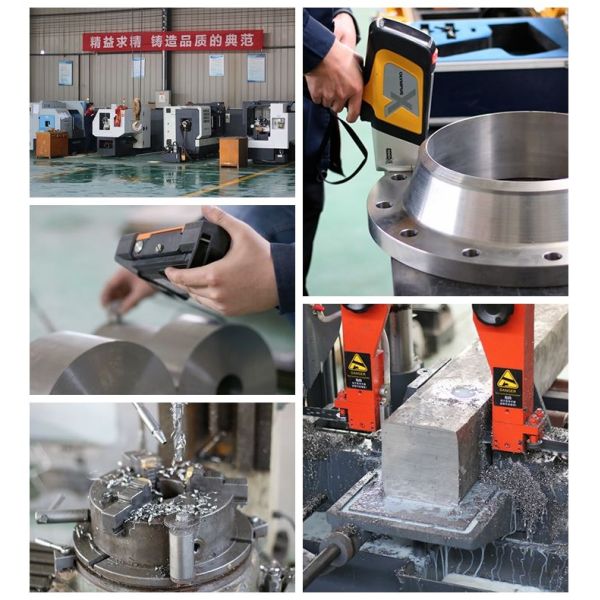

Manufacturing Excellence
Titanium Blind Exhaust Flange 4 Titanium Blind Exhaust Flange 4 Titanium Blind Exhaust Flange 4
Factory Advantages
  • Grade 1 titanium sponge raw materials ensuring optimal chemical composition and mechanical properties with material certification provided
  • Forged valve body and disc manufacturing for superior leakage control and visual quality
  • Advanced facilities and extensive fabrication experience
  • Continuous improvement capabilities and new design development
  • Fast delivery to meet urgent project timelines
  • Cost-effective bulk production reducing project budgets
  • Professional export team and comprehensive after-sales service
