ASME B16.5 Grade 2 Titanium WN RF Flange - Corrosion Resistant
ASME B16.5 Grade 2 Titanium WN RF Flange - Corrosion Resistant
ASME B16.5 Grade 2 Titanium WN RF Flange - Corrosion Resistant
ASME B16.5 Grade 2 Titanium WN RF Flange - Corrosion Resistant
Specifications
Brand Name :
LH-Ti
Model Number :
LH-BL
Certification :
ISO9001, TUV etc.
Place of Origin :
Baoji, China
MOQ :
1 piece
Price :
US dollar $30/pc--US dollar $80/pc
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
3-15 work days
Packaging Details :
Wrapped by foam contained in plywood box for export
Product name :
Ansi titanium blind flange
Standard :
ANSI B16.5
Material :
gr2, gr7, gr12
Application :
Chemical industry
Sealing surface :
RF
Size :
NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure :
150#-2500#
Surface :
Polished
Technique :
Froged and CNC Machined
Inspection :
Ultrasonic Testing & Material Test Report EN10204.3.1
Description

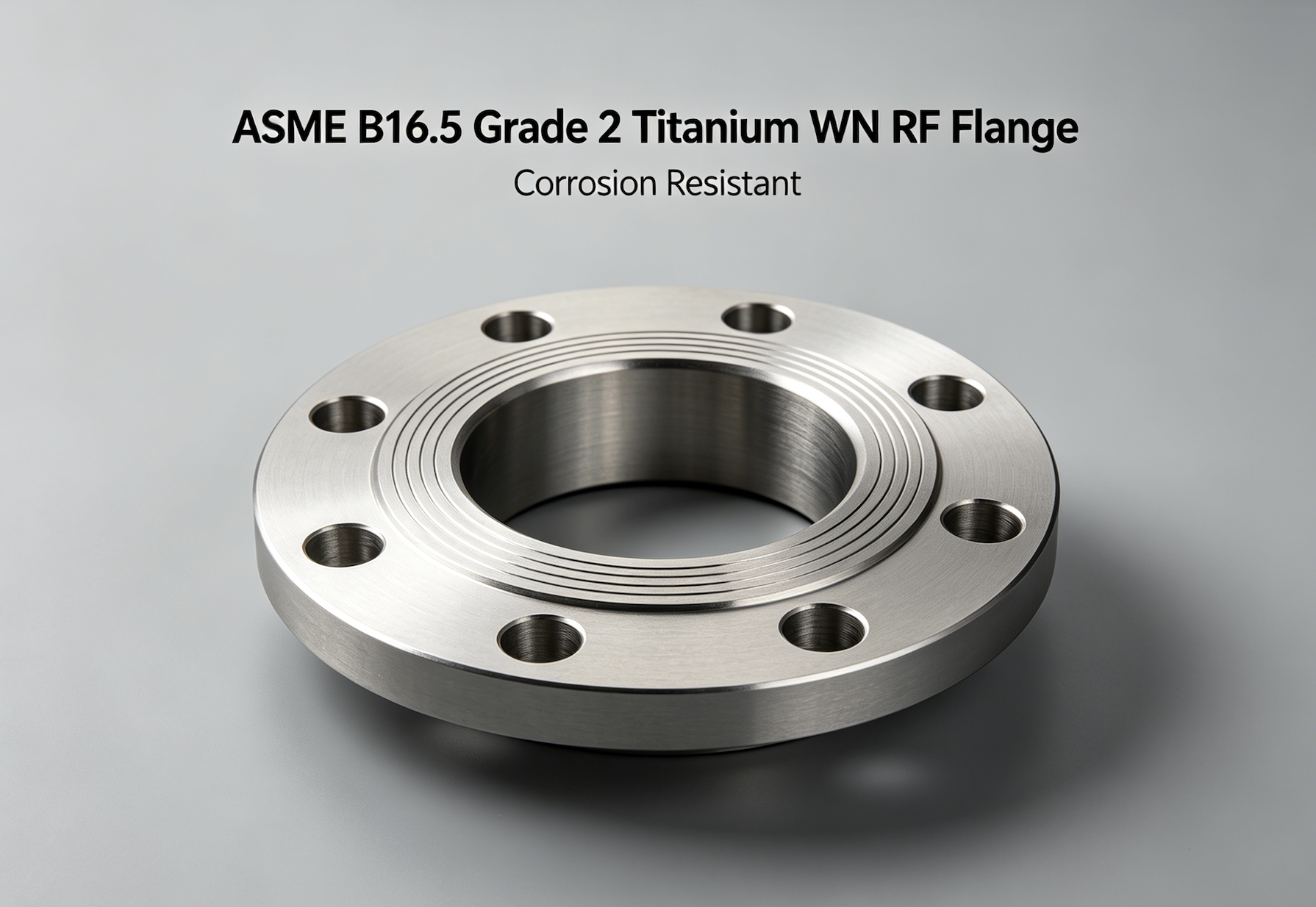

ASME B16.5 Grade 2 Titanium WN RF Flange - Corrosion Resistant
Our ASME B16.5 Grade 2 Titanium Welding Neck (WN) Raised Face (RF) Flanges are engineered for high-stress environments in the oil, gas, and chemical processing industries. Combining the lightweight properties of titanium with superior corrosion resistance, these flanges ensure leak-proof connections and long-term structural integrity.
Technical Specifications
Feature Details
Standard ASME B16.5 / ANSI B16.5
Material Titanium Grade 2 (UNS R50400)
Type Weld Neck (WN)
Face Type Raised Face (RF)
Pressure Class 150# to 2500#
Size Range 1/2" to 24" (DN15 - DN600)
Surface Treatment Sandblasting, Polishing, Machining Finish
Key Benefits
  • Extreme Corrosion Resistance: Specifically resistant to seawater, chlorine, and organic acids.
  • High Strength-to-Weight Ratio: 45% lighter than steel but equally strong, reducing the overall load on piping systems.
  • Thermal Stability: Maintains mechanical properties in temperatures ranging from sub-zero to 800°F.
ASME B16.5 Grade 2 Titanium WN RF Flange - Corrosion Resistant
Standard Dimensions
Nominal Size Outside Diam (D) Thickness (C) Bore (B) Hub Length (L) No. of Bolt Holes
1" (Class 150) 108 mm 14.2 mm 26.7 mm 55.6 mm 4
2" (Class 150) 152 mm 19.1 mm 52.5 mm 63.5 mm 4
4" (Class 150) 229 mm 23.9 mm 102.3 mm 76.2 mm 8
Applications
  • Offshore Oil Drilling: High resistance to salt spray and seawater pressure.
  • Chemical Processing: Handling corrosive fluids in heat exchangers and reactors.
  • Desalination Plants: Preventing pitting corrosion in saline environments.
