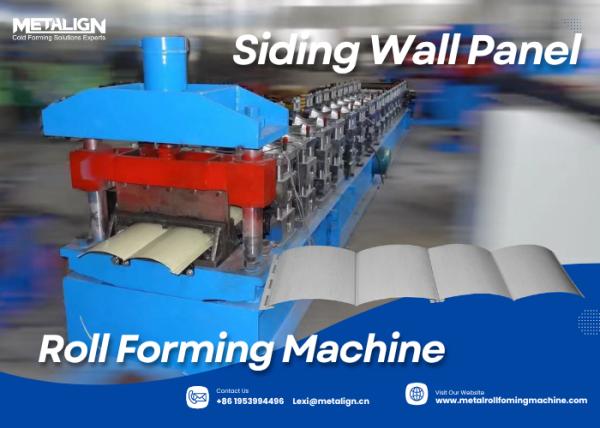

Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching
Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching
Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching
Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching
Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching
Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching
Specifications
Brand Name :
METALIGN
Model Number :
SW
Certification :
CE,ISO,etc
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD1,000-700,000. Based on customization.
Payment Terms :
L/C,T/T
Supply Ability :
30 sets per month
Delivery Time :
30 days
Packaging Details :
Industrial plastic film wrapping, secured with steel wire.
Product name :
Chain-Driven Roll Former with Inline Rolling Punch for Metal Siding Panels
Key words :
metal siding wall panel roll former/steel siding panel production line
Profile :
Siding Wall
Application :
Building Facades / Residential Wall Cladding / Commercial Exterior Panels
Material type :
PPGI/PPGL/GI/GL Steel Coils
Material thickness :
0.4-0.6mm
Forming speed :
15-20m/min
Main motor power :
5.5Kw
Forming stations :
17
Driving system :
Chain
Frame structure :
Wall panel
Shaft diameter :
70mm
Machine condition :
Brand new
Shaft material :
#45 steel quenched 55-60℃
Roller material :
High grade #45 steel , surface with hard chrome
Display language :
English/Spanish/Russian/French,etc, customizable
Control technique :
PLC+Touch Screen
Delivery time :
30 days
Description

Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching

1. Overview

1.1 Production Line


This roll forming production line serves metal siding panel manufacturers requiring high-efficiency punching and cutting. It targets construction, prefab, and industrial sectors. Advantages include precise hole punching, fast production, safety features, and cost-effective operation, suitable for medium to large-scale production.



Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching

Roll Form


Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole PunchingHanging-Arm Rolling Punch


1.2 Profile
The produced siding wall panels are made of galvanized steel coils, thickness range 0.4-0.6mm. Panels feature precise oval holes on side edges for easy installation. The profile is flat with punched slots, designed for strong weather resistance, easy mounting, and aesthetic exterior cladding in residential and commercial buildings.
Material: Galvanized Steel / PPGI / Aluminum Thickness: 0.4-0.6mm
Yield strength: 200 - 350 Mpa Tensil stress: 200 -350 Mpa
Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching


1.3 Production Process

Flow Chart:

Hydraulic Decoiler → Entry Guide → Roll Former → Roller Punch → Hydraulic Cutter → Run-out Table
Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching**

Process:

The chain-driven roll former with guide posts ensures precise shaping and material stability. Rolling punch station integrates hole punching inline, enhancing speed and accuracy. Hydraulic cutter cleanly separates finished panels, maintaining quality for siding wall applications.


1.4 Key Focus

High-efficiency inline rolling punch system for fast, precise hole punching

Chain-driven roll former with guide post ensures stable, accurate profile forming

Protective chain cover enhances operator safety and reduces maintenance

Hydraulic cutter delivers smooth, clean panel cuts with minimal deformation

Suitable for metal siding panels with side oval holes, ideal for exterior cladding


2. Technical Parameters

2.1 Decoiler
Structure Stand type Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching
Working Form Manual, motorized, or hydraulic
Loading Capacity 3T or 5T, customizable
Inner Diameter Φ450 – Φ550 mm
Out Diameter 1300 mm
Model DC


2.2 Optional Upgrade: Decoiler
Faster loading, automatic decoiling, reduced labor, higher efficiency, better safety, smoother feeding, suitable for heavy coils, less downtime. Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching
Stand structure decoiler, motorized Hydraulic decoiler


2.3 Guiding Device With Pre-Cut Broaching Shear
Guiding Roller Adujust the coil feeding width Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching
Pre-cut Broaching Shear Cut the steel coil before roll forming
Digital Display See the feeding width directly


2.4 Roll Forming Machine
Working Speed Around 20 m/min Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching
Structure Wall panel type. Optional: Cast-iron stands or guide pillar
Driving System Chain system. Optional: Gearbox
No. of Forming Stations 18 stands
Shaft Diameter 70mm solid shaft
Motor Power 5.5 Kw Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching
Roller Material

45# steel polished and chromed HRC58-62°
Shaft Material High grade 45# steel polished(CNC lathe)
Steel Coil Material PPGI or GI
Steel Coil Thickness 0.25-0.8mm


2.5 Optional Upgrade: Cover
Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching
Mounted On The Inside: No Cover Required Solid Cover For Chain Mesh Safety Cover


2.6 Cutter
Common Power Type Hydraulic. Optional: motor type. Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching
Hydraulic Power

4-5.5Kw, customizable
Blade Material

Cr12 Mov
Hardness

With quenched treatment HRC 58 – 62°


2.7 Product Collection
Solution 1

Run-out table

 Solution 2 Auto stacker
Power Type

Non-powered, mainly manual handling

 Power Type Motorized, 3Kw
Dimension Length 4m, customizable Dimension Length 4m-6m, customizable
Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching


2.8 PLC Control Cabinet
PLC Brand Delta, customizable Power Supply 380v, 50HZ, 3Phase (It depends on customer requirement)
Encoder Brand Omron, customizable Language Chinese + English, Spanish, French, Russian, etc
Touch Screen MCGS, customizable Operation type Manual /auto two-type switch
Hanging Arm Type Saving Space Standing Type greater component integration and flexible positioning

Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching

Hanging-Arm Control Box

Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching

Standing Control Box


2.9 Hydraulic Power Unit (HPU)

Motor Power

 5.5Kw Efficient Roll Forming Machine for Galvanized Steel Siding with Oval Hole Punching
Oil Required

N32 or N46 hydraulic oil is available

Design

The hydraulic station has a fan cooling system
Optional

It can be installed on or inside the roll former to save space



2.10 Analysis
5T Hydraulic Decoiler Supports medium coil weight, easy manual hydraulic control
Cost-effective, reliable for stable coil feeding
Guiding Device Ensures precise coil alignment before forming
Reduces material waste and maintains profile accuracy
Roll Former Chain-driven for flexible load and easy maintenance
Guide post structure improves profile stability
Protective cover enhances safety and protects chain
Rolling Punch Station Inline rolling punch increases punching speed
Precise oval holes reduce secondary processing
Hydraulic Cutter Provides clean, flat cuts, suitable for siding panels
Rapid cutting to maintain production line efficiency
Out Table Supports finished panels, prevents deformation
Facilitates downstream handling and packaging


3. Production Line Components

Component Quantity
Decoiler 1 set
Roll Former 1 set
Hydraulic Cutter 1 set
Out Table 2 sets
PLC Cabinet 1 set
Hydraulic Station 1 set


4. Customization Options

This production line allows customization of the rolling punch station to produce various oval hole sizes and positions along the siding panel edges. Roll former tooling can be tailored to different panel widths and thicknesses. Additional options include adjustable punching frequency and integration with automated stacking or packaging systems.
