One Year Warranty Laser Spot Welding Machine 400 Watt Jewelry Laser Welder
One Year Warranty Laser Spot Welding Machine 400 Watt Jewelry Laser Welder
One Year Warranty Laser Spot Welding Machine 400 Watt Jewelry Laser Welder
One Year Warranty Laser Spot Welding Machine 400 Watt Jewelry Laser Welder
Specifications
Brand Name :
Chuke
Model Number :
LWM-C01
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 5500 - 7500 / Set
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability :
50 sets per month
Delivery Time :
5-10 work days
Packaging Details :
Wooden case lined with foam
Name :
Jewelry Laser Spot Welding Machine
Power :
400watt
Condition :
New
Color :
Blue (Customized)
Warranty :
1 Year
Pulse Width :
0.1-20ms
Wavelength :
1064nm
Description

One Year Warranty 400watt Jewelry Laser Spot Welding Machine Price in India

One Year Warranty Laser Spot Welding Machine 400 Watt Jewelry Laser Welder

Laser Spot Welding Machine Application

Widely applied in precison manching of micro parts, jewelry accessrioes including ring, pendant, bnecklace, earring, bracelet, especially suitable for patching holes of gold and silver jewelry, spot welding, seam welding, insertion welding and repairing.

One Year Warranty Laser Spot Welding Machine 400 Watt Jewelry Laser Welder

Laser Spot Welding Machine Feature

1. One year machine warranty, offer free proofing.

2. This model adopts the humanization design in order to faciliate actual operation, conforms to the principles of the human body engineering, working long hours never be tired.

3. 10x microscope observation system will ensure to observe clearly and make the welding points more beautiful and reliable.

4. 7 inch LED display of operation can realize to change English between Chinese all the time, and can make the operation simple and convenient.

5. Color and shape of machine can be customized according to customers' demand.

6. ODM, OEM are available.

7. An investment with low practical price, no supplies, small maintenance.

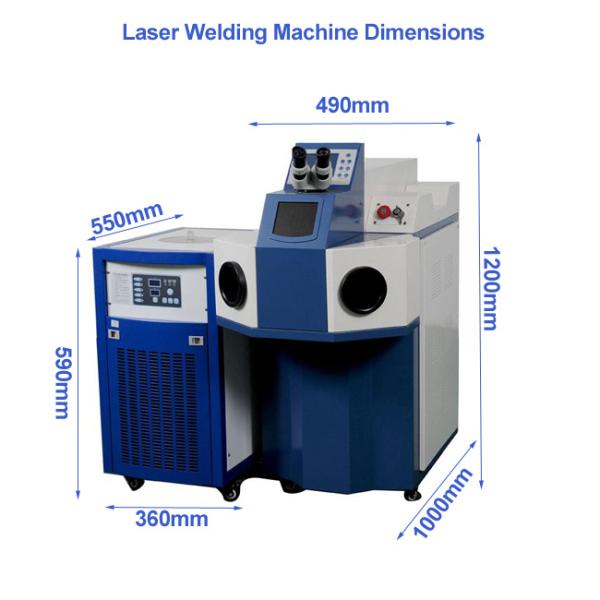

Laser Spot Welding Machine Specification

Name Jewelry Laser Spot Welding Machine Observation system Microscope
Power 600watt Max Laser Power 400watt
Power System 6KW Single Pulse Energy 90J
Pulse Frequency 0.1-40Hz Pulse Width 0.1-20MS
Cooling Input 1.0P Cooling System Water Cooling
Laser Wavelength 1064nm Positional Accuracy 0.02mm
Working Area 170*170mm Control System PC
Focal Spot Diameter 0.1-2.0mm Power Supply 220V/50Hz/30A 380V/50Hz/40A
Water Pressure Protection ≤0.025MPa Weight 160kg

Why Choose Us?

1. 13 Years' Manufacturing and R&D Experience

2. 10 Years' Exporting and Sales Experience

3. Factory Direct without Middle Links and Save Price

4. Professional Technical Team Offers Perfect Proofing Solution

5. Excellent Pre-sales and After-sales team Offer you 24 Hours High Quality Service

6. Export to many coutries and regions, like India, Europe, Brazil, Africa and so on
