Injection Mold Repair Fiber Laser Welding Machine Equipment In Cad Welding Mould
Injection Mold Repair Fiber Laser Welding Machine Equipment In Cad Welding Mould
Injection Mold Repair Fiber Laser Welding Machine Equipment In Cad Welding Mould
Injection Mold Repair Fiber Laser Welding Machine Equipment In Cad Welding Mould
Specifications
Brand Name :
CHONGQING CHUKE
Model Number :
MJWM
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
US$ 6950> 1 SET
Payment Terms :
L/C, T/T, , MoneyGram, Trade Assurance
Supply Ability :
50 sets per month
Delivery Time :
5 ~ 14 working day
Packaging Details :
Wooden Case
Name :
Laser Welding Machine Mold Repair
Power :
300W
CNC :
Yes
Color :
Blue
Customized :
No
Cooler :
Water Cooling
Description

Laser Welding Injection Mold Repair Welding Equipment in Cad Welding Mould Sales

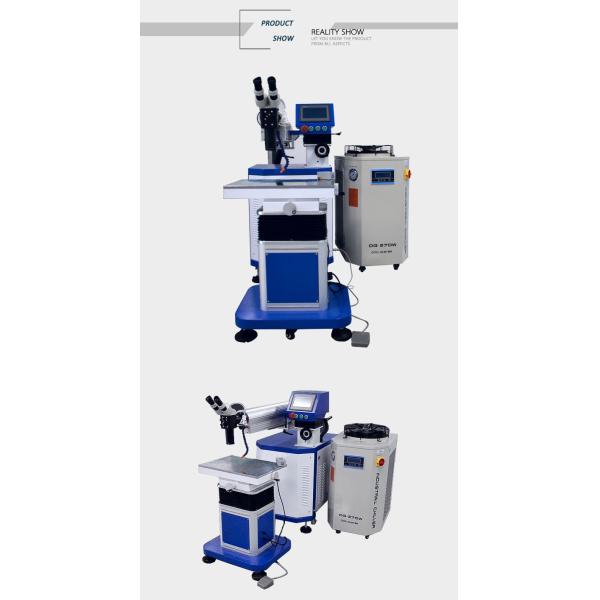

Mould Repair Laser Welding Machine Description

1. This is a high-power laser welding machine, double-layer laser source, the first choice to improve production and use.

2. It adopts imported ceramic concentrating cavity in the UK, which is resistant to corrosion and high temperature. The life of the cavity is 8-10 years, and the life of the xenon lamp is more than 8 million times.

3. High power microscope, 10x magnification, cross cursor indication, and automatic light blocking with high speed LCD light valve. The protective gas is output synchronously with the laser to ensure the beautiful solder joints.

Mould Repair Laser Welding Machine Application

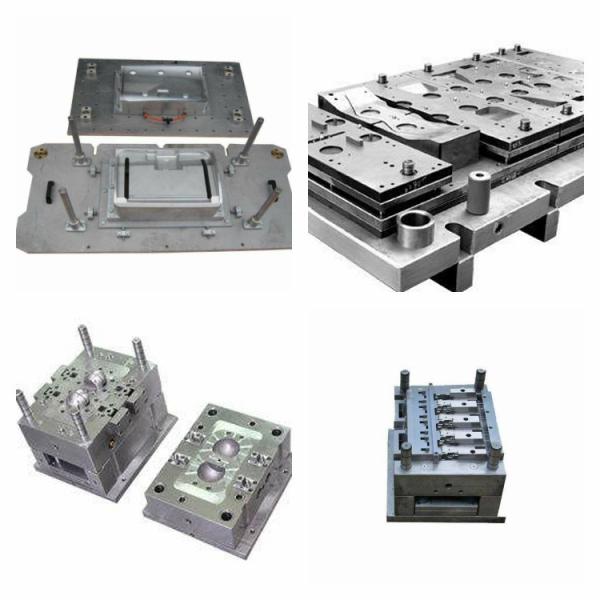

Wide range of applications, industrial and household, is the best choice for mold manufacturers, precision spot welding, high efficiency repair molds, extend mold life, greatly reduce factory costs.

Suitable for angle iron, stainless steel plate, square tube, carbon steel, galvanized material, wrought iron furniture, security window, staircase, handrail, cage, carport, color steel plate, locomotive parts, etc.

Injection Mold Repair Fiber Laser Welding Machine Equipment In Cad Welding Mould

Mould Repair Laser Welding Machine Specification

Max Laser Power 300w
Max Single Pulse Energy 120J
Laser ND:YAG
Laser Welding Frequency ≤100Hz
Laser Welding Depth ≤3mm
Pulse Width 0.1~25ms
Focal Spot Diameter 0.2-3.0mm
Output Light Path 1~4 optional
Worktable Range 300*200 optional
Positional System Red light or CCD, Microscope
Power Supply 220V±10%, 380V/50Hz/60A
Main Machine Size 1170*1250*560mm
Worktable Loading 150kg

Mould Repair Laser Welding Machine Features

1. Good craftsmanship, good material and peace of mind.

2. Factory direct sales, quality assurance, one year warranty.

3. Free online training, one-on-one coaching.

4. New high-quality components, advanced production technology, stable welding, durable machine.

5. Easy to operate, providing you with a precise welding experience.

Why Choose Chongqing Chuke?

1. Alibaba ten-year member, committed to producing high quality laser products.

2. We have thoroughly tested each product to ensure that our users are safe.
3. We have a group of first-class experts in the industry, and continue to learn from advanced technologies such as Europe, America and Japan to ensure the highest quality products and the most efficient services for each customer.
4. High-quality pre-sales service, we provide relevant technical support and product industry information for each customer, and provide free conveniences such as proofing. Tailor any model according to customer needs, making it more satisfactory.
5. We provide professional after-sales protection, equipment free maintenance for one year, lifetime maintenance, free technical consultation, 24 hours to answer customer questions in a timely manner.
6. 14 years of factory laser manufacturing experience, let you buy peace of mind with confidence.
Injection Mold Repair Fiber Laser Welding Machine Equipment In Cad Welding Mould
