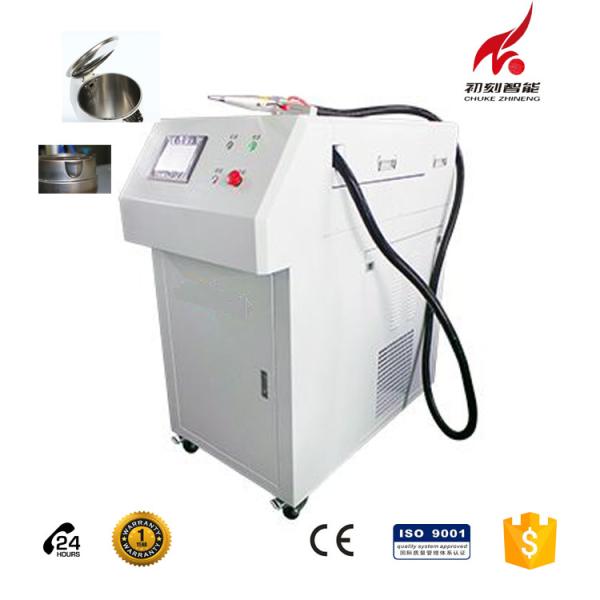

Portable Laser Welding Machine For Stainless Steel Kitchen Equipment Kettle Spout
Portable Laser Welding Machine For Stainless Steel Kitchen Equipment Kettle Spout
Portable Laser Welding Machine For Stainless Steel Kitchen Equipment Kettle Spout
Portable Laser Welding Machine For Stainless Steel Kitchen Equipment Kettle Spout
Specifications
Brand Name :
Chongqing Chuke
Model Number :
FLWM
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 6000 ~ 7500 > 2 SETS
Payment Terms :
L/C, T/T, , Paypal, Trade Assurance
Supply Ability :
50 sets per month
Delivery Time :
5~ 14 working days
Packaging Details :
Wooden Case Lined With Foam
Name :
Stainless Steel Kettle Spout Soldering Equipment
Power :
500W
OEM :
Yes
Customization :
Yes
New :
Yes
Warranty :
1 Year
Description

Portable Welding Kitchen Equipment Kettle Spout Stainless Steel Welder for sale

Kettle Spout Welding Kitchen Equipment Advantage

1. Specially designed for kettle spout welding, teapot bottom welding to develop a cost-effective teapot special laser welding machine. Provide customers with complete spout laser welding solutions, such as spout positioning fixture, grinding spout shaping, pot Mouth welding position oxidation protection.
2. The laser numerical control power supply is controlled by industrial grade high stability single-chip microcomputer. The LCD screen display and centralized button operation make the operation simpler. It can realize intelligent control of the working current, repeated working frequency, pulse width and spot diameter of the xenon lamp.

Portable Laser Welding Machine For Stainless Steel Kitchen Equipment Kettle Spout

3, combined concentrating cavity design, with higher electro-optical conversion efficiency.
4. Configure the CNC numerical control motion control system. The visual function of the system configuration can automatically generate the execution code, complete the programming process for complex graphic simulation programming, easy to operate and realize automatic processing.
5, CCD monitoring and positioning programming.
6. The diameter of the solder joint is small, the heat affected zone is small and has no pores and trachoma. After welding, it can be directly polished.

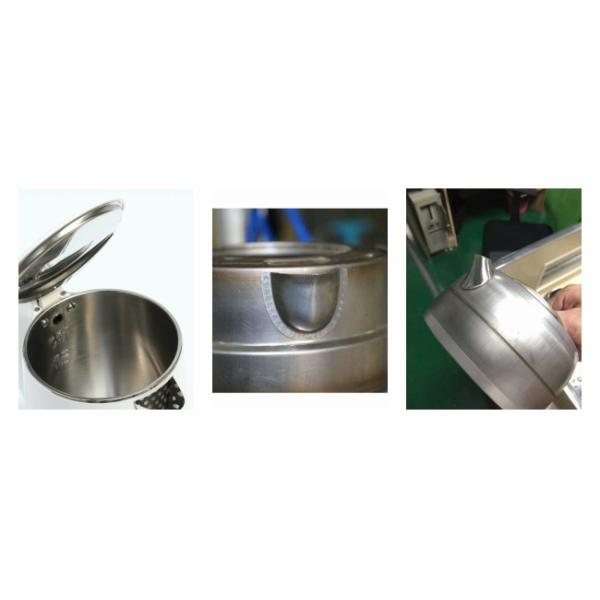

Kettle Spout Welding Kitchen Equipment Sample

Portable Laser Welding Machine For Stainless Steel Kitchen Equipment Kettle Spout

Kettle Spout Welding Kitchen Equipment Specification

Max Laser Power 500W
Max Single Pulse Energy 120J
Laser Wavelength 1064nm
Laser Welding Frequency ≤100Hz
Laser Welding Depth 0.1~2.5mm
Pulse Width 0.1~50ms
Output Light Path 1~4 optional
Worktable Range 300*200 optional
Positional System Microscope or CCD
Power Supply 380V/50Hz/40A
Cooling Type Water Chiller
Power Consumption ≤6KW

Kettle Spout Welding Kitchen Equipment Application

Professional for stainless steel kettle mouth welding, teapot bottom welding, teapot steam tube welding, welding appearance is beautiful, the weld seam is convex upwards, easy to post-process.
