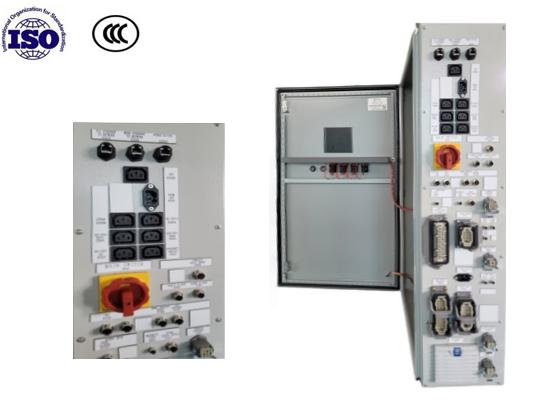

Industrial PLC Control Cabinet Solar Water Pump Control Panel IP54 IP55 IP65 IP66
Industrial PLC Control Cabinet Solar Water Pump Control Panel IP54 IP55 IP65 IP66
Specifications
Model Number :
PLC Control Cabinet BG156411542
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
20 days
Packaging Details :
Wooden case Packaging
Price :
USD28-68889
Ip Rating :
IP54 IP55 IP65 IP66
Application :
Industrial, commercial, and Process control
Material :
Mid Carbon Steel / Carbon Steel / Stainless Steel / Aluminum Steel
Color :
Silver or Others
Customization :
Logo printing, size and color customization available
Mounting Type :
Wall mount, pole mount，free standing
Usage :
PLC control
Certifications :
CE
Size :
Various sizes available
Locking Mechanism :
Key lock
Finish :
Powder coated
Shape :
Rectangular
Features :
Durable, corrosion-resistant, weatherproof
Description

Industrial PLC Controll Cabinet Solar Water Pump Controller Panel



Product Describe:

1. Agricultural Irrigation Systems
Solar Water Pump Controller Panel: Powers water pumps using solar energy, adjusting water output based on sunlight intensity, soil moisture sensors, and crop water needs. Suitable for remote farmland, orchards, and greenhouses without grid access.
Industrial PLC Control Cabinet: Integrates with the solar controller to manage multi-pump systems (e.g., switching between main/backup pumps), monitor pipeline pressure, and link with weather stations for automated irrigation scheduling (e.g., reducing water supply during rainy periods).
2. Rural Water Supply Projects
Solar Water Pump Controller Panel: Drives submersible pumps to extract groundwater or river water, storing it in water towers for rural households. Optimizes energy use by matching pump speed with solar power generation.
Industrial PLC Control Cabinet: Controls water tower level sensors to avoid overflow/emptying, manages water distribution pipelines (e.g., pressure regulation for multi-village supply), and records water usage data for billing or maintenance alerts.
3. Desertification Control & Ecological Restoration
Solar Water Pump Controller Panel: Powers sprinkler systems in desert areas or degraded grasslands, using solar energy to reduce reliance on diesel generators. Adjusts flow rates to match vegetation water requirements.
Industrial PLC Control Cabinet: Coordinates multiple pump stations across large areas, integrates with satellite positioning to monitor irrigation coverage, and triggers alarms for equipment failures (e.g., blocked nozzles).
4. Off-Grid Industrial Zones & Mining Sites
Solar Water Pump Controller Panel: Provides water for dust suppression, equipment cooling, or worker living quarters in remote mines or industrial parks without grid connection. Works with battery storage to ensure 24/7 operation.
Industrial PLC Control Cabinet: Links with solar inverter systems to balance power distribution (e.g., prioritizing water pumps during low sunlight), monitors pump motor temperature to prevent overheating, and integrates with security systems (e.g., stopping pumps during unauthorized access).
5. Municipal Green Spaces & Landscape Maintenance
Solar Water Pump Controller Panel: Irrigates parks, golf courses, or roadside green belts, using solar energy to lower municipal electricity costs. Automatically adjusts based on seasonal sunlight changes.
Industrial PLC Control Cabinet: Manages zoning irrigation (e.g., different schedules for lawns vs. flower beds), integrates with rain sensors to pause irrigation during rainfall, and centralizes data for energy consumption analysis.
6. Aquaculture & Fishery
Solar Water Pump Controller Panel: Circulates water in fish ponds or shrimp farms to maintain oxygen levels, using solar power to reduce operational costs. Adjusts flow rates based on water quality sensors (e.g., dissolved oxygen).
Industrial PLC Control Cabinet: Coordinates with aerators and water filtration systems, triggers alerts for abnormal water parameters, and automates feeding schedules linked to water circulation cycles.

Design:

Product Type Standard Sizes (mm, H × W × D) Custom Sizes (mm, H × W × D)
Industrial PLC Control Cabinet Common: 800×600×2100, 600×600×1900, 600×800×2000 Larger sizes (e.g., 2200×1600×800) for accommodating more electrical components or large-scale industrial lines
Small control boxes: 1200×600×400 (typical) Compact sizes for limited installation spaces
Solar Water Pump Controller Panel Typical: 125×330×220, 600×500×200, 195×105×45 (no universal standard) Larger sizes for high-power pumps (to fit more electronic components for complex control)
Customized dimensions based on integration needs with other equipment

IP Grade:

IP54 / IP55 / IP65 / IP66


Suggestion:

1. Industrial PLC Control Cabinet Customization
Based on Installation Space Constraints
If installing in narrow areas (e.g., wall-mounted in compact workshops), reduce depth to ≤300mm and optimize width/height to match wall load-bearing capacity (avoid exceeding 150kg for wall-mounted units).
For outdoor or harsh environments (e.g., dusty factories, high-humidity areas), customize with reinforced IP65/IP66 waterproof/dustproof enclosures and corrosion-resistant materials (e.g., 304 stainless steel).
Based on Internal Component Layout
If integrating multiple PLC modules, HMI screens, and wiring terminals, design internal rails and mounting plates with adjustable spacing to avoid cable clutter and ensure heat dissipation (reserve 15-20% space for airflow).
For high-voltage components (e.g., contactors, transformers), separate them from low-voltage control modules with partitioned compartments to prevent interference.
Based on Functional Expansion
Pre-install extra terminal blocks, power interfaces, and DIN rails to accommodate future additions (e.g., IoT sensors, backup power modules).
For remote monitoring needs, integrate pre-drilled holes for Ethernet/4G modules and reserve space for communication equipment.
2. Solar Water Pump Controller Panel Customization
Based on Pump Power and Solar System Scale
For high-power pumps (≥5.5kW), increase the panel size to accommodate larger inverters, fuses, and heat sinks; ensure the enclosure can dissipate heat efficiently (e.g., add ventilation grilles or cooling fans).
For off-grid systems with battery storage, customize the panel to include battery management system (BMS) interfaces and voltage/current monitoring ports.
Based on Environmental Adaptability
In areas with extreme temperatures (e.g., deserts, cold regions), use wide-temperature-range components (-40°C to 70°C) and insulate the panel or add heating elements to prevent condensation.
For coastal or saline-alkali zones, choose anti-corrosive materials (e.g., marine-grade aluminum alloy) and seal connectors to resist salt spray.
Based on Integration and Control Logic
If linking to soil moisture sensors or weather stations, add analog/digital input ports matching sensor protocols (e.g., RS485, LoRa).
For multi-pump systems, customize the panel to support parallel/sequential pump control and automatic load balancing between solar panels and grid backup (if applicable).
3. General Customization Tips
Standardization of Key Interfaces: Ensure customized sizes retain standard mounting hole positions (e.g., DIN rail compatibility for PLC cabinets) to simplify on-site installation.
Cost-Benefit Balance: Avoid over-customization (e.g., overly complex enclosures) if basic standard sizes meet 80% of needs; prioritize critical adjustments (e.g., waterproofing, space for expansion).
Compliance with Certifications: Ensure custom designs meet local electrical standards (e.g., UL, CE, CCC) to avoid regulatory issues.
