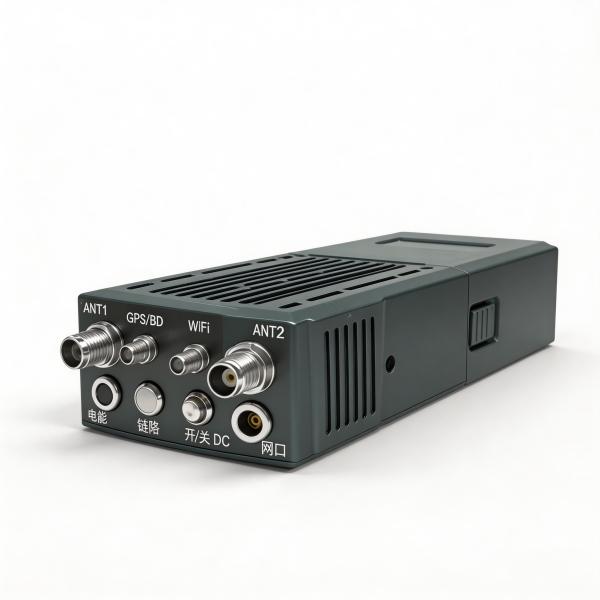

Integrated Rugged Radio Handheld MANET Solutions Mobile Networking Ad Hoc Radio
Integrated Rugged Radio Handheld MANET Solutions Mobile Networking Ad Hoc Radio
Integrated Rugged Radio Handheld MANET Solutions Mobile Networking Ad Hoc Radio
Integrated Rugged Radio Handheld MANET Solutions Mobile Networking Ad Hoc Radio
Integrated Rugged Radio Handheld MANET Solutions Mobile Networking Ad Hoc Radio
Integrated Rugged Radio Handheld MANET Solutions Mobile Networking Ad Hoc Radio
Specifications
Brand Name :
hanxun
MOQ :
2
Delivery Time :
Negotiable
Certification :
CE
Price :
Negotiable
Payment Terms :
T/T,L/C
Place of Origin :
China
Interface :
Serial port, Ethernet port, power interface, RF interface
Net Device Dimensions :
≤225 × 90 × 50mm
Net Device Weight :
≤1.2 kg
Bandwidth :
5、10、20MHz
Frequency Range :
UHF、L、S, Customizable
Description

Integrated Handheld Solutions for Ad Hoc Mobile Networking

Product Introduction

Architecture: Distributed, infrastructureless MANET.

Antenna System: 2×2 MIMO dual-antenna.

Power: 4W transmit power.

Data: Layer 2 transparent transmission.

Services: Supports IP-based video, voice, and data.


Wideband Communication
Supports wideband communication in the UHF,L,S frequency band, effectively adapting to complex terrain environments, and provides customizable frequency bands.
Intelligent Frequency Selection
Supports intelligent frequency selection, with adjustable bandwidths of 5/10/20 MHz.
HD Display
Equipped with a display screen for viewing device status, link status, straight-line distance to nodes, etc. Quick configuration can be performed via on-screen buttons.
Battery Indicator
Features a touch-activated battery display; a light touch shows the current battery level.

Specifications

Encryption

Support software encryption

Power Supply

Battery-powered, DC external power supply

Modulation

BPSK/QPSK/16QAM/64QAM,dynamic self-adapting

Networking capability

32 nodes, support customization

MIMO Mode

2T2R

Voice function

PTT voice communication system

Network port

100-megabit data network port

Other functions

Time Division multiplexing, frequency division multiplexing, beam forming, MIMO
