Ultra-Portable Ad Hoc Mesh Radio Hub
Ultra-Portable Ad Hoc Mesh Radio Hub
Ultra-Portable Ad Hoc Mesh Radio Hub
Ultra-Portable Ad Hoc Mesh Radio Hub
Ultra-Portable Ad Hoc Mesh Radio Hub
Ultra-Portable Ad Hoc Mesh Radio Hub
Specifications
Price :
Negotiable
Net Device Dimensions :
≤225 × 90 × 50mm
Net Device Weight :
≤1.2 kg
Brand Name :
hanxun
Bandwidth :
5、10、20MHz
Certification :
CE
MOQ :
2
Payment Terms :
T/T,L/C
Interface :
Serial port, Ethernet port, power interface, RF interface
Delivery Time :
Negotiable
Description

Product Introduction

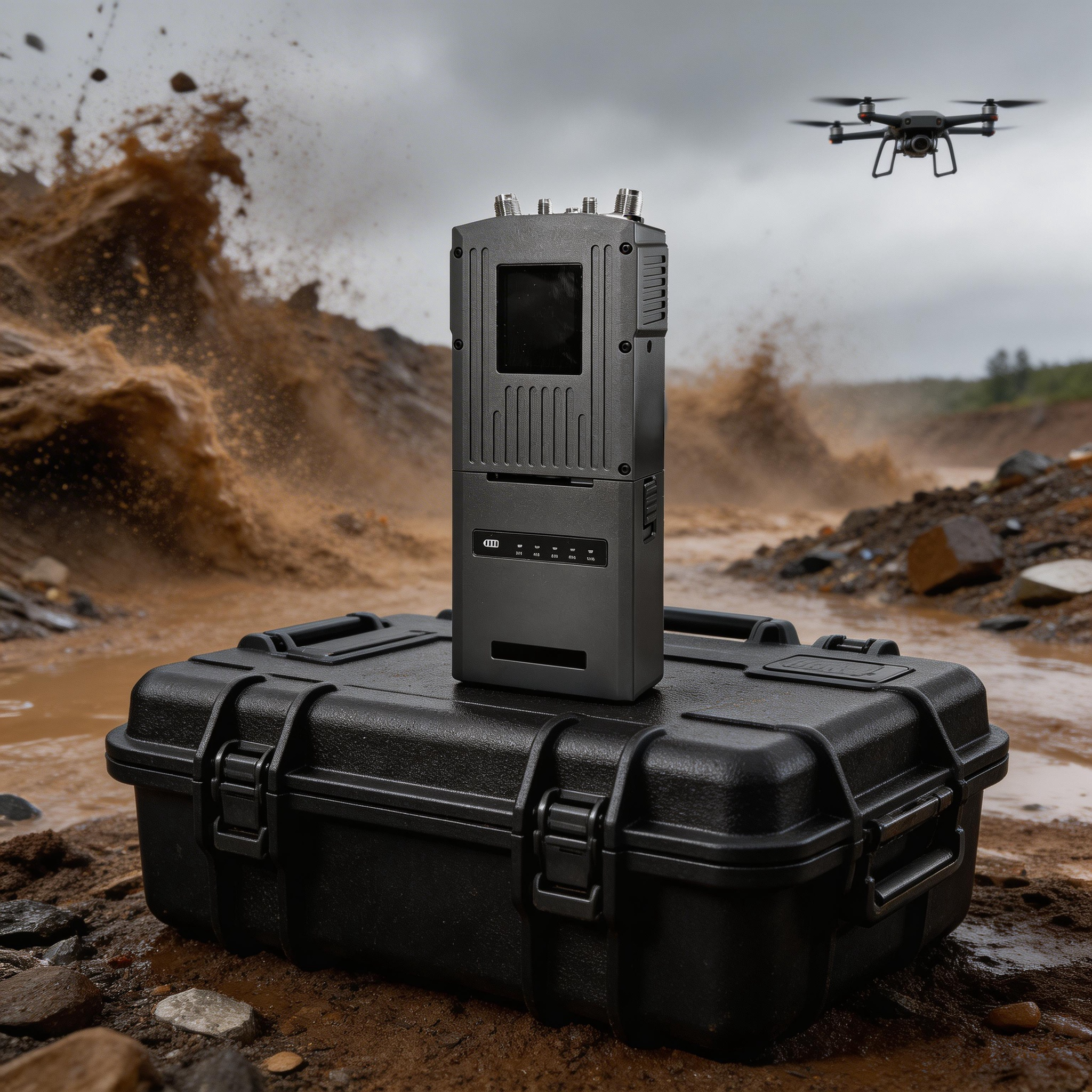

Ensure reliable connectivity with this 4W handheld radio. Its 2×2 MIMO dual-antenna system and distributed architecture provide a stable, transparent Layer 2 link for critical data, voice, and video services across an ad hoc network.


Wideband Communication
Supports wideband communication in the UHF,L,S frequency band, effectively adapting to complex terrain environments, and provides customizable frequency bands.
Intelligent Frequency Selection
Supports intelligent frequency selection, with adjustable bandwidths of 5/10/20 MHz.
HD Display

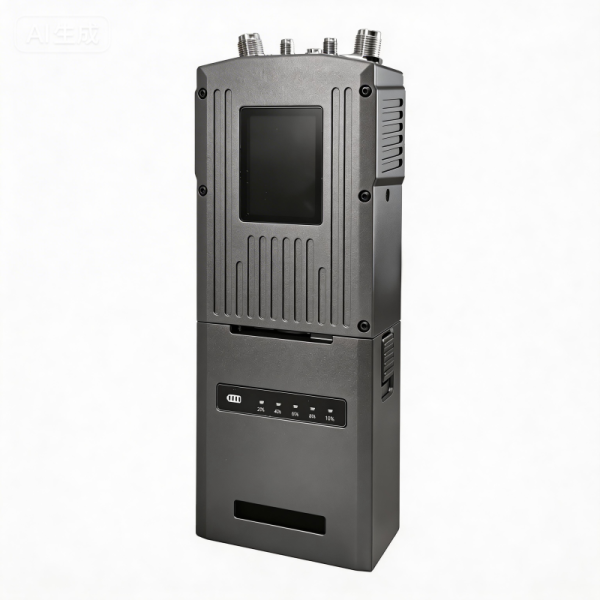

Equipped with a display screen for viewing device status, link status, straight-line distance to nodes, etc. Quick configuration can be performed via on-screen buttons.
Battery Indicator
Features a touch-activated battery display; a light touch shows the current battery level.




Specifications


Encryption Support software encryption
Power Supply Battery-powered, DC external power supply
Modulation BPSK/QPSK/16QAM/64QAM,dynamic self-adapting
Networking capability 32 nodes, support customization
MIMO Mode 2T2R
Network port 100-megabit data network port
Other functions Time Division multiplexing, frequency division multiplexing, beam forming, MIMO
