12m High Mounting PIR Dimmable Motion Sensor, IP65 Rating, Daylight Priority Function
12m High Mounting PIR Dimmable Motion Sensor, IP65 Rating, Daylight Priority Function
12m High Mounting PIR Dimmable Motion Sensor, IP65 Rating, Daylight Priority Function
12m High Mounting PIR Dimmable Motion Sensor, IP65 Rating, Daylight Priority Function
12m High Mounting PIR Dimmable Motion Sensor, IP65 Rating, Daylight Priority Function
12m High Mounting PIR Dimmable Motion Sensor, IP65 Rating, Daylight Priority Function
Specifications
Ripple Voltage :
<100mVp-p
IP Rating :
IP65
Lifetime :
3 years warranty@Ta
Detection mode :
PIR detection
Brand Name :
Merrytek
Model Number :
MC079D RC IR
Certification :
UL 8750(Pending)
Place of Origin :
Shenzhen, China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs/month
Delivery Time :
1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit.
Packaging Details :
Clapboard+carton (K=A)
Operating Voltage :
12V DC
Mounting Height :
Typical 10m (12m Max )
Description
12m High Mounting PIR Dimmable Motion Sensor
Product Overview

This high-performance PIR motion sensor features a 12-meter maximum mounting height, IP65 weatherproof rating, and daylight priority function for optimal energy efficiency in industrial and commercial applications.

Key Features
  • High mounting PIR sensor design
  • Maximum mounting height of 12 meters
  • IP65-rated enclosure for dust and water resistance
  • 3.5mm earphone connector receptacle
  • Optional side mount bracket with 1/2 inch hole
Technical Specifications
Input Parameters
Input Voltage12±1VDC
  • Operating Voltage: 12V DC
  • Ripple Voltage: <100mVp-p
    • 0-10VDC Dimming SignalYes
    Sensor Parameters
    Detection ModePIR detection
    Operating Functions
    • Detection Area: 100%/75%/50%/25%
      • Hold Time5S/30S/1min/3min/5min/10min/20min/30min
    • Stand-by Period: 0s/10S/1min/3min/5min/10min/30min/+∞
    • Daylight Sensor: 5/15/30/50/100/150lux/Disable
    • Stand-by DIM Level: 10%, 20%, 30%, 50%
    • Detection Radius: 2-4m (indoor, sensitivity 100%, no direct sunlight to sensor)
    • Mounting Height: Typical 10m (12m Max)
    Operating Environment
    Operating Temperature0~35℃
  • Storage Temperature: -20℃~+80℃ Humidity: 10%-95% (non-condensing)
    • Certifications & Standards
    CertificateUL 8750 (Pending)
  • Environmental Requirement: Compliant to RoHS
    • IP RatingIP65
    Additional Information

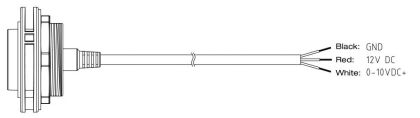

    Wiring MethodDC headphone stand (3.5mm)
  • Installation: Mount center or side of highbay
  • Package: Clapboard+carton (K=A)
  • Net Weight: 80g
  • Lifetime: 3 years warranty
    • Important Note: When ambient temperature exceeds 33℃, detection performance will be affected.
    Application Guidelines
    • Professional installation by qualified electrician required
    • PIR sensors cannot penetrate materials - ensure clear line of sight
    • Performance may be reduced in cold environments with thick clothing
    • Avoid positioning sensor towards heat sources like air conditioners
    • Designed for indoor use only - outdoor sunlight affects detection
    • Dimming performance varies with different 0-10V drivers
