MC060S RC Motion Sensors MH03 Remote Control 250W For Lights On Off
MC060S RC Motion Sensors MH03 Remote Control 250W For Lights On Off
Specifications
Brand Name :
Merrytek
Model Number :
MC060S RC
Place of Origin :
China
Certification :
TUV
MOQ :
Stop production, not available.
Price :
Negotiation
Payment Terms :
T/T or Western Union or PayPal
Supply Ability :
10,000pcs per month
Delivery Time :
1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Packaging Details :
Packed in bubble bag firstly, and then reinforced with carton for outer packing
Product Name :
Remote Control Microwave Motion Sensor
Rated Input Voltage :
220-240VAC
Stand-by Power :
≤0.5W
Load Power :
250W (Inductive) 500W（Resistive）
Operating frequency :
5.8 GHz ±75 MHz
Dimming control :
0N/0FF
Operating temperature :
-25℃ ~ +60℃
Certificate requirement :
TUV
IP rating :
IP20(Built-in)
Description

Stop production, not available.

MC060S RC Microwave Motion Sensor On-off Control Can Be Set Via MH03 REMOTE CONTROL

  • On-Off function for tri-proof light
  • Remote control microwave motion sensor
  • Stand-by power ≤ 0.5W
  • Functions can be set via infrared remote control MH03, such as detection area, hold time and daylight sensor.
  • 5 Years Guarantee

Input Input Voltage 198-264V AC 50Hz
Rated Input Voltage 220-240V AC 50Hz
Stand-by Power ≤ 0.5W
Output Load Power 250W (Inductive) 500W(Resistive)
Sensor Parameters Hold Time

5s/30s/90s/3min/20min/30min

Remote control:10S/90S/3min/10min
Sensing Range

100%/75%/50%/25%

Remote control:100%/50%
Daylight Sensor

Disable/50Lux/25Lux/10Lux/2Lux

Remote control:5Lux/15Lux/50Lux/Disable
Mounting Height Ceiling Mounting:3-6m
Detection Area Walking 0.5-1m/S keep walking≥2mwalk & stop≥5m
Wireless Parameters Operating frequency 5.8 GHz ±75 MHz
Dimming control 0N/0FF

Operating

Environment

 Operating temperature -25℃ - +60℃
Storage temperature N/A

Safety

& EMC

 Isolation pressurization N/A
EMC EN55015
Certificate requirement TUV
Others Wiring method Press fit terminal (4)
IP rating IP20(Built-in)
Protection Class Class II
Installation Size 168*21*28mm
Packaging requirement Clapboard +Outer Carton (K=A)
Life 50000h

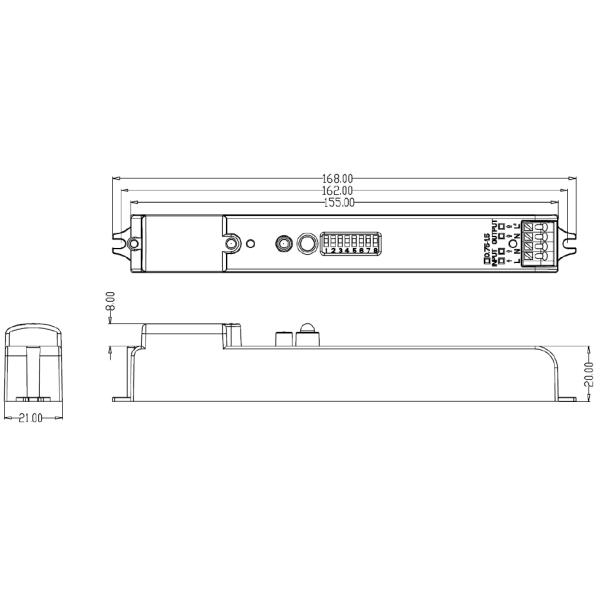

Dimension (Unit:mm)
MC060S RC Motion Sensors MH03 Remote Control 250W For Lights On Off
Wiring Diagram
MC060S RC Motion Sensors MH03 Remote Control 250W For Lights On Off

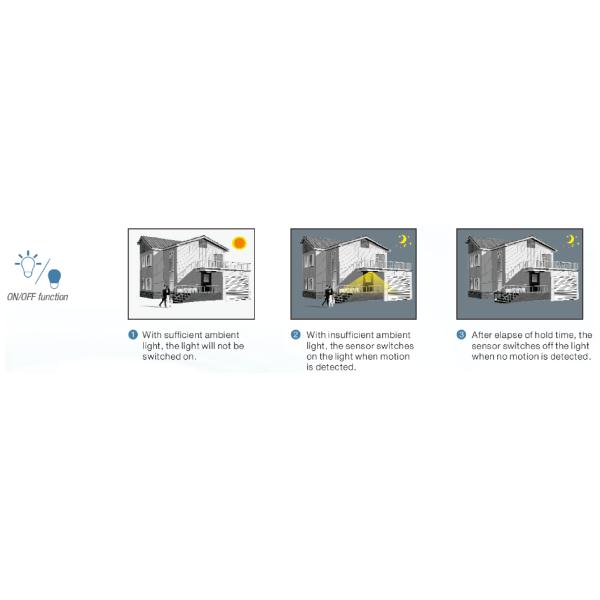

Function
MC060S RC Motion Sensors MH03 Remote Control 250W For Lights On Off
