MC079D 99 Dimmable Motion Sensor Low Impedance Antenna Zhaga Interface
MC079D 99 Dimmable Motion Sensor Low Impedance Antenna Zhaga Interface
Specifications
Brand Name :
Merrytek
Model Number :
MC079D 99 Series Interface Installation Socket zhaga Book18
Certification :
CE
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000/per month
Delivery Time :
1, Sample and small order: Within 5 working days after receiving your payment(when in stock). 2, Bulk order: 4~5 weeks after receiving deposit.
Packaging Details :
Packed in bubble bag firstly, and then reinforced with carton for outer packing
Rated current(Amperes) :
1.5A
Rated voltage(Volts) :
0-30Vdc
Operating Frequency :
50/60Hz
Dielectric Strength :
10KV (To mounting surface)
IP classification :
IP66
Environment Temperature(℃) :
-40 to 70
Insulation material :
PBT flame retardant VO
Contact material (Terminal) :
Phosphor copper plated with silver
Environmental requirements :
ROHS 2.0
Description

MC079D 99 Dimmable Motion Sensor Low Impedance Antenna Zhaga Interface

【Product features】

  • It provide Zhaga Book 18 adjustment interface, to develop standard equipment for related lighting applications;
  • It can realize robust twist-lock contacts for reliable power interconnection;
  • DALI 2.0 protocol (pin2-3) wiring port can be provided to meet the 0-30V dimming function; DALI 2.0
  • The light control base is assembled and fixed by a compression nut to facilitate integration into new or existing lighting applications;
  • Cables suitable for lighting equipment with a rated temperature of 105° are available;
  • The length of the wiring can be customized and produced according to customer requirements, making it easy to adapt to different lamps;
  • The plastic material is V0 grade, anti-UV material, safe and reliable in application;

【Parameter features】

Rated current(Amperes) 1.5A
Rated voltage(Volts) 0-30Vdc
Operating Frequency 50/60Hz
Dielectric Strength 10KV (To mounting surface)
IP classification IP66
Environment Temperature(℃) -40 to 70
Insulation material PBT flame retardant VO
Contact material (Terminal) Phosphor copper plated with silver
Environmental requirements ROHS 2.0

Wire specifications and load applications:

Wiring Specification

Wiring Length

(Customized)

 Tail Processing (Customized) Load Application
UL 1015 18AWG

Pin 1:150±10mm

Pin 2:150±10mm

Pin 3:150±10mm

Pin 4:150±10mm

 Wiring 8±1mm

For DALI Sensor

Pin 1: 24VDC (Brown)

Pin 2: DALI - (Grey)

Pin 3: DALI + (Blue)

Pin 4: general I/O (Black)

For 0-10V Sensor

Pin 1: 12VDC (Brown)

Pin 2: GND (Grey)

Pin 3: N/A (Blue)

Pin 4: 0-10V (Black)
UL 1015 20AWG
UL 1015 22AWG

Product wiring diagram:

MC079D 99 Dimmable Motion Sensor Low Impedance Antenna Zhaga Interface

【Sketch map】

  • Size(units: mm)

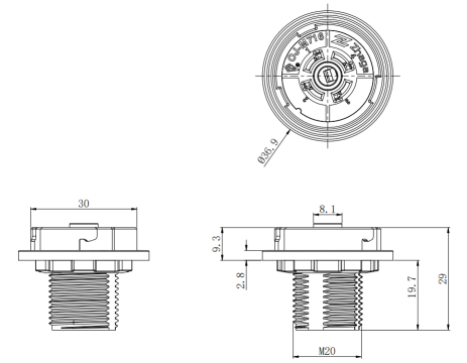

MC079D 99 Dimmable Motion Sensor Low Impedance Antenna Zhaga Interface

【Matters attention】

Installation should be installed by professional electricians, please power off before installation, wiring, etc
