MC076S Microwave Motion Sensor On Off Control For LED Linear Batten Light
MC076S Microwave Motion Sensor On Off Control For LED Linear Batten Light
Specifications
Brand Name :
Merrytek
Model Number :
MC076S
Certification :
CE
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T or Western Union or PayPal
Supply Ability :
10,000pcs per month
Delivery Time :
1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Packaging Details :
Packed in bubble bag firstly, and then reinforced with carton for outer packing
Product Name :
Microwave Motion Sensor
Rated Input Voltage :
220-240VAC
Stand-by Power :
≤0.5W
Load Power :
250W (Inductive) 400W（Resistive）
Operating frequency :
5.8 GHz ±75 MHz
control :
0N/0FF
Operating temperature :
-25℃ ~ +60℃
IP rating :
IP20(Built-in)
Description

MC076S Motion Sensors On-off Control with Needle Antenna for LED Linear Batten Light

  • On-Off function for tri-proof light
  • Stand-by power ≤ 0.5W
  • detection area, hold time and daylight sensor could be set via DIP
  • 5 Years Guarantee

Input Input Voltage 198-264V AC 50Hz
Rated Input Voltage 220-240V AC 50Hz
Stand-by Power ≤ 0.5W
Output Load Power 250W (Inductive) 400W(Resistive)
Sensor Parameters Hold Time

5s/30s/90s/3min/20min/30min
Sensing Range

100%/75%/50%/25%
Daylight Sensor

Disable/50Lux/30Lux/10Lux/2Lux
Mounting Height Ceiling Mounting:2.5-4m
Detection Area Walking 0.5-1m/S keep walking≥2mwalk & stop≥5m
Wireless Parameters Operating frequency 5.8 GHz ±75 MHz
control 0N/0FF

Operating

Environment

 Operating temperature -25℃ - +60℃
Storage temperature -35℃~+80℃ Humidity : 85% (Non-condensing)

Safety

& EMC

 Isolation pressurization N/A
EMC EN55015
Certificate requirement CE
Others Wiring method Press fit terminal (4)
IP rating IP20(Built-in)
Protection Class Class II
Installation Size 169*26*40mm
Packaging requirement Clapboard +Outer Carton (K=A)
Life 50000h
Dimension (Unit:mm)
MC076S Microwave Motion Sensor On Off Control For LED Linear Batten Light

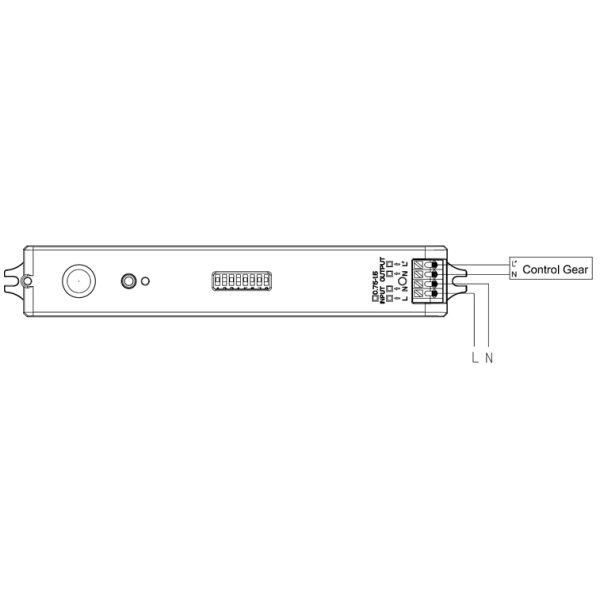

Wiring Diagram
MC076S Microwave Motion Sensor On Off Control For LED Linear Batten Light
Function
MC076S Microwave Motion Sensor On Off Control For LED Linear Batten Light
