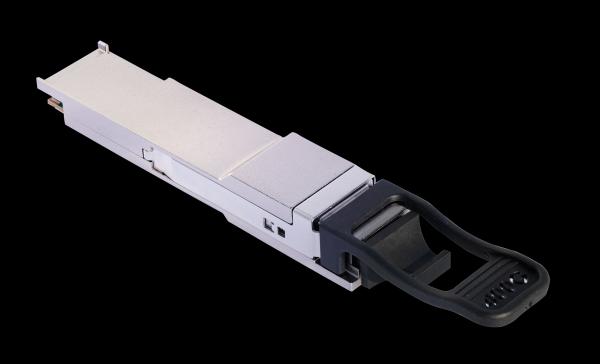

High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
Specifications
Certification :
CE, ISO, RoHS, GS
MOQ :
50
Price :
Negotiable
Brand Name :
starsurge
Model Number :
400G OSFP DR4 CC-OSFP04DR4-12D
Place of Origin :
China
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
According to quantity
Packaging Details :
carton
Model NO. :
CC-OSFP04DR4-12D
Support Network :
Rdma
Information content :
Data
Condition :
New
Speed :
400g
Mode :
Dr4
Transport Package :
Packing
Specification :
400*265*100mm
Origin :
China
Production Capacity :
50000
Description
High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
400G OSFP DR4 CC-OSFP04DR4-12D Transceiver
400G OSFP DR4 CC-OSFP04DR4-12D
400G OSFP DR4 CC-OSFP04DR4-12D Features
l Hot-pluggable OSFP400G SR4 multimode transceiver l Compliant with OSFP RHS
l Compliant with CMIS Rev 5.0and above revision
l 4-channels of 100G-PAM4 electrical and optical modulation
l Maximum power consumption 8.5W with 4 channels and 6.5W with 2 channels l Single MPO-12 APC receptacles
l Up to 70m reach on OM3 and 100m reach on OM4
l Operates as a 200Gb/s NDR200 transceiver with 2-fiber splitter ends l Case operating temperature 0°C to 70°C
400G OSFP DR4 CC-OSFP04DR4-12D Applications
l InfiniBand NDR
l 400G SR4 applications with FEC
l 4 x 100GbE breakout application
Description
CC-OSFP04SR4-12D OSFP transceiver modules are designed for use in 400 Gigabit Ethernet or InfiniBand links up to 100m multi-mode fiber. They are compliant with the OSFP MSA, IEEE P802.3db/D3.0 and IEEE P802.3ck . Digital diagnostic functions are available via the I2C interface, as specified by the OSFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038
Parameter
Symbol
Min.
Typical
Max.
Unit
Notes
Operating Case Temperature
TOPR
0
-
70
ºC
Power Supply Voltage
VCC
3.135
3.3
3.465
V
Instantaneouspeak current

athotplug
ICC_IP
-
-
3600
mA
Sustainedpeak current athotplug
ICC_SP
-
-
3000
mA
MaximumPowerDissipation(400G)
PD
-
-
8.5
W
MaximumPowerDissipation(200G)
PD
-
-
6.5
W
MaximumPowerDissipation,Low

PowerMode
PDLP
-
-
1.5
W
SignalingRateper Lane
SRL
-
53.125
-
GBd
PAM4
I2CClockRate
-
-100
-
400
kHz
Power SupplyNoise Tolerance

(10Hz -10MHz)
-
-
-
66
mV
RxDifferentialData OutputLoad
-
-
100
-
Ohm
OperatingDistance(OM3)
-
2
-
70
m
OperatingDistance(OM4)
-
2
-
100
m
Parameter
Symbol
Min.
Typical
Max.
Unit
Notes
Wavelength
λC
844
850
863
nm
RMS spectral width
λrms
0.6
nm
AverageLaunchPower, eachlane
AOPL
-4.6
-
4.0
dBm
1
Outer OpticalModulation

Amplitude (OMAouter), eachlane
TOMA
-2.6
3.5
dBm
2
Transmitter andDispersionEye

ClosureforPAM4(TDECQ),

eachlane
TDECQ


-


-
4.4
dB
AverageLaunchPower of OFFTransmitter, eachlane
TOFF
-
-
-30
dBm
ExtinctionRatio, eachlane
ER
2.5
-
dB
RIN21.4OMA
RIN
-
-
-132
dB/Hz
OpticalReturnLoss Tolerance
ORL
-
12
dB
Transmitter Reflectance
TR
-
-
-26
dB
3
Parameter
Symbol
Min.
Typical
Max.
Unit
Notes
Wavelength
λC
842
850
863
nm
Damage Threshold, average optical

power, eachlane
AOPD
5
-
-
dBm
AverageReceivePower, eachlane
AOPR
-6.3
-
4.0
dBm
ReceivePower (OMAouter),

eachlane
OMAR
-
-
3.5
dBm
ReceiverReflectance
RR
-
-
-26
dB
Receiver Sensitivity (OMAouter),

eachlane
SOMA
-
-
-4.4
dBm
1
StressedReceiver Sensitivity(OMAouter), eachlane
SRS
-
-
-1.8
dBm
2
Conditions of stressedreceiver sensitivity test
Stressed eyeclosure forPAM4
SECQ
4.4
dB
OMAouterof each aggressorlane
OMAouter
3.5
dBm
Parameter
Symbol
Min.
Typical
Max.
Unit
Notes
AC common-mode output Voltage(RMS)
-
-
25
mV
Differential output Voltage(Longmode)
-
-
845
mV
Differential output Voltage(Short mode)
-
-
600
mV
Near-endEyeheight, differential
70
-
-
mV
Far-endEyeheight, differential
30
-
-
mV
Far endpre-cursorratio
-4.5
-
2.5
%
Differential TerminationMismatch
-
-
10
%
TransitionTime(min,20%to80%)
8.5
-
-
ps
DC common modeVoltage
-350
-
2850
mV
Specification
Parameters
Symbol
Min
Max
Units
Supply Voltage
Vcc
0
+3.6
Storage Temperature
-40
85
Optical Receiver Input
-
+5.4
Average, each lane
High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
Company Profile

Company Introduction
Our company has more than10 years of experience, hasa large factory,and strong technical team support, accumu-lated aarge number of customers and expe-rience, can provide you with thelowest priceof products and the best quality service.The agency brands include Mellanox, Ruckus, Aruba, Extreme, etc., main products includes original brand new network switch, network card, wireless Access Point , wireless controller, cable etc.We have 10 million inventory for you tochoose, can provide a variety of types ofproducts, large quantities of supply.After ensuring the accurate arrival of yourgoods, provide customer service 24 hours consultation and technical support.With a professional sales and technical team, we have earned ourselves a high reputation among the world market.

High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
CUSTOMER REVIEW /corporate strength
Ø We have many products of Mellanox, Extreme, Aruba etc. Such as witches, network cards, cables, modules, wireless APs as so on.
Ø We are an elite agent of Mellanox .
Ø We are the largest agents of Extreme in China.
Ø Our main office is in Beijing, and our branches are in Nanjing, Shanghai, Guangzhou,Shenzheng and Hong Kong. We have warehouses in Beijing, Nanjing, and Hong Kong, with a large amount of original and new product inventory, which can achieve fast delivery in multiple locations.
Ø Our products are mainly applicated for PC (high performance computing), cloud computing, data centers, enterprise computing, storage, and has software development capabilities.
Ø We had provided intelligent transformation total solution for many customers in the fields of artificial intelligence, supercomputing, government and enterprise research institutes, universities, the Internet, and other industries. Such as BerryGenomics, FedEx, Tsinghua Research Institute etc.

Authorization and Certification

Our company cooperate with many famous brands have, company is nvidia elite agents, sales Mellanox related network products, at the same time also is Extreme, the Ruckus, Aruba, H3C and other gold medal agent has many brands of engineer's qualification certificate, to provide reliable technical support.

High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
Packing & Delivery
High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
High-Speed 400G OSFP DR4 CC-OSFP04DR4-12D Transceiver Module for Data Centers Large Quantity of Spot Goods
Our network products are all packaged in brand-new original sealed boxes. They are unopened after leaving the factory. The quality is guaranteed. On the packaging, we use high-density EPE pearl cotton, anti-static air cushion films and other professional cushioning materials, combined with custom hard cardboard boxes for reinforcement. They provide comprehensive protection against shock, moisture and static electricity. We offer various shipping methods such as air express, international dedicated lines, and sea transportation for delivery, covering 100+ countries and regions worldwide. The logistics information can be checked in real time. The products enjoy a one-year warranty. Damaged during transportation can be returned or exchanged for free. You can make your purchase with peace of mind.
FAQ
Q1: What can you buy from us?
A: Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, AccessPoint, etc.

Q2: How about the delivery date?
A: It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.

Q3: What's yourwarranty terms?
A: We supply 12 months warranty time.

Q4: How about the Shipping Method?
A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.

Q5: Can I get some samples?
A: Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.

Q6: What are your core strengths?
A: First-hand supply, Original and new products with the favorable price and perfect after-sales service
Q7: Price questions
A: The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.
