Specifications
Certification :
CE, ISO, RoHS, GS
MOQ :
50
Price :
Negotiable
Brand Name :
starsurge
Model Number :
CC-QJQCL1-SD
Place of Origin :
China
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
According to quantity
Packaging Details :
carton
Model NO. :
40G QSFP+ LR4 CC-QJQCL1-SD
Support Network :
Ethernet
Information content :
Data
Condition :
New
Speed :
40g
Mode :
Lr4
Transport Package :
Packing
Specification :
400*265*100mm
Trademark :
optmodule
Origin :
China
Production Capacity :
50000
Description

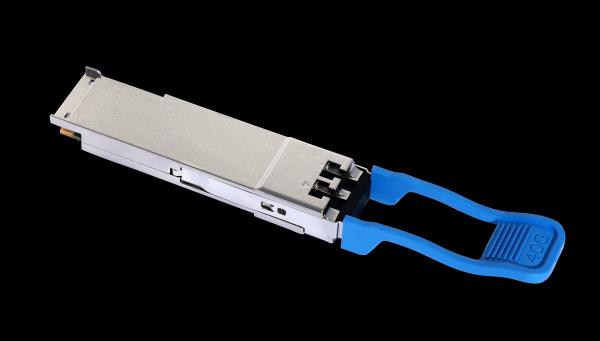

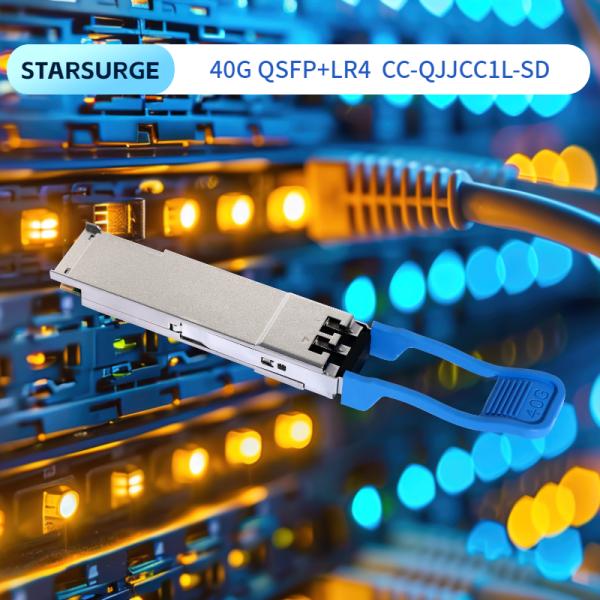

40Gb/s QSFP+ LR4 CC-QJQCL1-SD Optical Transceiver
CC-QJQCL1-SD Features
.Compliant with 40G Ethernet IEEE 802.3ba 40GBASE LR4 standards
.Uncooled 4x10Gb/s CW DM transmitter
.Supports Infiniband SDR, DDR and QDR
.Wide Operating Temperature(0°C~70°C)Applications
.Data Center Backbone
.Ethernet Switches
.High-speed Servers
.High-performance Computing Clusters
.SAN, Routers, Hubs, Load Balancer
CC-QJQCL1-SD Description
This product is a transceiver module designed for 10km optical communication applications. The design is compli- ant to 40GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s elec- trical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
Parameter
Symbol
Min
Max
Unit
Storage Temperature
TStorage
-40
+85
°C
RelativeHumidity (non-condensation)
RH
0
+85
%
Parameter
Symbol
Conditions
Min
Typ
Max
Unit
Case Temperature
TC
0
40
70
°C
Power Supply Voltage
VCC
3.135
3.3
3.465
V
SignalingRate each Channel
10.3125
Gbps
Two Wire Serial(TWS)InterfaceClockRate
---
---
400
kHz
Power Supply Noise
---
---
50
mVpp
Supply NoiseRejection
---
---
100
mV
Receiver DifferentialData Output
---
100
Ohm
OperatingDistance
D
---
10
---
km
Parameter
Symbol
Conditions
Min
Typ
Max
Unit
Power Consumption
3.5
W
Supply Current
ICC
1050
mA
Parameter
Symbol
Conditions
Min
Typ
Max
Unit
Signalingrate, each lane(range)
GBb
10.3125
GBb




CenterWavelength
λ0
1264.5
1277.5
nm
λ1
1284.5
1297.5
nm
λ2
1304.5
1317.5
nm
λ3
1324.5
1337.5
nm
Side-mode suppression ratio
SMSR
30
dB
Total averagelaunchpower
8.3
dBm
Averagelaunchpower, eachlane
Pf
-7
2.3
dBm
OpticalModulation

Amplitude (OMA), eachlane
TxOMA
-4
3.5
dBm
Parameter
Symbol
Conditions
Min
Typ
Max
Unit
Signalingrate, each lane(range)
GBb
10.3125
GBb




CenterWavelength
λ0
1264.5
1277.5
nm
λ1
1284.5
1297.5
nm
λ2
1304.5
1317.5
nm
λ3
1324.5
1337.5
nm
Damage threshold
3.3
dBm
Averagepower atreceiverin-put, eachlane
-11.5
2.3
dBm
Receivepower, eachlane(OMA)
3.5
dBm
Difference inreceivepower

between any two lanes(OMA)
7.5
dBm
Receiver reflectance
-26
dB
Receiver sensitivity (OMA)
SOMA
BER@10e-

12
-11.5
dBm
LOS Assert
LOSA
-28
dBm
LOSDe-Assert
LOSD
-11.5
dBm
LOSHysteresis
0.5
6
dB
