200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
Specifications
MOQ :
1
Price :
Negotiable
Brand Name :
starsurge
Model Number :
200G QSFP56-SR4 CC-QSFP02SR4-12C
Certification :
CE, ISO, RoHS, GS
Place of Origin :
China
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
According to quantity
Packaging Details :
carton
Model NO. :
CC-QSFP02SR4-12C
Operating Temperature :
0℃ - 70℃
Shape :
Cuboid
Technics :
Cmis
Power :
<8W
Selling Units :
Single Item
Single Package Size :
15X10X5 Cm
Use :
Hig Performance Computing Interconnect
Network :
Optical Network
Data Rate :
400gbps(4X 106.25gbps)
Transmission Distance :
up to 70m Reach on Om3, up to 100m Reach on Om4
Transport Package :
Packing
Specification :
850nm
Trademark :
Starsurge
Origin :
China
Description

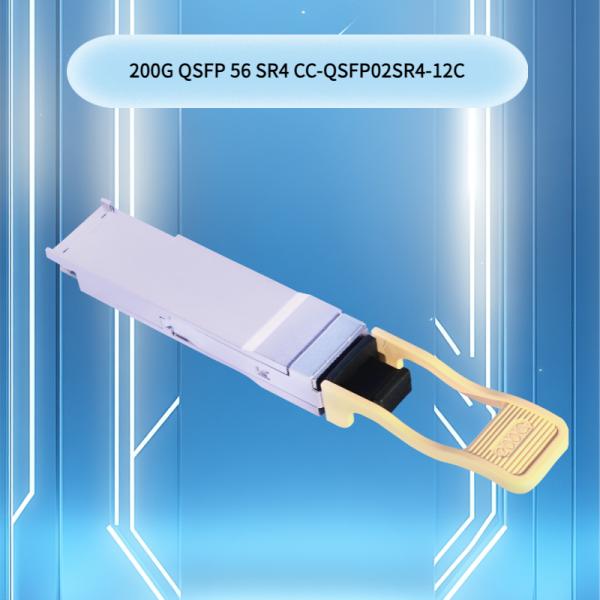

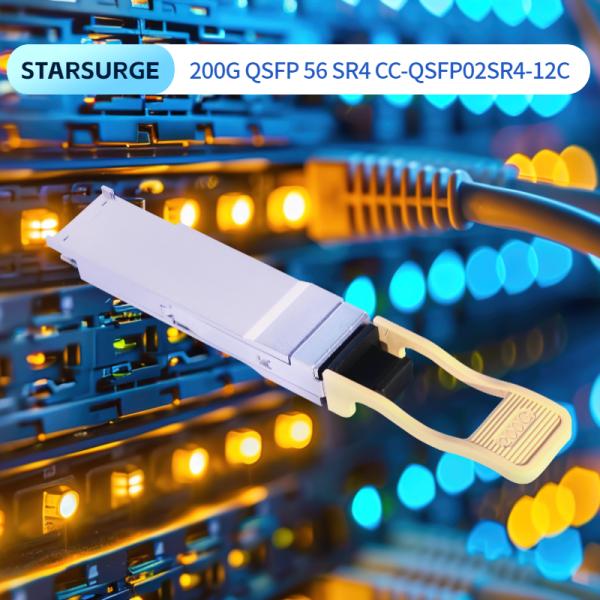

200G QSFP56-SR4 CC-QSFP02SR4-12C
200G QSFP56 SR4 Optical Transceiver CC-QSFP02SR4-12C

200G QSFP56-SR4 Product is a QSFP56 Optical transceiver for 4x26.56GBaud optical links. It is compliant with the SFF -8679 MSA. It operates at 26.56GBaud up to 100m over OM4 Multi-mode fiber.

200G QSFP56-SR4 Applications
High performance computing interconnect Data center

200G QSFP56-SR4 Features
4 independent parallel optical channels Each channel typical data rate 26.56GBaud with inte grated CDR
Hot Pluggable
Up to 100m link on OM4 Multi-mode Fiber and 70m OM3 Multi- mode Fiber
850nm VCSEL/PD Array Technology
CML Compatible electrical I/O
200G QSFP56-SR4 SFF-8679 MSA ComplianceTiming requirement of control and status I/O comply QSFP-DD Hardware Rev5.1
MPO-12 APC Interface
CMIS5.0
Case Operating Temperature: Commercial: 0 to 70ºC
RoHS II Compliance
200G QSFP56-SR4 Specification
Parameter Symbol Min Max Units Notes
Storage Ambient Temperature Tstg -40 +85 ºC Exceeding the AbsoluteMaximum

Ratings may causeirreversibledamageto thedevice.Thedeviceisnotintendedtobeoperatedundertheconditionof sim-ultaneousAbsoluteMaximumRatings,a

condition which may causeirreversibledamage to thedevice.
RelativeHumidity -Storage RHS 0 95 %
RelativeHumidity -Operating RHO 0 85 %
Module Supply Voltage VCC -0.5 3.6 V
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
Packing & Delivery
All products are packed in brand-new, original and sealed packaging. From production to shipment, they have not been opened. This ensures that the products you receive are in perfect condition. During the packaging process, we use professional cushioning materials such as high-density EPE pearl cotton and anti-static air bubble film to build multiple protective barriers for the products. Whether it's routers, switches or precise server components, they can be properly protected in an environment that is shockproof, moisture-proof and anti-static. Our professional logistics team strictly follows standardized packaging procedures, uses customized hard cardboard boxes, and reinforces them with cross-wrapped tapes to ensure the outer packaging is sturdy and durable.
When shipping, we offer a variety of flexible transportation methods for you to choose from: priority air express with delivery to major cities around the world within 48 hours; cost-effective international dedicated logistics covering 100+ countries and regions; and maritime services for bulk goods, equipped with professional container reinforcement plans. The entire transportation process is tracked in real time by the logistics information system, and you can check the product location at any time by entering the order number. In addition, we provide a one-year warranty service for all products. If any non-human damage occurs during transportation, we will immediately arrange for free return or exchange, allowing you to shop with peace of mind without any worries.
Company Profile
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
Company Introduction
Our company has more than10 years of experience, hasa large factory,and strong technical team support, accumu-lated aarge number of customers and expe-rience, can provide you with thelowest priceof products and the best quality service.The agency brands include Mellanox, Ruckus, Aruba, Extreme, etc., main products includes original brand new network switch, network card, wireless Access Point , wireless controller, cable etc.We have 10 million inventory for you tochoose, can provide a variety of types ofproducts, large quantities of supply.After ensuring the accurate arrival of yourgoods, provide customer service 24 hours consultation and technical support.With a professional sales and technical team, we have earned ourselves a high reputation among the world market.
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
CERTIFICATE DISPLAY /corporate strength
We have product certifications such as CE, FCC, RoHS, UL, etc., ensuring the high quality of our products.
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
PRODUCTION / Workshop
Large-scale factory processing and manufacturing, with professional operation throughout the entire process to ensure product quality. Professional technical support and on-site construction can provide relevant supply support and deployment for different projects or requirements
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
200g Qsfp56 Sr4 CC-QSFP02SR4-12C Optical Transceiver 100m on Om4 / 70m on Om3 Fiber High-Performance Computing Interconnect for Data Centers
FAQ
Q1: What can you buy from us?
A: Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, AccessPoint, etc.

Q2: How about the delivery date?
A: It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.

Q3: What's yourwarranty terms?
A: We supply 12 months warranty time.

Q4: How about the Shipping Method?
A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.

Q5: Can I get some samples?
A: Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.

Q6: What are your core strengths?
A: First-hand supply, Original and new products with the favorable price and perfect after-sales service

Q7: Price questions
A: The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.
