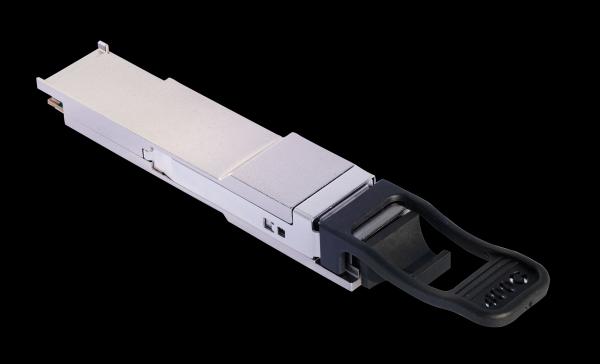

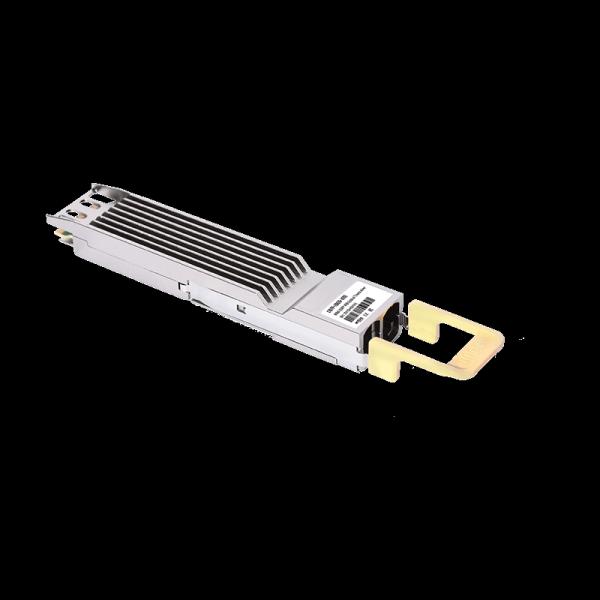

Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
Specifications
Certification :
CE, ISO, RoHS, GS
MOQ :
50
Price :
Negotiable
Brand Name :
starsurge
Model Number :
800G OSFP 112 SR4 CC-OSFP08SR8-12D
Place of Origin :
China
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
According to quantity
Packaging Details :
carton
Model NO. :
CC-OSFP08SR8-12D
Support Network :
Ethernet
Information content :
Data
Condition :
New
Transport Package :
Packing
Specification :
400*265*100mm
Origin :
China
Production Capacity :
50000
Description
Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
800G OSFP 112 SR4 Transceiver
800G OSFP 112 SR4
800G OSFP 112 SR4 Features
l Hot-pluggable OSFP 800G SR8 multimode transceiver
l Compliant with OSFP MSA Type2 flat top with dual MPO-12 connector l Compliant with CMIS Rev 5.0 and above revision
l Maximum power consumption17W
l Dual MPO-12 APC receptacles
l Up to 70m reach on OM3 and 100m on OM4
l Case operating temperature 0°C to 70°C
800G OSFP 112 SR4 Applications
l InfiniBand NDR
l 800G VR8 applications with FEC
l 8 x 100GbE breakout application
800G OSFP 112 SR4 Description
800G OSFP SR8 Transceiver CC-OSFP08SR8-12D OSFP transceiver modules are designed for use in 800 Gigabit Ethernet or InfiniBand links up to 100m multi-mode fiber. They are compliant with the OSFP MSA, IEEE P802.3db/D3.0 and IEEE P802.3ck .
Digital diagnostic functions are available via the I2C interface, as specified by the OSFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038
800G OSFP SR8 Transceiver
800G OSFP 112 SR4 Specification
Parameter
Symbol
Min
Max
Units
Storage Temperature
TS
-40
85
°C
Supply Voltage
VCC
0.5
3.6
V
Relative Humidity (non-condensing)
RH
5
95
%
Control Input Voltage
VI
-0.3
VCC+0.5
V

Company Profile

Company Introduction
Our company has more than10 years of experience, hasa large factory,and strong technical team support, accumu-lated aarge number of customers and expe-rience, can provide you with thelowest priceof products and the best quality service.The agency brands include Mellanox, Ruckus, Aruba, Extreme, etc., main products includes original brand new network switch, network card, wireless Access Point , wireless controller, cable etc.We have 10 million inventory for you tochoose, can provide a variety of types ofproducts, large quantities of supply.After ensuring the accurate arrival of yourgoods, provide customer service 24 hours consultation and technical support.With a professional sales and technical team, we have earned ourselves a high reputation among the world market.

Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
CUSTOMER REVIEW /corporate strength
Ø We have many products of Mellanox, Extreme, Aruba etc. Such as witches, network cards, cables, modules, wireless APs as so on.
Ø We are an elite agent of Mellanox .
Ø We are the largest agents of Extreme in China.
Ø Our main office is in Beijing, and our branches are in Nanjing, Shanghai, Guangzhou,Shenzheng and Hong Kong. We have warehouses in Beijing, Nanjing, and Hong Kong, with a large amount of original and new product inventory, which can achieve fast delivery in multiple locations.
Ø Our products are mainly applicated for PC (high performance computing), cloud computing, data centers, enterprise computing, storage, and has software development capabilities.
Ø We had provided intelligent transformation total solution for many customers in the fields of artificial intelligence, supercomputing, government and enterprise research institutes, universities, the Internet, and other industries. Such as BerryGenomics, FedEx, Tsinghua Research Institute etc.

Authorization and Certification

Our company cooperate with many famous brands have, company is nvidia elite agents, sales Mellanox related network products, at the same time also is Extreme, the Ruckus, Aruba, H3C and other gold medal agent has many brands of engineer's qualification certificate, to provide reliable technical support.

Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
Packing & Delivery
Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
Ethernet 800G OSFP 112 SR4 CC-OSFP08SR8-12D Optical Transceiver Module
Our network products are all packaged in brand-new original sealed boxes. They are unopened after leaving the factory. The quality is guaranteed. On the packaging, we use high-density EPE pearl cotton, anti-static air cushion films and other professional cushioning materials, combined with custom hard cardboard boxes for reinforcement. They provide comprehensive protection against shock, moisture and static electricity. We offer various shipping methods such as air express, international dedicated lines, and sea transportation for delivery, covering 100+ countries and regions worldwide. The logistics information can be checked in real time. The products enjoy a one-year warranty. Damaged during transportation can be returned or exchanged for free. You can make your purchase with peace of mind.
FAQ
Q1: What can you buy from us?
A: Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, AccessPoint, etc.

Q2: How about the delivery date?
A: It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.

Q3: What's yourwarranty terms?
A: We supply 12 months warranty time.

Q4: How about the Shipping Method?
A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.

Q5: Can I get some samples?
A: Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.

Q6: What are your core strengths?
A: First-hand supply, Original and new products with the favorable price and perfect after-sales service
Q7: Price questions
A: The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.
