Specifications
MOQ :
1pcs
Price :
Negotiate
Brand Name :
H3C
Model Number :
LSCM2MPUS06AS8
Payment Terms :
T/T
Supply Ability :
Supply by project/batch
Delivery Time :
Based on inventory
Packaging Details :
outer box
Model NO. :
LSCM2MPUS06AS8
Transmission Rate :
10/100/1000Mbps
Ports :
24
Flash :
4GB
Transport Package :
Carton
Specification :
45mm× 399mm× 355mm
Trademark :
H3C
Origin :
China
Description

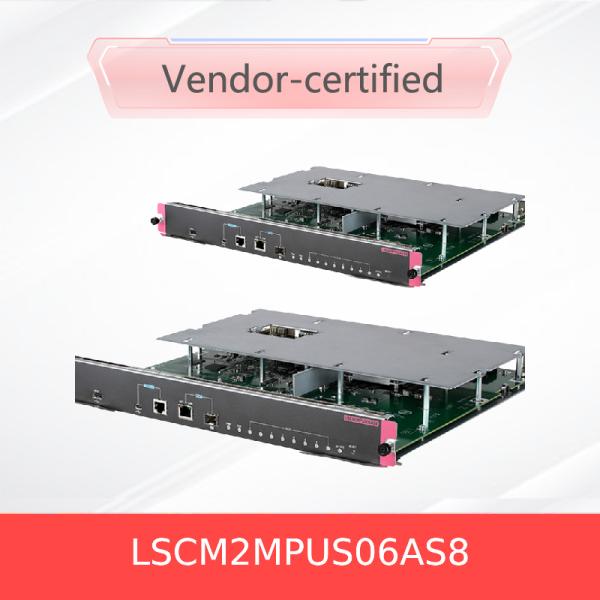

Main Control Switch Module - LSCM2MPUS06AS8
1. Board Identification

The upper right corner of the front panel is marked with silkscreen LSCM2MPUS06AS8 to identify this board.

2 Board Introduction
Attributes Specifications
Flash 4GB
BootROM 4MB*2
NVRAM 1MB
SDRAM 2GB
Size(H*W*D) 45mm*399mm*355mm
Board Power Consumption 23W～31W
Interface Type and Number
  • 1 Console port
  • 1 USB Console port
  • 2 network management ports (1 RJ-45 port and 1 SFP port)
  • 1 primary USB port
Interface Transfer Rate
  • Console port: 9600bps–115200bps (9600bps by default)
  • USB console port: ≤115200bit/s, 9600bit/s by default
  • Network management port (RJ-45): 10/100/1000 Mbps, half-duplex/full-duplex
  • Network management port (SFP): 1000 Mbps
Optional cables and maximum transmission distances
  • Console port: Asynchronous EIA/TIA-232 cable, transmission distance ≤ 15 m
  • USB console port: USB-AB cable, transmission distance ≤ 10 m
  • Network management port (RJ-45): Category 5 or higher twisted pair cable, transmission distance 100 m
Compatible host types S7006X

Note:

  • The USB port does not support the use of a USB extension cable.
  • For information about compatible optical modules and cables, refer to the "H3C S7000X Series Switch Board and Optical Module Compatibility Table."
  • For information about compatible host software versions, refer to the software release notes.

The 10/100/1000M electrical interface uses an RJ-45 connector.

Figure 1 RJ-45 Connector Diagram

Reliable H3c Lscm2mpus06as8 Control Switching Module for Efficient Operations
Pin Number 10Base-T/100Base-TX/1000Base-T
Signal Function
1 MX_0+ Transmitting/Receiving Data
2 MX_0- Transmitting/Receiving Data
3 MX_1+ Transmitting/Receiving Data
4 MX_2+ Transmitting/Receiving Data
5 MX_2- Transmitting/Receiving Data
6 MX_1- Transmitting/Receiving Data
7 MX_3+ Transmitting/Receiving Data
8 MX_3- Transmitting/Receiving Data

Our company has more than10 years of experience, hasa large factory,and strong technical team support, accumu-lated aarge number of customers and expe-rience, can provide you with thelowest priceof products and the best quality service.The agency brands include Mellanox, Ruckus, Aruba, Extreme, etc., main products includes original brand new network switch, network card, wireless Access Point , wireless controller, cable etc.We have 10 million inventory for you tochoose, can provide a variety of types ofproducts, large quantities of supply.After ensuring the accurate arrival of yourgoods, provide customer service 24 hours consultation and technical support.With a professional sales and technical team, we have earned ourselves a high reputation among the world market.
