H3c Lsqm1AC300 Core Mainnet Modular Switch AC Power Module Carton 12.5A
H3c Lsqm1AC300 Core Mainnet Modular Switch AC Power Module Carton 12.5A
H3c Lsqm1AC300 Core Mainnet Modular Switch AC Power Module Carton 12.5A
H3c Lsqm1AC300 Core Mainnet Modular Switch AC Power Module Carton 12.5A
H3c Lsqm1AC300 Core Mainnet Modular Switch AC Power Module Carton 12.5A
H3c Lsqm1AC300 Core Mainnet Modular Switch AC Power Module Carton 12.5A
H3c Lsqm1AC300 Core Mainnet Modular Switch AC Power Module Carton 12.5A
H3c Lsqm1AC300 Core Mainnet Modular Switch AC Power Module Carton 12.5A
H3c Lsqm1AC300 Core Mainnet Modular Switch AC Power Module Carton 12.5A
H3c Lsqm1AC300 Core Mainnet Modular Switch AC Power Module Carton 12.5A
H3c Lsqm1AC300 Core Mainnet Modular Switch AC Power Module Carton 12.5A
H3c Lsqm1AC300 Core Mainnet Modular Switch AC Power Module Carton 12.5A
Specifications
MOQ :
1pcs
Price :
Negotiate
Brand Name :
H3C
Model Number :
LSQM1AC300
Payment Terms :
T/T
Supply Ability :
Supply by project/batch
Delivery Time :
Based on inventory
Packaging Details :
outer box
Model NO. :
LSQM1AC300
Transmission Rate :
150W
Ports :
≦8
Maximum Output Current :
12.5A
Transport Package :
Carton
Specification :
150mm× 25mm× 40mm
Trademark :
H3C
Origin :
China
Description

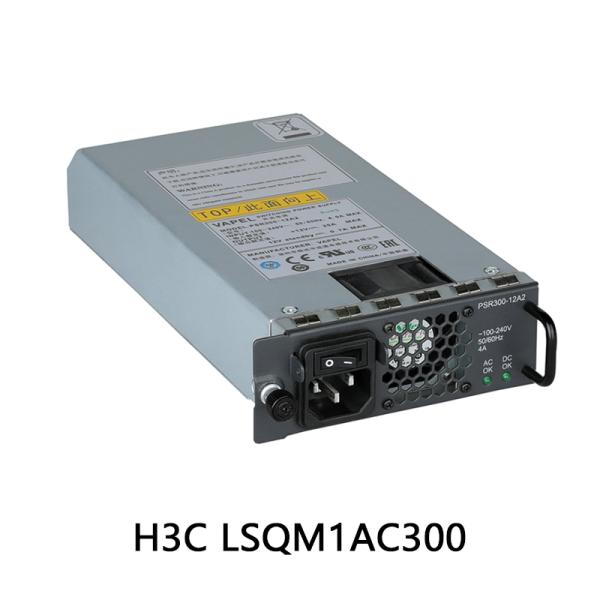

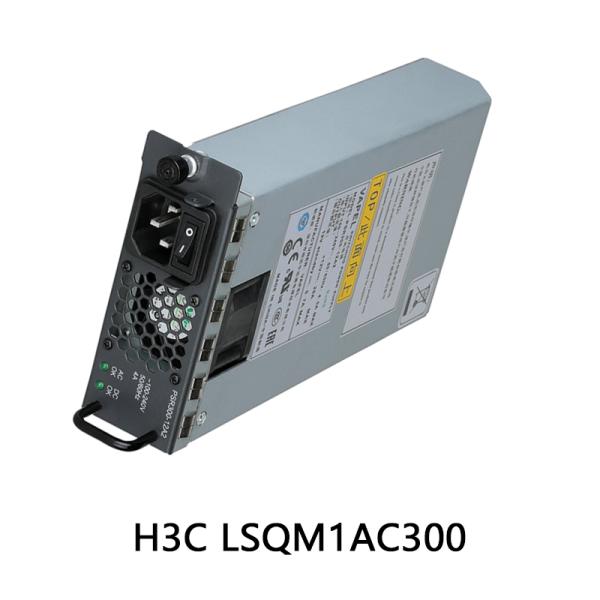

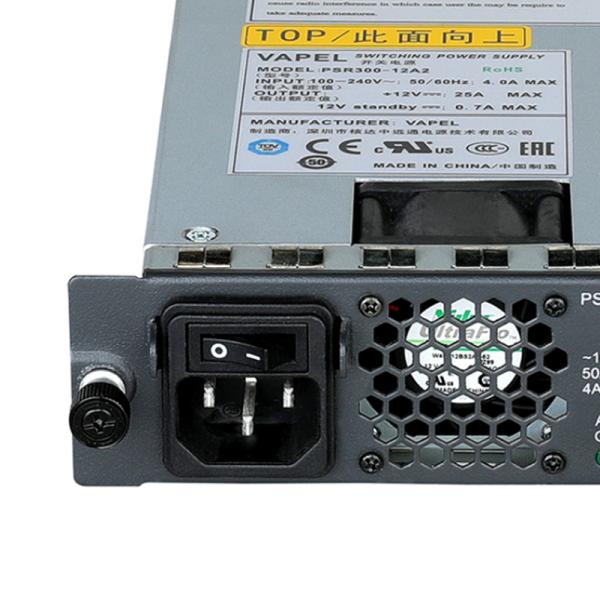

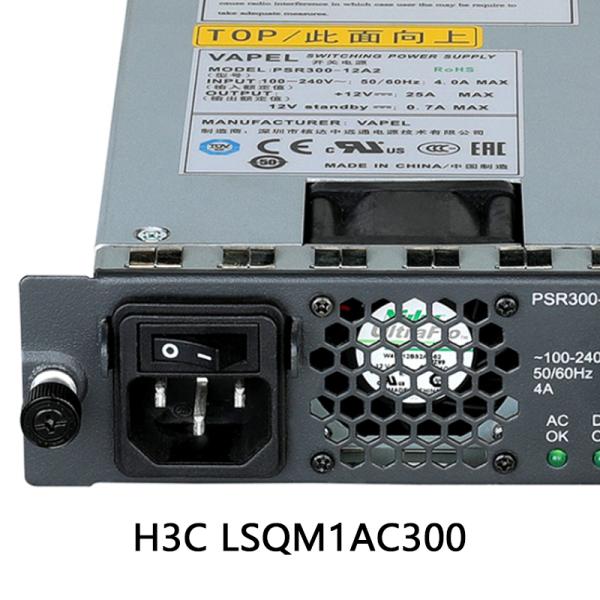

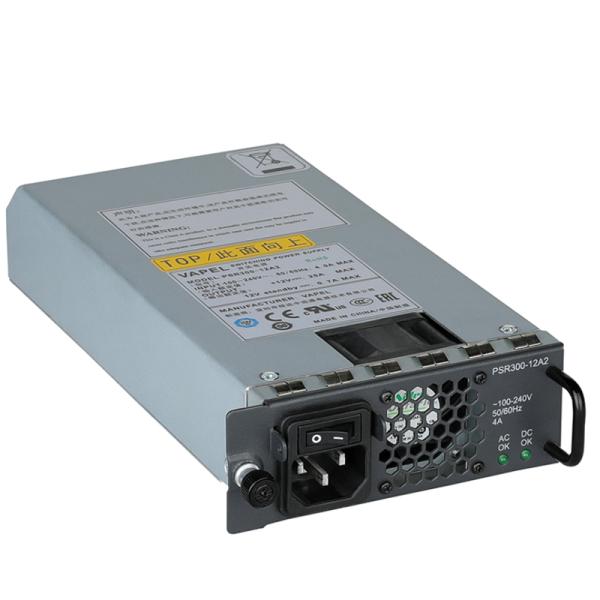

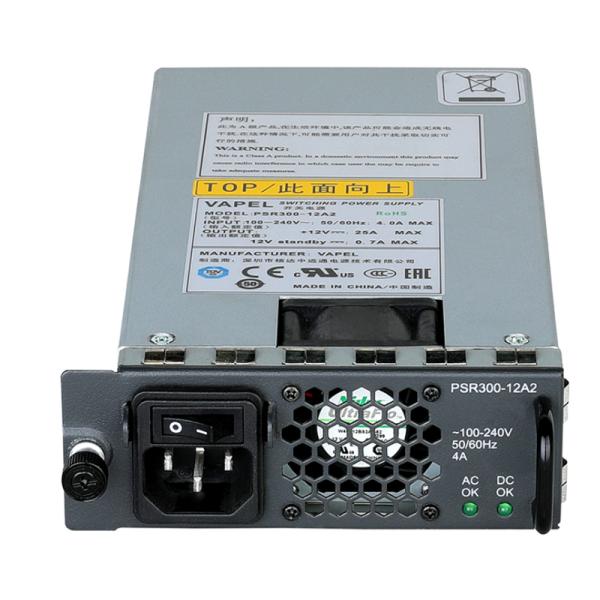

LSQM1AC300 is an AC power module with AC input and DC output. Both the AC power module and the DC power module can convert the input voltage into the 12V voltage required by the powered device, and its maximum output power can reach 150W.LSQM1AC300
The installation and removal of the power supply includes: the installation and removal of the power module, and the installation and removal of the power cord. The power supply installation, power-off and power-off disassembly process should be carried out in strict accordance with the sequence of Figure 2-1 and Figure 2-2, otherwise the equipment may be damaged or personal injury may be caused.LSQM1AC300
Figure 2-1 Powering on a power supply.LSQM1AC300
To avoid damage to the power module and equipment and personal injury, follow these precautions:
· When installing and removing the power module, please pay attention to wearing an anti-static wrist and ensure that the anti-static wrist is in good contact with the skin.LSQM1AC300
· Before installing the power module, please confirm whether the working voltage of the external power supply system is consistent with the standard voltage of the power supply module, and whether the output voltage of the power module is consistent with the voltage required by the powered equipment, so as to avoid damage to the power supply module and the powered equipment.LSQM1AC300
· Do not touch any exposed wires and terminal parts to avoid causing harm to the human body.LSQM1AC300
· Please do not place the power supply module in a wet place, and do not allow liquids to enter the power supply module.
· In order to prevent damage to the power module, please do not open the power module shell at will, and hand over the power module to maintenance personnel for maintenance when the internal circuits or components of the power module fail.
H3c Lsqm1AC300 Core Mainnet Modular Switch AC Power Module Carton 12.5A
Light
state
meaning
analyse
Power module status indicator
green
The power module is working fine
-
red
The power module is working abnormally
The possible causes of failure are as follows:

·Power module alarm (the power module alarms when the input is under-voltage, output short circuit, output over-current, output over-voltage, temperature is too high, etc., and enters the protection state)

·The power module fan is faulty
extinguish
The input of the power module is abnormal
The possible causes of failure are as follows:

·The power module is faulty

·The power cord is faulty

·The external power supply system is de-energized

·The power module switch is not turned on

With over a decade of industry experience, we operate a large-scale production facility backed by a robust and skilled technical team. Over the years, we have successfully served a vast and diverse clientele, building a wealth of expertise that enables us to deliver high-quality products at highly competitive prices. Our comprehensive service ensures you receive exceptional value and support.

We are an authorized distributor for leading global brands, including Mellanox, Ruckus, Aruba, and Extreme. Our core product offerings comprise genuine, brand-new networking equipment such as switches, network interface cards, wireless access points, wireless controllers, and cables.

To meet diverse project demands, we maintain an extensive inventory of over 10 million units. This allows us to offer a wide selection of products and guarantee reliable, large-volume supply. We are committed to ensuring your orders arrive accurately and on time. Following delivery, our dedicated customer service and technical support team is available 24/7 to provide consultation and assistance.

Our commitment to excellence, driven by a professional sales and technical team, has established our high reputation and trust in the global market.
