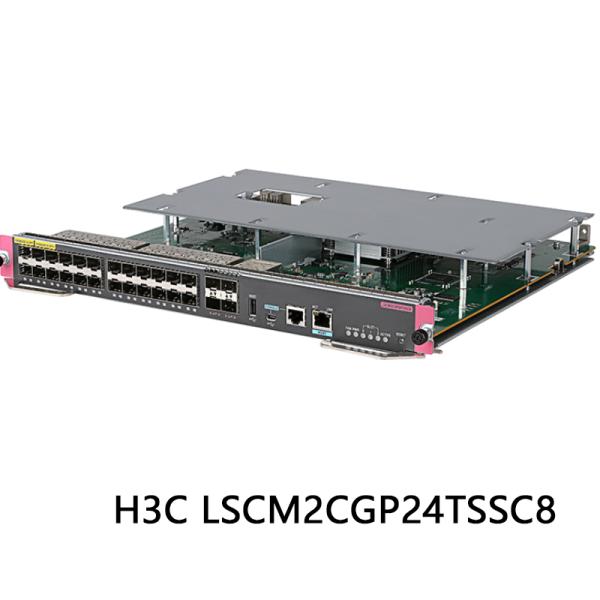

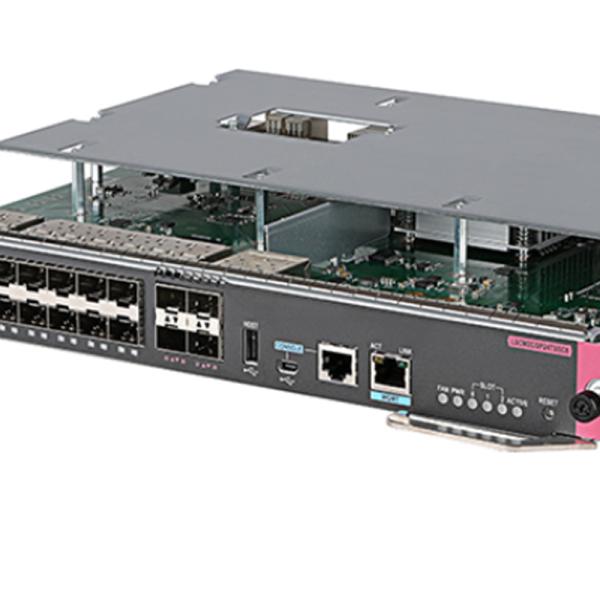

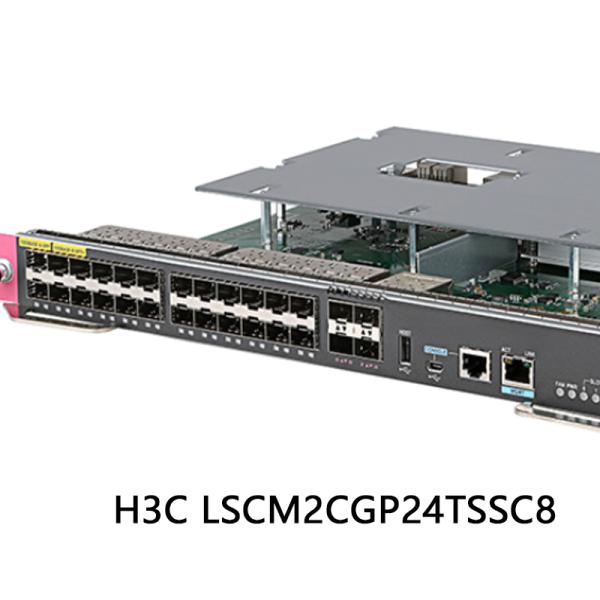

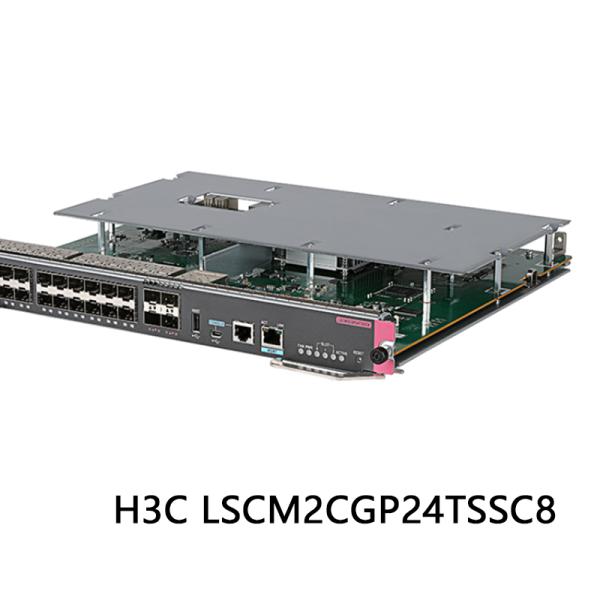

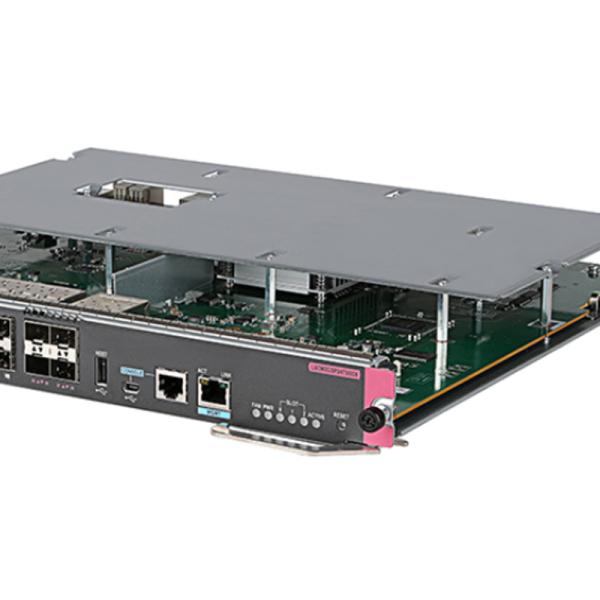

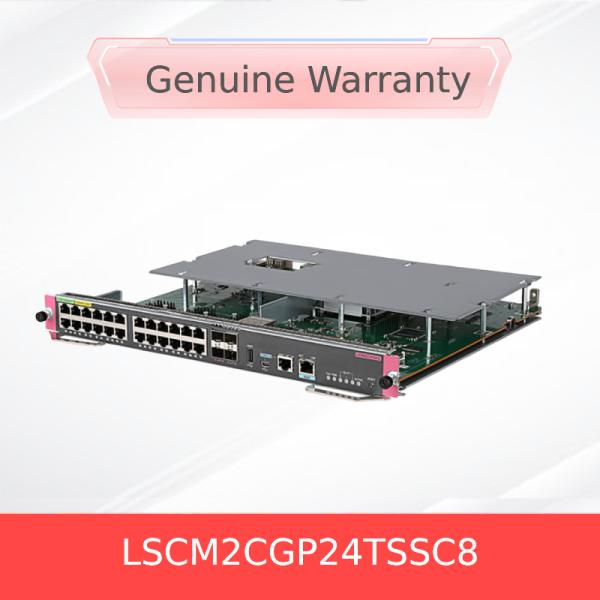

H3c LSCM2CGP24TSSC8 Optical Interface Switching Routing Engine Module
H3c LSCM2CGP24TSSC8 Optical Interface Switching Routing Engine Module
H3c LSCM2CGP24TSSC8 Optical Interface Switching Routing Engine Module
H3c LSCM2CGP24TSSC8 Optical Interface Switching Routing Engine Module
H3c LSCM2CGP24TSSC8 Optical Interface Switching Routing Engine Module
H3c LSCM2CGP24TSSC8 Optical Interface Switching Routing Engine Module
H3c LSCM2CGP24TSSC8 Optical Interface Switching Routing Engine Module
H3c LSCM2CGP24TSSC8 Optical Interface Switching Routing Engine Module
H3c LSCM2CGP24TSSC8 Optical Interface Switching Routing Engine Module
H3c LSCM2CGP24TSSC8 Optical Interface Switching Routing Engine Module
H3c LSCM2CGP24TSSC8 Optical Interface Switching Routing Engine Module
H3c LSCM2CGP24TSSC8 Optical Interface Switching Routing Engine Module
Specifications
MOQ :
1pcs
Price :
Negotiate
Brand Name :
H3C
Model Number :
LSCM2CGP24TSSC8
Payment Terms :
T/T
Supply Ability :
Supply by project/batch
Delivery Time :
Based on inventory
Packaging Details :
outer box
Model NO. :
LSCM2CGP24TSSC8
Transmission Rate :
10/100/1000Mbps
Ports :
24
Flash :
4GB
Transport Package :
Carton
Specification :
40mm× 399mm× 355mm
Trademark :
H3C
Origin :
China
Description

LSCM2CGP24TSSC8 is not just a simple service board, but a main control board module that integrates both the switching engine and the routing engine. Such modules usually have the following characteristics:

  • More powerful functions: In addition to providing ports, they may also take on core tasks such as system control and route computation.
  • Critical placement: Typically installed in the main control slot of a switch.
  • Higher price: Due to their core functionality, they are usually more expensive than ordinary service boards.

Notes before purchase and use:

  • Compatibility is key: Before purchasing, be sure to confirm that the module is compatible with your existing or planned H3C switch models (e.g., S7500X-M-G, S7503X-M-G series), and check the required minimum software version.
  • Optical modules sold separately: SFP and SFP+ optical interfaces require corresponding optical modules or cables to be purchased separately before they can be used.
Product Specifications
attribute specification
Flash 4GB
BootROM 4MB*2
NVRAM 1MB
SDRAM 2GB
Veneer size (H×W×D). 40mm×399mm×355mm
Power consumption of the board 23W~45W
The type and number of interfaces ·1consoleport

·1xUSB Consoleport

·1network management port

·1mainUSBport

·4SFP+interfaces

·24SFPinterfaces
Interface transmission rate ·Consoleport:9600bps~115200bps(default9600bps)

·USB Consoleinterface:115200 bit/s≤,9600 bit/sby default

·Network management port:10/100/1000Mbps, half-duplex/full-duplex

·SFP+interface:10Gbit/s,1 Gbit/s,100 Mbit/s

·SFPinterface:1 Gbit/sand100 Mbit/s
Cable and maximum transmission distance are available ·Consoleport: asynchronousEIA/TIA-232cable, transmission distance≤15m

·USB Consoleinterface:USB-ABcable, transmission distance ≤10m

·Network management port:Category5ormore twisted pair cable, transmission distance5m

·SFP+interface:SFP+optical transceiver andSFPoptical transceiver

·SFPinterface: SFPoptical module
The host type that the board is compatible with S7003X
