High Sealing Bentonite GCL Liner for Landfill Containment Waterproofing and Waste Isolation
High Sealing Bentonite GCL Liner for Landfill Containment Waterproofing and Waste Isolation
High Sealing Bentonite GCL Liner for Landfill Containment Waterproofing and Waste Isolation
High Sealing Bentonite GCL Liner for Landfill Containment Waterproofing and Waste Isolation
High Sealing Bentonite GCL Liner for Landfill Containment Waterproofing and Waste Isolation
High Sealing Bentonite GCL Liner for Landfill Containment Waterproofing and Waste Isolation
Specifications
Model :
GCL NP
Packaging Details :
Woven fabric packaging
Structure :
Needle Punched Geotextile Layers
Function :
Sealing Waterproof Isolation
MOQ :
1000pcs
Mass per Unit :
≥4800 g m2
Supply Ability :
9999999㎡/MONTH
Application :
Landfill Waste Containment
Material :
Sodium Bentonite Composite
Brand Name :
YPEP
Product Name :
Geosynthetic Clay Liner
Delivery Time :
5 days
Payment Terms :
T/T
Place of Origin :
China
Color :
Natural Grey
Description
Product Description

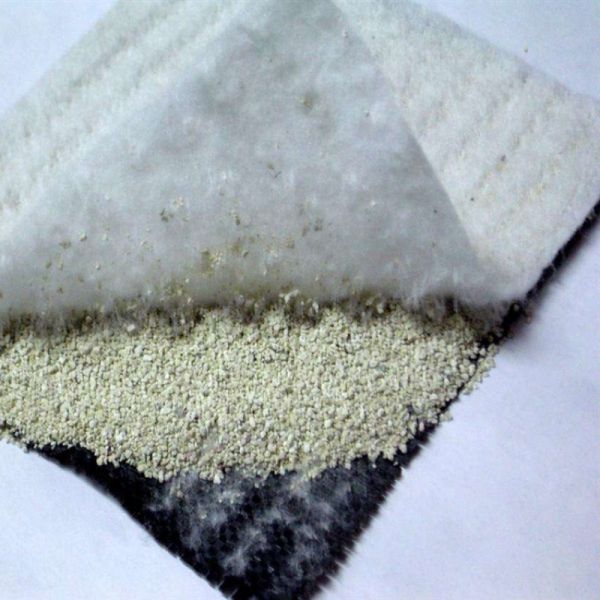

This high sealing bentonite GCL liner is engineered for landfill containment systems where reliable leakage prevention is essential. It integrates sodium bentonite between two geotextile layers to form a durable composite barrier.

Upon hydration, the bentonite swells and fills voids within the structure, creating a dense and impermeable layer that blocks liquid migration. This sealing mechanism ensures long term protection even under pressure and harsh environmental conditions.

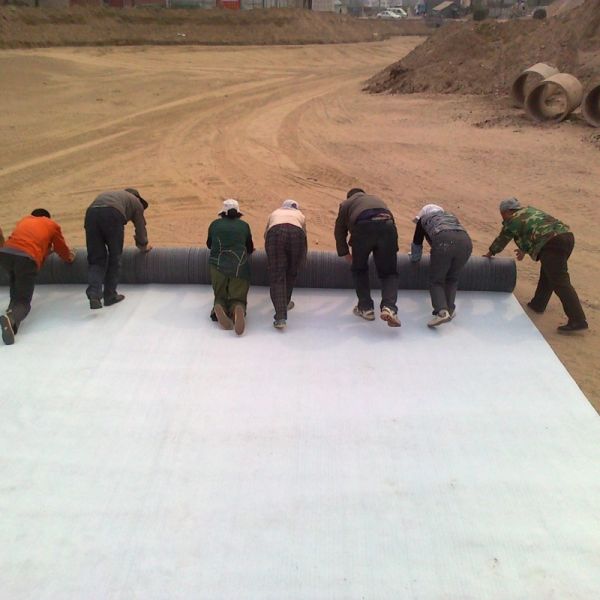

Compared with compacted clay liners, this product offers uniform quality, faster installation, and reduced construction costs. It also provides flexibility during installation, allowing it to conform to uneven landfill surfaces.

It is widely used in municipal waste landfills, hazardous waste containment, and environmental engineering projects requiring strict anti seepage performance.

Technical Data
Category Parameter Value
Product Type GCL
Material Bentonite Sodium Based
Structure Cover Layer Nonwoven 200 g m2
Structure Carrier Layer Woven 110 g m2
Mass Total ≥4800 g m2
Mechanical Tensile Strength ≥600 N 100mm
Mechanical Peel Strength ≥40 N 100mm
Hydraulic Permeability ≤5.0*10⁻¹¹ m s
Chemical Swell Index ≥24
Chemical Fluid Loss ≤18
High Sealing Bentonite GCL Liner for Landfill Containment Waterproofing and Waste IsolationHigh Sealing Bentonite GCL Liner for Landfill Containment Waterproofing and Waste Isolation
Why Choose Us
  • High swelling bentonite ensures strong sealing
  • Consistent product quality for landfill projects
  • Easy installation reduces labor cost
  • Factory direct pricing
  • Proven performance in environmental engineering
FAQ

Q: How does it prevent leakage
A: The bentonite swells and forms a dense sealing layer.

Q: Is it suitable for hazardous waste
A: Yes it provides reliable containment protection.
