High Density Geo Synthetic Clay Liner Landfill Waterproofing Geomembrana Hdpe 30 Mils
High Density Geo Synthetic Clay Liner Landfill Waterproofing Geomembrana Hdpe 30 Mils
High Density Geo Synthetic Clay Liner Landfill Waterproofing Geomembrana Hdpe 30 Mils
High Density Geo Synthetic Clay Liner Landfill Waterproofing Geomembrana Hdpe 30 Mils
High Density Geo Synthetic Clay Liner Landfill Waterproofing Geomembrana Hdpe 30 Mils
High Density Geo Synthetic Clay Liner Landfill Waterproofing Geomembrana Hdpe 30 Mils
High Density Geo Synthetic Clay Liner Landfill Waterproofing Geomembrana Hdpe 30 Mils
High Density Geo Synthetic Clay Liner Landfill Waterproofing Geomembrana Hdpe 30 Mils
Specifications
Model :
GCL NP
Thickness :
Standard Industrial Grade
Color :
Natural Grey
Packaging Details :
Woven fabric packaging
Mass per Unit :
≥4800 g m2
Brand Name :
YPEP
Bentonite Type :
Sodium Based
Delivery Time :
5 days
Payment Terms :
T/T
Material :
Sodium Bentonite with Geotextile Layers
Place of Origin :
China
MOQ :
1000pcs
Supply Ability :
9999999㎡/MONTH
Structure :
Nonwoven and Woven Composite
Product Name :
Geosynthetic Clay Liner
Description
High Density Bentonite Geosynthetic Clay Liner for Landfill Waterproofing and Anti Seepage Protection
Product Description

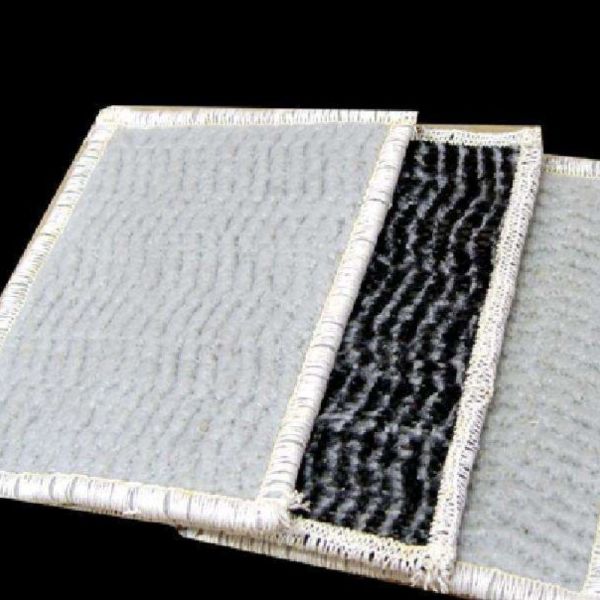

Geosynthetic clay liner is a highly effective anti seepage material widely used in environmental engineering and containment systems. It is manufactured by sandwiching a layer of high swelling sodium bentonite between a nonwoven geotextile and a woven carrier fabric through a needle punching process.

When exposed to water, the bentonite layer absorbs moisture and swells, forming a dense and impermeable barrier that effectively prevents liquid migration. This natural sealing mechanism allows the product to maintain long term waterproof performance even under pressure.

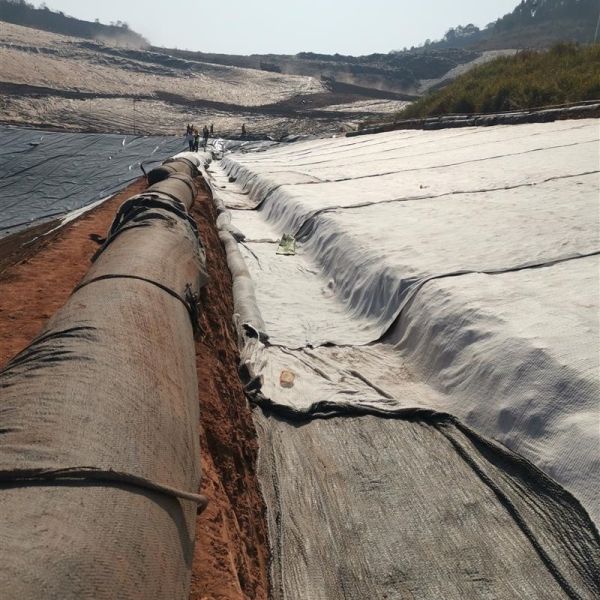

Compared with traditional clay liners, this material offers consistent quality, faster installation, and superior sealing performance. It is especially suitable for landfill lining systems, where environmental protection and leakage prevention are critical.

Its flexibility allows it to adapt to uneven surfaces, ensuring complete coverage without cracking or separation. At the same time, the composite structure provides mechanical strength and durability, making it suitable for demanding engineering conditions.

Technical Data
Category Parameter Value
Product Model GCL NP
Material Bentonite Type Sodium Bentonite
Structure Cover Layer Nonwoven 200 g m2
Structure Carrier Layer Woven 110 g m2
Bentonite Mass per Unit ≥4500 g m2
GCL Total Mass ≥4800 g m2
Mechanical Tensile Strength ≥600 N 100mm
Mechanical Elongation ≥10 percent
Mechanical Peel Strength ≥40 N 100mm
Hydraulic Permeability ≤5.0*10⁻¹¹ m s
Chemical Swell Index ≥24 ml 2g
Chemical Fluid Loss ≤18 ml
High Density Geo Synthetic Clay Liner Landfill Waterproofing Geomembrana Hdpe 30 MilsHigh Density Geo Synthetic Clay Liner Landfill Waterproofing Geomembrana Hdpe 30 MilsHigh Density Geo Synthetic Clay Liner Landfill Waterproofing Geomembrana Hdpe 30 Mils
Why Choose Us
  • Factory direct production with stable supply
  • Strict quality control for every batch
  • High swelling bentonite for reliable sealing
  • Fast installation saving labor and time
  • Export experience for environmental projects
FAQ
Q: What is the main function of GCL
A: It provides long term waterproofing and anti seepage protection.
Q: Is it suitable for landfill projects
A: Yes it is widely used in landfill lining systems.
